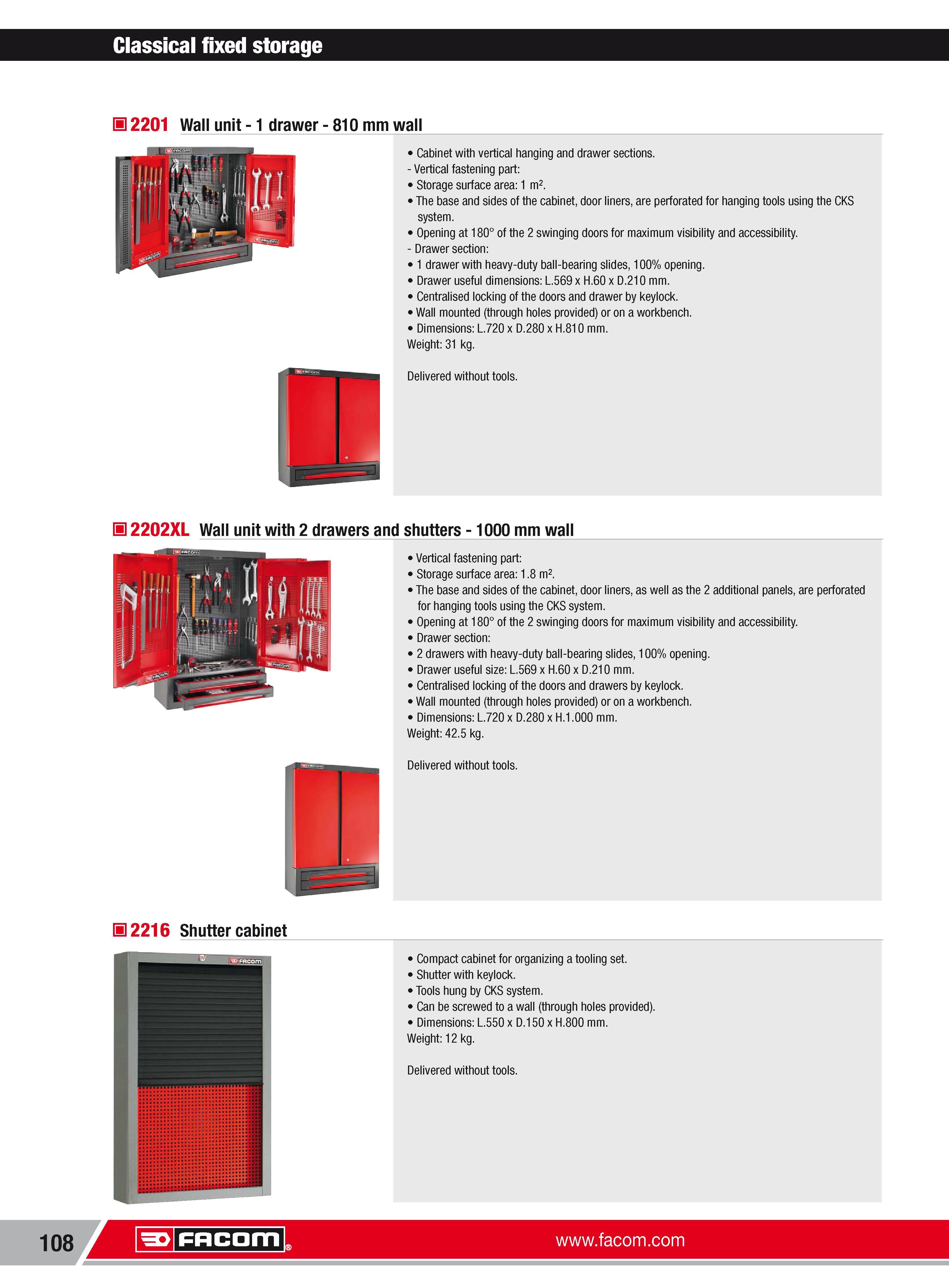

Classical fixed storage H 2201 Wall unit 1 drawer 810 mm wall Cabinet with vertical hanging and drawer sections. Vertical fastening part Storage surface area 1 m2. The base and sides of the cabinet door liners are perforated for hanging tools using the CKS system. Opening at 180 of the 2 swinging doors for maximum visibility and accessibility. Drawersection 1 drawerwith heavy-duty ball-bearing slides 100% opening. Drawer useful dimensions L.569 x H.60 x D.210 mm. Centralised locking of the doors and drawer by keylock. Wall mounted (through holes provided) or on a workbench. Dimensions L.720 x D.280 x H.810 mm. Weight 31 kg. Delivered without tools. H 2202XL Wall unit with 2 drawers and shutters 1000 mm wall Vertical fastening part Storage surface area 1.8 m2. The base and sides of the cabinet door liners as well as the 2 additional panels are perforated for hanging tools using the CKS system. Opening at 180 of the 2 swinging doors for maximum visibility and accessibility. Drawer section 2 drawers with heavy-duty ball-bearing slides 100% opening. Drawer useful size L.569 x H.60 x D.210 mm. Centralised locking of the doors and drawers by keylock. Wall mounted (through holes provided) or on a workbench. Dimensions L.720 x D.280 x H.1.000 mm. Weight 42.5 kg. Delivered without tools. H2216 Shutter cabinet 108 Compact cabinet for organizing a tooling set. Shutter with keylock. Tools hung by CKS system. Can be screwed to a wall (through holes provided). Dimensions L.550 xD.150x H.800 mm. Weight 12 kg. Delivered without tools. Facom
