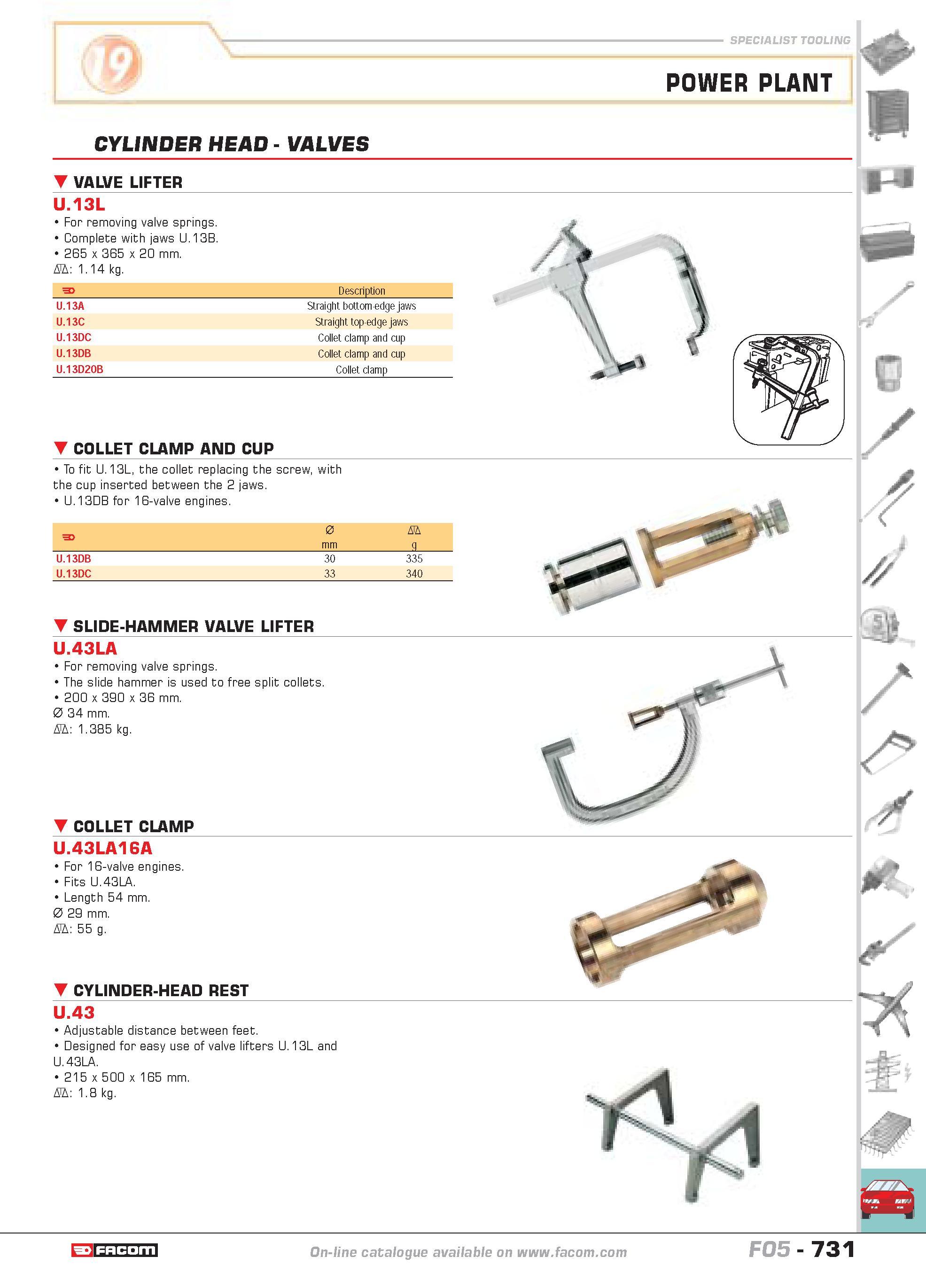

SPECIALIST TOOLING POWER PLANT CYLINDER HEAD VALVES VALVE LIFTER U.13L For removing valve springs. Complete with jaws U.13B. 265 x 365 x 20 mm. D 1.14 kg. F Description U.13A Straight bottom-edge jaws U.13C Straight top-edge jaws U.13DC Collet clamp and cup U.13DB Collet clamp and cup U.13D20B Collet clamp COLLET CLAMP AND CUP To fit U.13L the collet replacing the screw with the cup inserted between the 2 jaws. U.13DB for 16-valve engines. F 0 D mm g U.13DB 30 335 U.13DC 33 340 SLIDE-HAMMER VALVE LIFTER U.43LA For removing valve springs. The slide hammer is used to free split collets. 200 x 390 x 36 mm. 0 34 mm. D 1.385 kg. COLLET CLAMP U.43LA16A For 16-valve engines. Fits U.43LA Length 54 mm. 0 29 mm. D 55 g. CYLINDER-HEAD REST U.43 Adjustable distance between feet. Designed for easy use of valve lifters U.13L and U.43LA. 215 x 500 x 165 mm. D 1.8 kg. catalogue FACOM F05 731
