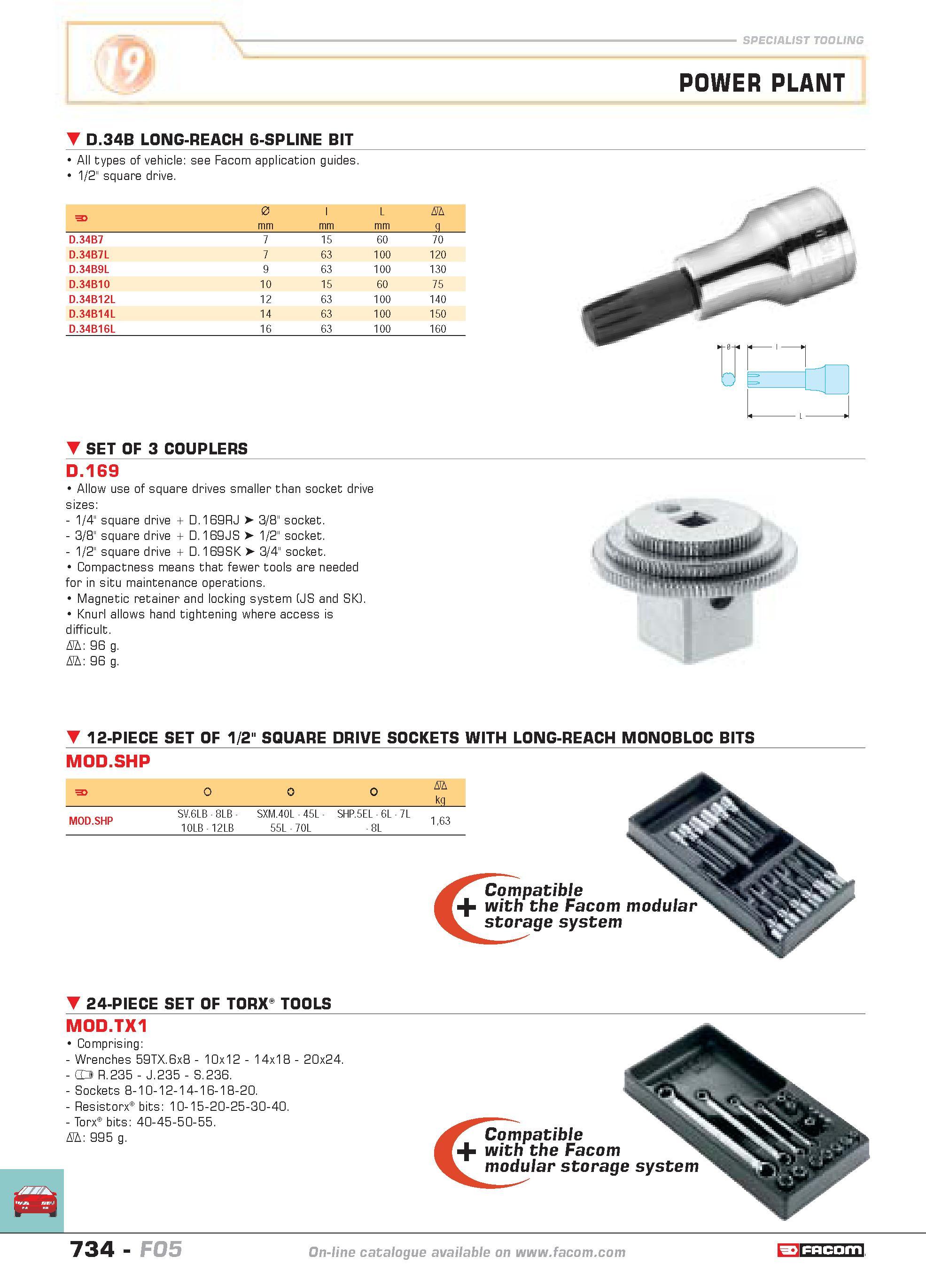

SPECIALIST TOOLING D.34B LONG-REACH 6-SPLINE BIT POWER PLANT All types of vehicle see Facom application guides. 1/2" square drive. F 0 mm I mm L mm D g D.34B7 7 15 60 70 D.34B7L 7 63 100 120 D.34B9L 9 63 100 130 D.34B10 10 15 60 75 D.34B12L 12 63 100 140 D.34B14L 14 63 100 150 D.34B16L 16 63 100 160 SET OF 3 COUPLERS D.169 Allow use of square drives smaller than socket drive sizes 1/4" square drive D.169RJ Q 3/8" socket. 3/8" square drive D.169JS Q 1/2" socket. 1/2" square drive D.169SK Q 3/4" socket. Compactness means that fewer tools are needed for in situ maintenance operations. Magnetic retainer and locking system (JS and SK). Knurl allows hand tightening where access is difficult. D 96 g. D 96 g. 12-PIECE SET OF 1/2" SQUARE DRIVE SOCKETS WITH LONG-REACH MONOBLOC BITS MOD.SHP 24-PIECE SET OF TORX TOOLS MOD.TX1 Comprising Wrenches 59TX.6x8 10x12 14x18 20x24. J R.235 J.235 S.236. Sockets 8-10-12-14-16-18-20. Resistorx bits 10-15-20-25-30-40. Torx bits 40-45-50-55. D 995 g. Compatible with the Facom modular storage system 734 F05 catalogue catalogue FACOM F05
