725 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.728

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 728 0725 ENG Lab2u

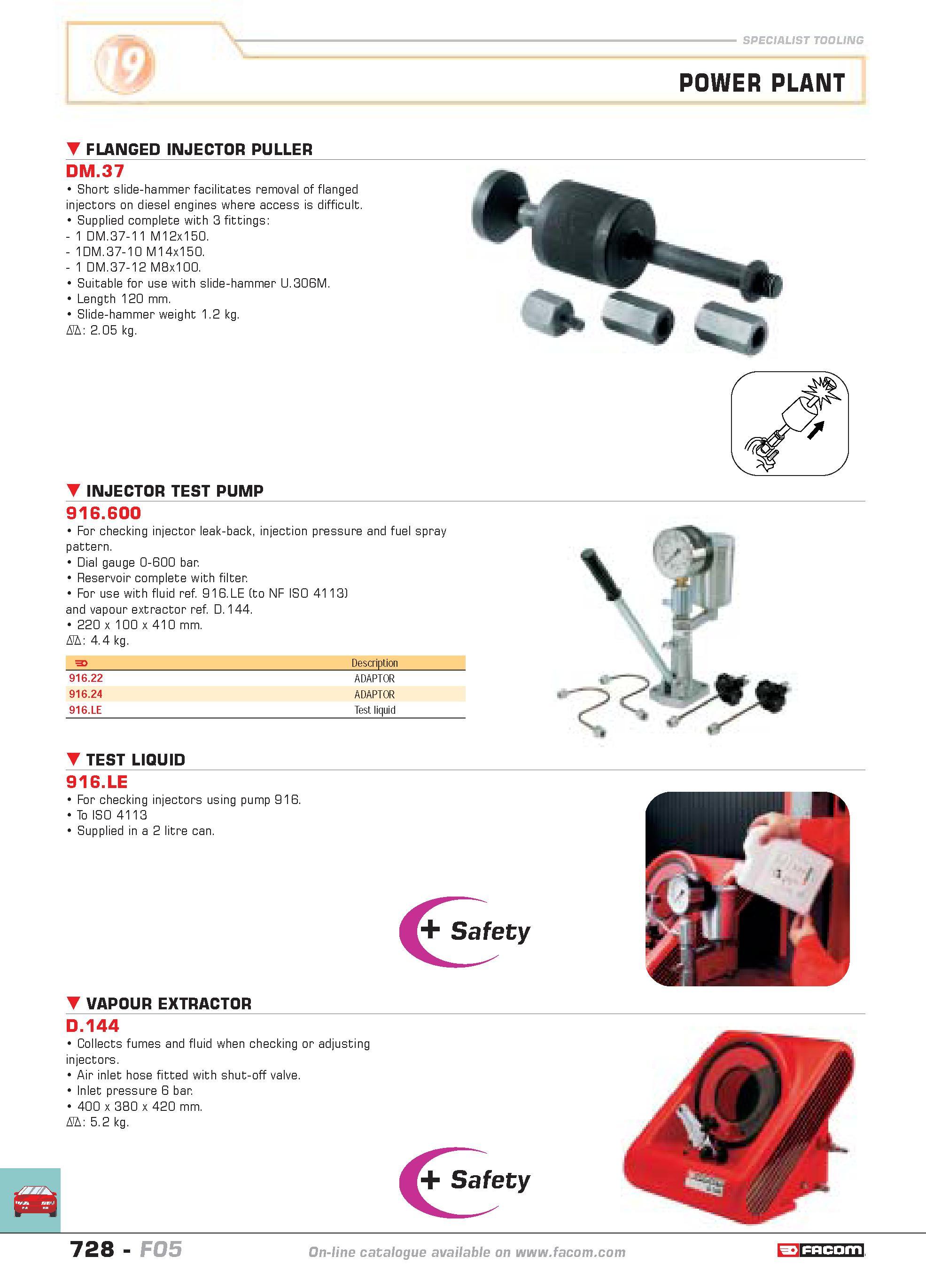

SPECIALIST TOOLING POWER PLANT FLANGED INJECTOR PuLLER DM.37 Short slide-hammer facilitates removal of flanged injectors on diesel engines where access is difficult. Supplied complete with 3 fittings 1 DM.37-11 M12x150. 1DM.37-10 M14x150. 1 DM.37-12 M8x100. Suitable for use with slide-hammer U.306M. Length 120 mm. Slide-hammer weight 1.2 kg. D 2.05 kg. INJECTOR TEST PuMP 916.600 For checking injector leak-back injection pressure and fuel spray pattern. Dial gauge 0-600 bar. Reservoir complete with filter. For use with fluid ref. 916.LE (to NF ISO 4113 and vapour extractor ref. D.144. 220 x 100 x 410 mm. D 4.4 kg. F Description 916.22 ADAPTOR 916.24 ADAPTOR 916.LE Test liquid TEST LIQUID 916.LE For checking injectors using pump 916. To ISO 4113 Supplied in a 2 litre can. Safety VAPOuR EXTRACTOR D.144 Collects fumes and fluid when checking or adjusting injectors. Air inlet hose fitted with shut-off valve. Inlet pressure 6 bar 400 x 380 x 420 mm. D 5.2 kg. Safety 728 catalogue FACOM F05
