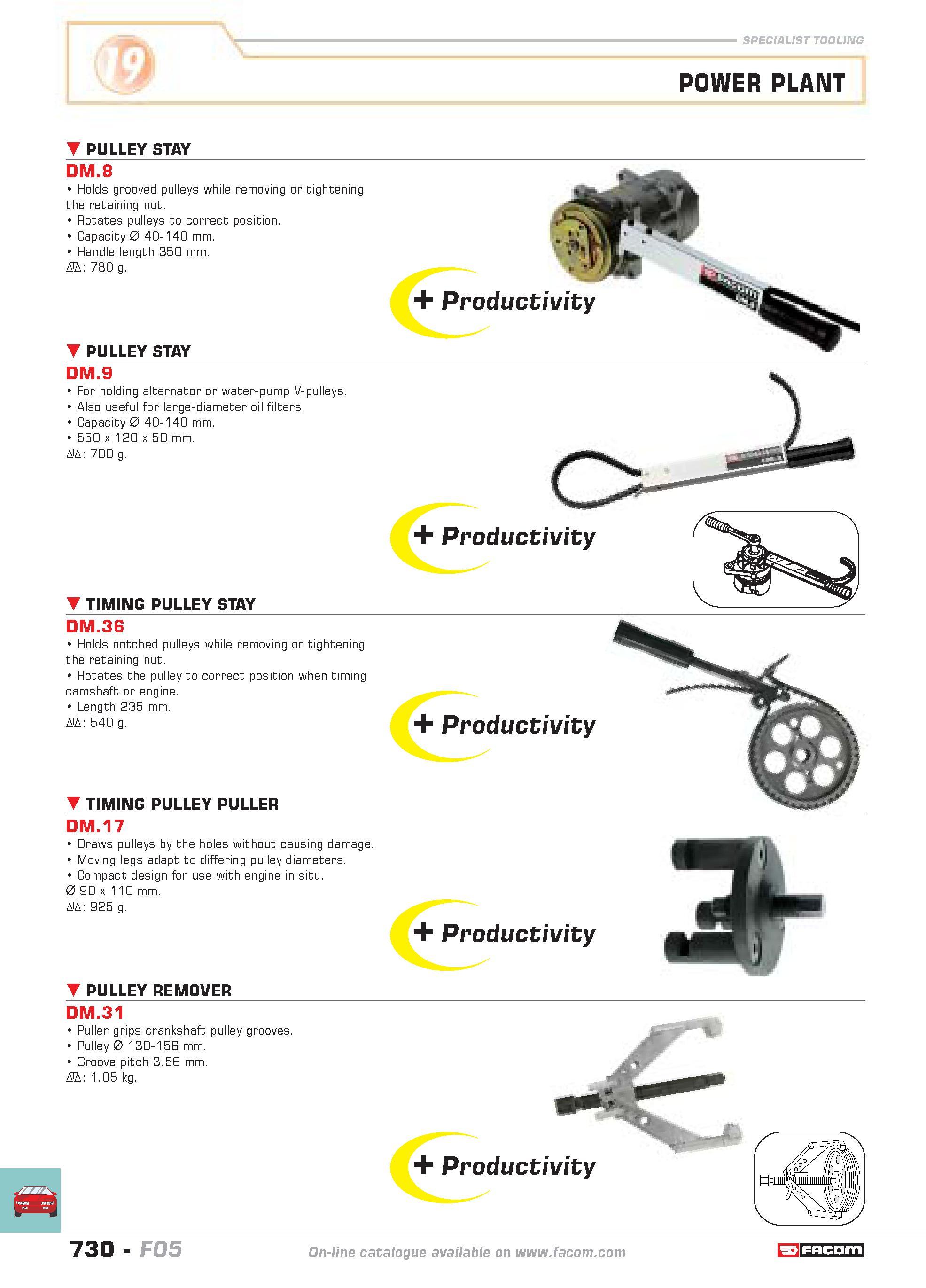

SPECIALIST TOOLING POWER PLANT PULLEY STAY DM.8 Holds grooved pulleys while removing or tightening the retaining nut. Rotates pulleys to correct position. Capacity 0 40-140 mm. Handle length 350 mm. D 780 g. Productivity PULLEY STAY DM.9 For holding alternator or water-pump V-pulleys. Also useful for large-diameter oil filters. Capacity 0 40-140 mm. 550 x 120 x 50 mm. D 700 g. Productivity TIMING PULLEY STAY DM.36 Holds notched pulleys while removing or tightening the retaining nut. Rotates the pulley to correct position when timing camshaft or engine. Length 235 mm. D 540 g. TIMING PULLEY PULLER Productivity DM.17 Draws pulleys by the holes without causing damage. Moving legs adapt to differing pulley diameters. Compact design for use with engine in situ. 0 90 x 110 mm. D 925 g. PULLEY REMOVER Productivity DM.31 Puller grips crankshaft pulley grooves. Pulley 0 130-156 mm. Groove pitch 3.56 mm. D 1.05 kg. Productivity 730 catalogue FACOM F05
