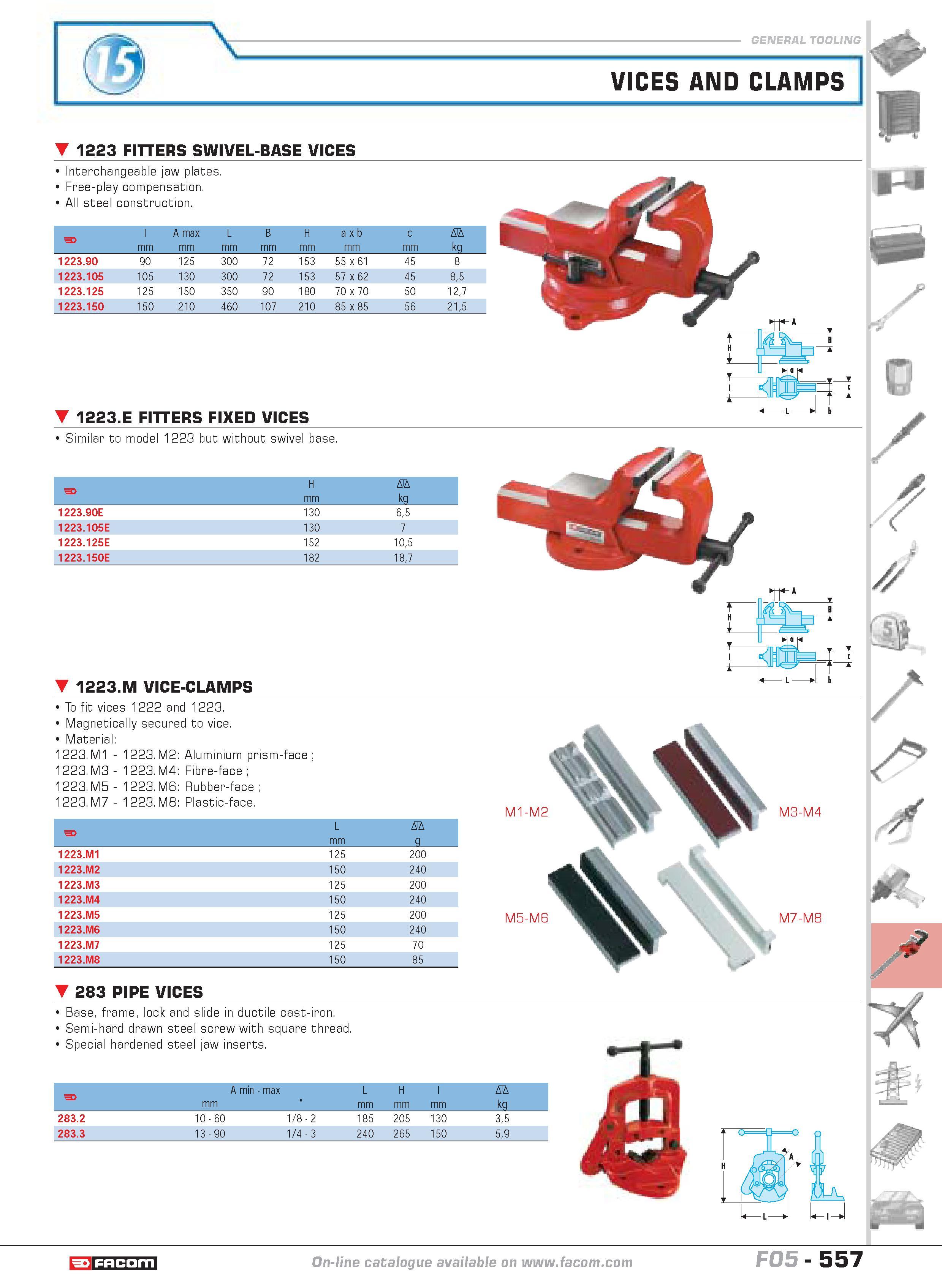

VICES AND CLAMPS 1223 FITTERS SWIVEL-BASE VICES Interchangeable jaw plates. Free-play compensation. All steel construction. F I mm A max mm L mm B mm H mm a x b mm c mm D kg 1223.90 90 125 300 72 153 55 x 61 45 8 1223.105 105 130 300 72 153 57 x 62 45 85 1223.125 125 150 350 90 180 70 x 70 50 127 1223.150 150 210 460 107 210 85 x 85 56 215 1223.E FITTERS FIXED VICES & H ffE '-i B T 1 oM-s o Similar to model 1223 but without swivel base. F H mm D kg 1223.90E 130 65 1223.105E 130 7 1223.125E 152 105 1223.150E 182 187 1223.M VICE-CLAMPS & H Ure I TT- jftbzi B T oM-i To fit vices 1222 and 1223. Magnetically secured to vice. Material 1223.M1 1223.M2 1223.M3 1223.M4 1223.M5 1223.M6 1223.M7 1223.M8 Aluminium prism-face Fibre-face Rubber-face Plastic-face. F L mm D g 1223.M1 125 200 1223.M2 150 240 1223.M3 125 200 1223.M4 150 240 1223.M5 125 200 1223.M6 150 240 1223.M7 125 70 1223.M8 150 85 283 PIPE VICES Base frame lock and slide in ductile cast- iron. Semi-hard drawn steel screw with square thread. M1-M2 M5-M6 M3-M4 M7-M8 Lj Special hardened steel jaw inserts. F A min max mm L mm H mm I mm D kg 283.2 10 60 1 8 2 185 205 130 35 283.3 13 90 1 4 3 240 265 150 59 catalogue FACOM F05 557
