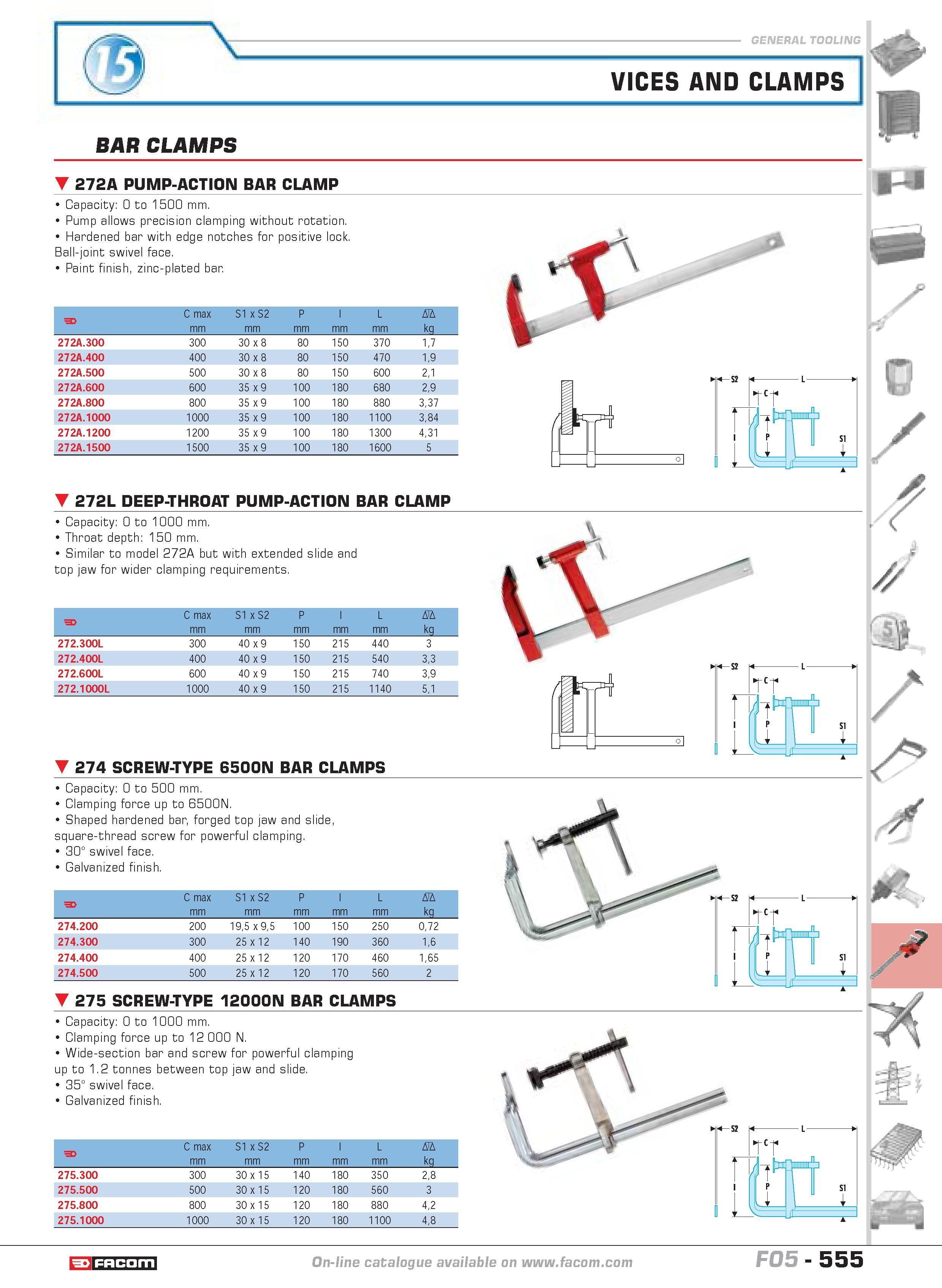

VICES AND CLAMPS BAR CLAMPS 272A PUMP-ACTION BAR CLAMP Capacity 0 to 1500 mm. Pump allows precision clamping without rotation. Hardened bar with edge notches for positive lock. Ball-joint swivel face. Paint finish zinc-plated bar. F C max mm S1 x S2 mm P mm I mm L mm D kg 272A.300 300 30 x 8 80 150 370 17 272A.400 400 30 x 8 80 150 470 19 272A.500 500 30 x 8 80 150 600 21 272A.600 600 35 x 9 100 180 680 29 272A.800 800 35 x 9 100 180 880 337 272A.1000 1000 35 x 9 100 180 1100 384 272A.1200 1200 35 x 9 100 180 1300 431 272A.1500 1500 35 x 9 100 180 1600 5 272L DEEP-THROAT PUMP-ACTION BAR CLAMP Capacity 0 to 1000 mm. Throat depth 150 mm. Similar to model 272A but with extended slide and top jaw for wider clamping requirements. F C max mm S1 x S2 mm P mm I mm L mm D kg 272.300L 300 40 x 9 150 215 440 3 272.400L 400 40 x 9 150 215 540 33 272.600L 600 40 x 9 150 215 740 39 272.1000L 1000 40 x 9 150 215 1140 51 274 SCREW-TYPE 6500N BAR CLAMPS Capacity 0 to 500 mm. Clamping force up to 6500N. Shaped hardened bar forged top jaw and slide square-thread screw for powerful clamping. 30 swivel face. Galvanized finish. F C max mm S1 x S2 mm P mm I mm L mm D kg 274.200 200 195 x 95 100 150 250 072 274.300 300 25 x 12 140 190 360 16 274.400 400 25 x 12 120 170 460 165 274.500 500 25 x 12 120 170 560 2 275 SCREW-TYPE 12000N BAR CLAMPS Capacity 0 to 1000 mm. Clamping force up to 12 000 N. Wide-section bar and screw for powerful clamping up to 1.2 tonnes between top jaw and slide. 35 swivel face. Galvanized finish. F C max mm S1 x S2 mm P mm I mm L mm D kg 275.300 300 30 x 15 140 180 350 28 275.500 500 30 x 15 120 180 560 3 275.800 800 30 x 15 120 180 880 42 275.1000 1000 30 x 15 120 180 1100 48 catalogue FACOM F05 555
