555 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.558

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 558 0555 ENG Lab2u

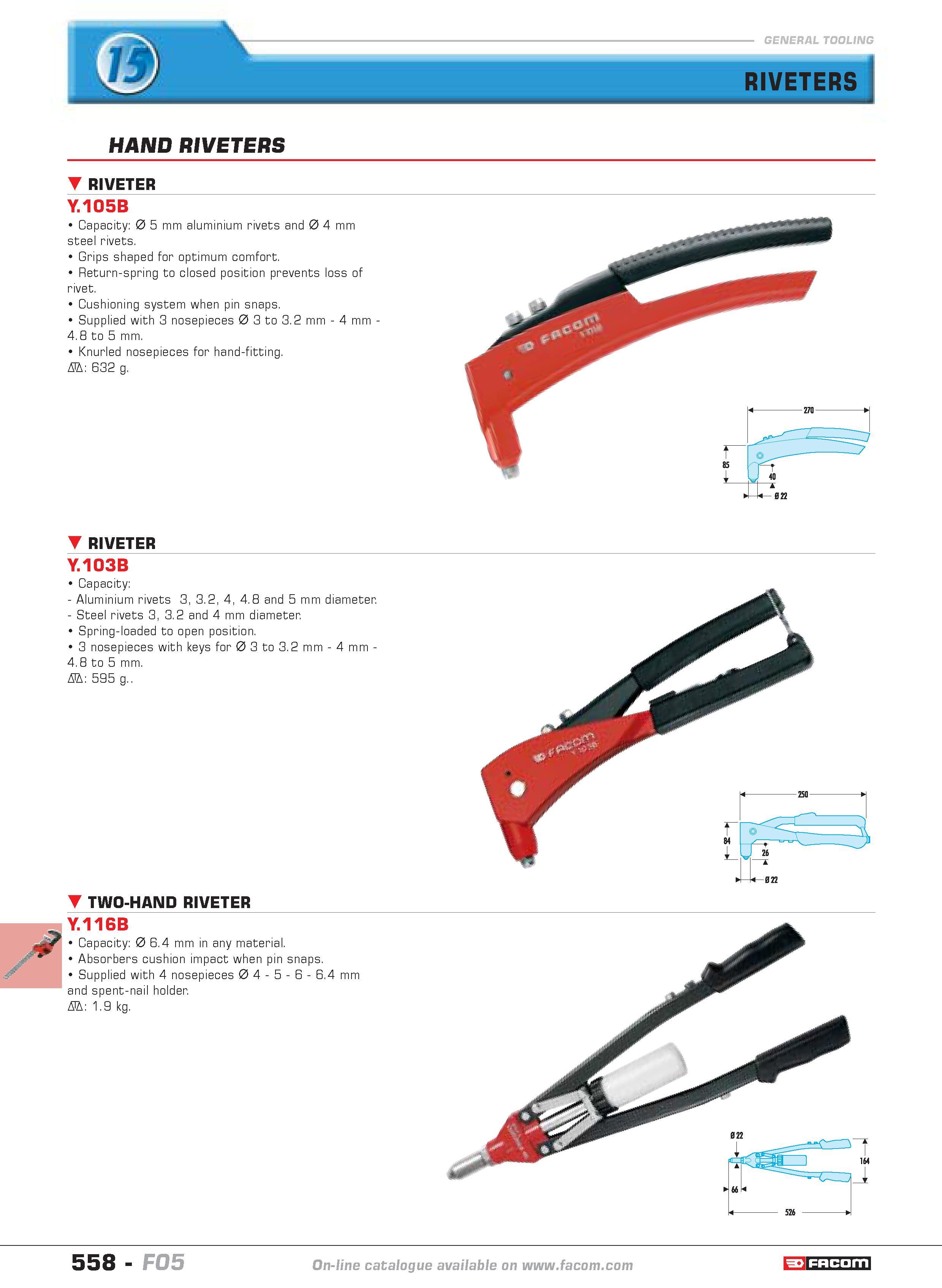

HAND RIVETERS RIVETER Y.105B Capacity 0 5 mm aluminium rivets and 0 4 mm steel rivets. Grips shaped for optimum comfort. Return-spring to closed position prevents loss of rivet. Cushioning system when pin snaps. Supplied with 3 nosepieces 0 3 to 3.2 mm 4 mm 4.8 to 5 mm. Knurled nosepieces for hand-fitting. D 632 g. RIVETER Y.103B Capacity Aluminium rivets 3 3.2 4 4.8 and 5 mm diameter. Steel rivets 3 3.2 and 4 mm diameter. Spring-loaded to open position. 3 nosepieces with keys for 0 3 to 3.2 mm 4 mm -4.8 to 5 mm. D 595 g.. 250 TWO-HAND RIVETER Y.116B Capacity 0 6.4 mm in any material. Absorbers cushion impact when pin snaps. Supplied with 4 nosepieces 0 4 5 6 6.4 mm and spent-nail holder. D 1.9 kg. J 558 catalogue FACOM F05
