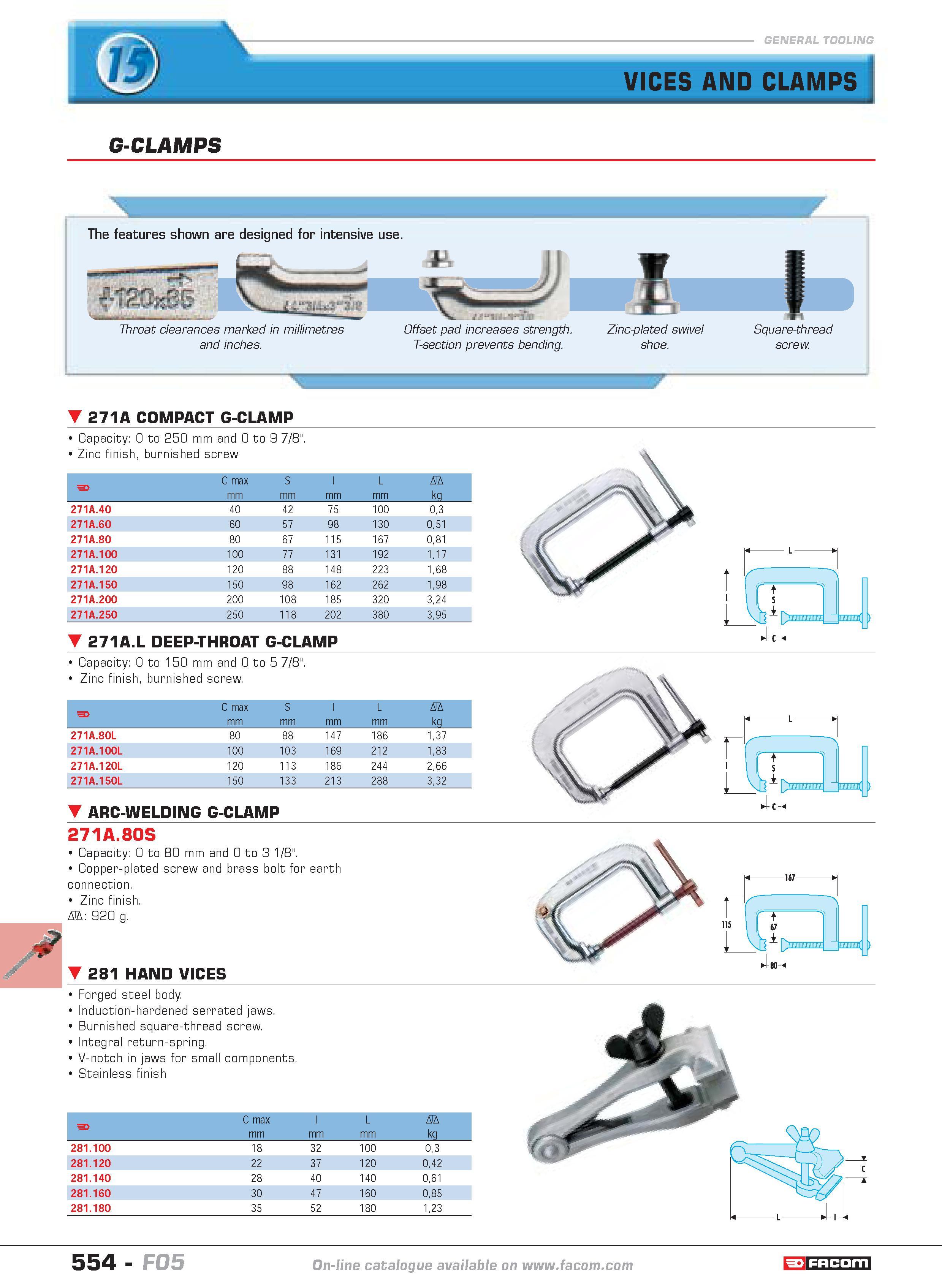

G-CLAMPS The features shown are designed for intensive use. T20nSS Throat clearances marked in millimetres and inches. Wuin.T"na Offset pad increases strength. T-section prevents bending. w. Zinc-plated swivel shoe. Square-thread screw. 271A COMPACT G-CLAMP Capacity 0 to 250 mm and 0 to 9 7 8". Zinc finish burnished screw F C max mm S mm I mm L mm D kg 271A.40 40 42 75 100 03 271A.60 60 57 98 130 051 271A.80 80 67 115 167 081 271A.100 100 77 131 192 117 271A.120 120 88 148 223 168 271A.150 150 98 162 262 198 271A.200 200 108 185 320 324 271A.250 250 118 202 380 395 271A.L DEEP-THROAT G-CLAMP Capacity 0 to 150 mm and 0 to 5 7 8". Zinc finish burnished screw. A ARC-WELDING G-CLAMP 271A.80S Capacity 0 to 80 mm and 0 to 3 1 8". Copper-plated screw and brass bolt for earth connection. Zinc finish. D 920 g. 281 HAND VICES Forged steel body Induction-hardened serrated jaws. Burnished square-thread screw. Integral return-spring. V-notch in jaws for small components. Stainless finish F C max mm I mm L mm D kg 281.100 18 32 100 03 281.120 22 37 120 042 281.140 28 40 140 061 281.160 30 47 160 085 281.180 35 52 180 123 554 catalogue FACOM F05
