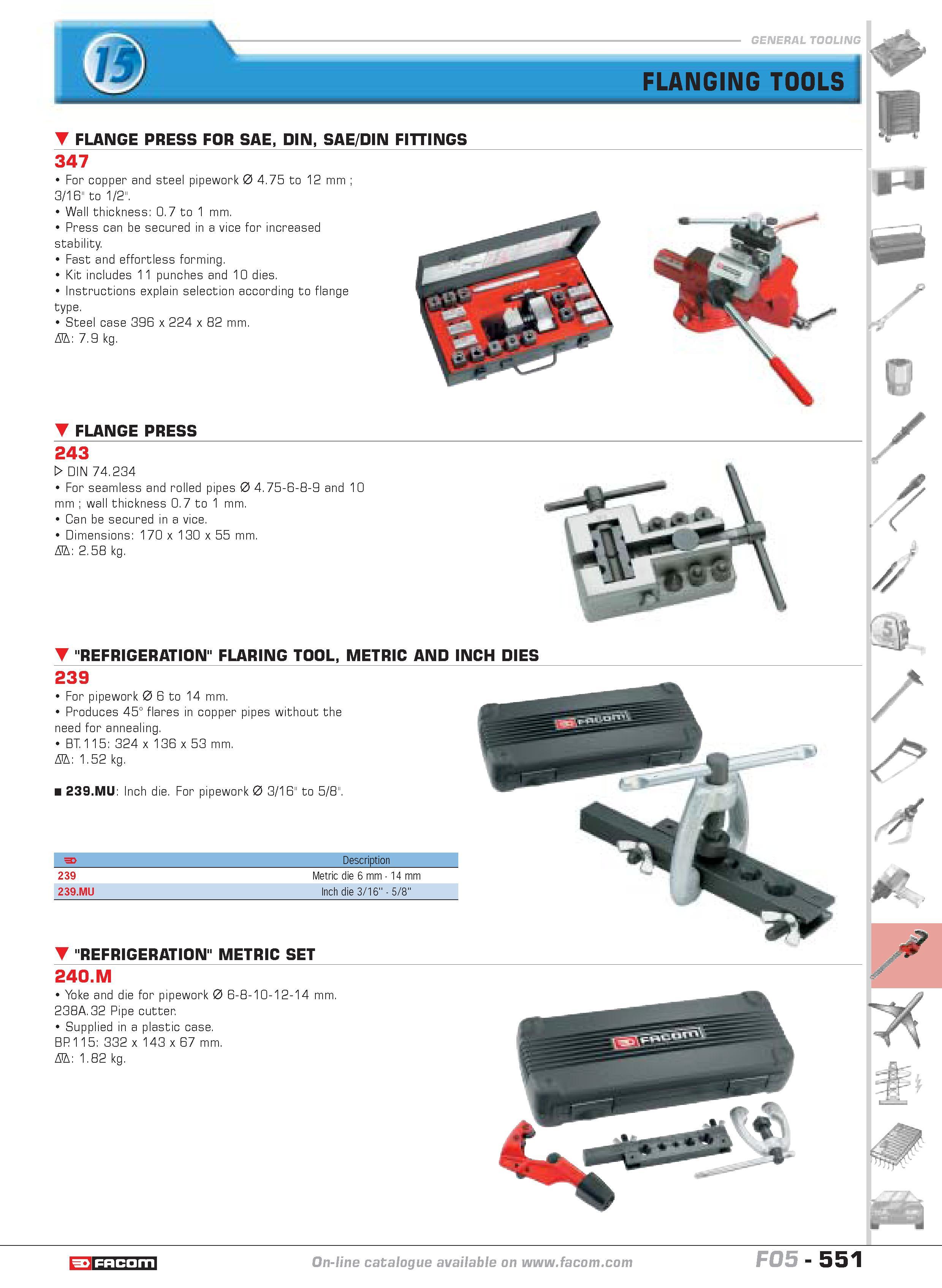

FLANGING TOOLS FLANGE PRESS FOR SAE DIN SAE DIN FITTINGS 347 For copper and steel pipework 0 4.75 to 12 mm 3 16" to 1 2". Wall thickness 0.7 to 1 mm. Press can be secured in a vice for increased stability Fast and effortless forming. Kit includes 11 punches and 10 dies. Instructions explain selection according to flange type. Steel case 396 x 224 x 82 mm. D 7.9 kg. FLANGE PRESS 243 W DIN 74.234 For seamless and rolled pipes 0 4.75-6-8-9 and 10 mm wall thickness 0.7 to 1 mm. Can be secured in a vice. Dimensions 170 x 130 x 55 mm. D 2.58 kg. "REFRIGERATION" FLARING TOOL METRIC AND INCH DIES 239 For pipework 0 6 to 14 mm. Produces 45 flares in copper pipes without the need for annealing. BT. 115 324 x 136 x 53 mm. D 1.52 kg. 239.MU Inch die. For pipework 0 3 16" to 5 8". F Description 239 Metric die 6 mm 14 mm 239.MU Inch die 3 16'' 5 8'' "REFRIGERATION" METRIC SET 240.M Yoke and die for pipework 0 6-8-10-12-14 mm. 238A.32 Pipe cutter Supplied in a plastic case. BP 115 332 x 143 x 67 mm. D 1.82 kg. catalogue FACOM F05 551
