467 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.470

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 470 0467 ENG Lab2u

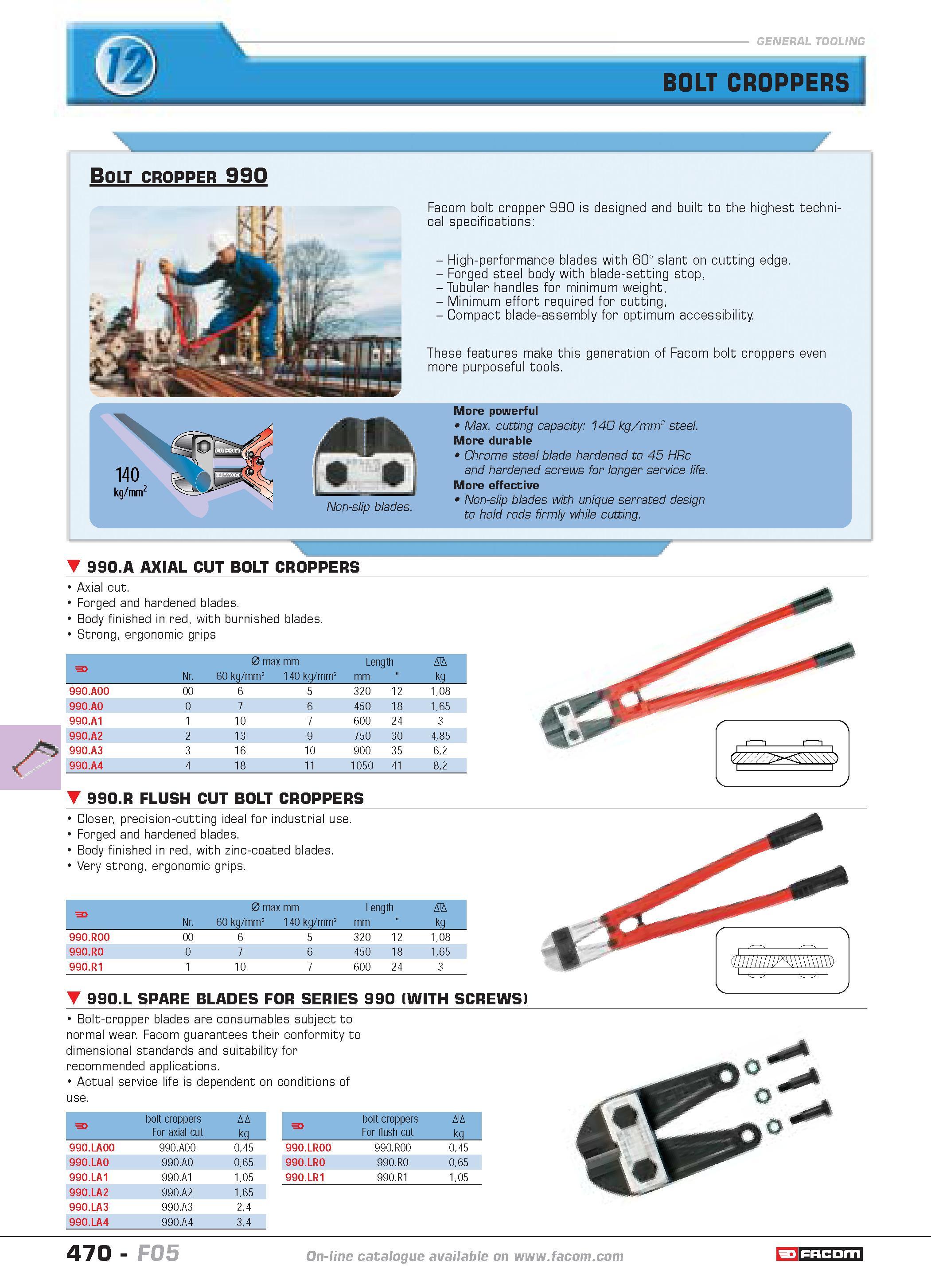

BOLT CROPPERS Bolt cropper 990 Facom bolt cropper 990 is designed and built to the highest technical specifications High-performance blades with 60 slant on cutting edge. Forged steel body with blade-setting stop Tubular handles for minimum weight Minimum effort required for cutting Compact blade-assembly for optimum accessibility. These features make this generation of Facom bolt croppers even more purposeful tools. 140 kg mm2 Non-slip blades. More powerful Max. cutting capacity 140 kg mm2 steel. More durable Chrome steel blade hardened to 45 HRc and hardened screws for longer service life. More effective Non-slip blades with unique serrated design to hold rods firmly while cutting. 990.A AXIAL CUT BOLT CROPPERS 1 Axial cut. 1 Forged and hardened blades. 1 Body finished in red with burnished blades. Strong ergonomic grips 0 max mm Length D Nr. 60 kg mm2 140 kg mmz mm kg 990.A00 00 6 5 320 12 108 990.A0 0 7 6 450 18 165 990.A1 1 10 7 600 24 3 990.A2 2 13 9 750 30 485 990.A3 3 16 10 900 35 62 990.A4 4 18 11 1050 41 82 990.R FLUSH CUT BOLT CROPPERS 1 Closer precision-cutting ideal for industrial use. 1 Forged and hardened blades. Body finished in red with zinc-coated blades. Very strong ergonomic grips. 0 max mm Length D Nr. 60 kg mmz 140 kg mmz mm kg 990.R00 00 6 5 320 12 108 990.R0 0 7 6 450 18 165 990.R1 1 10 7 600 24 3 990.L SPARE BLADES FOR SERIES 990 (WITH SCREWS) Bolt-cropper blades are consumables subject to normal wear. Facom guarantees their conformity to dimensional standards and suitability for recommended applications. Actual service life is dependent on conditions of use. 470 catalogue FACOM F05
