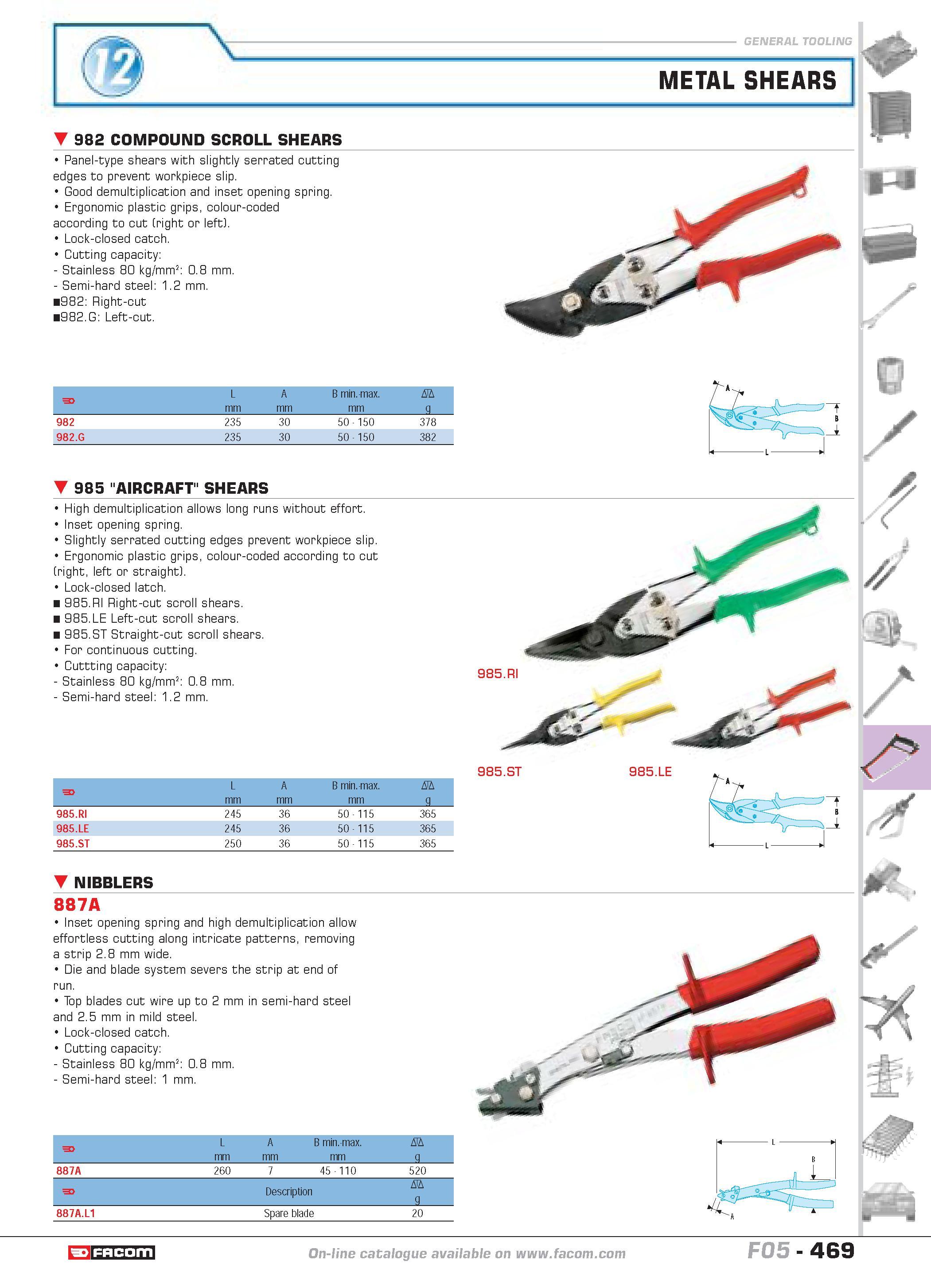

METAL SHEARS P 982 COMPOUND SCROLL SHEARS Panel-type shears with slightly serrated cutting edges to prevent workpiece slip. Good demultiplication and inset opening spring. Ergonomic plastic grips colour-coded according to cut (right or left). Lock-closed catch. Cutting capacity Stainless 80 kg mm2 0.8 mm. Semi-hard steel 1.2 mm. 982 Right-cut 982.G Left-cut. F L A B min.-max. D mm g 982 235 30 50 150 378 982.G 235 30 50 150 382 985 "AIRCRAFT" SHEARS High demultiplication allows long runs without effort. Inset opening spring. Slightly serrated cutting edges prevent workpiece slip. Ergonomic plastic grips colour-coded according to cut (right left or straight). Lock-closed latch. 985.RI Right-cut scroll shears. 985.LE Left-cut scroll shears. 985.ST Straight-cut scroll shears. For continuous cutting. Cuttting capacity Stainless 80 kg mm 2 0.8 mm. Semi-hard steel 1.2 mm. F L A B min.-max. D mm g 985.RI 245 36 50 115 365 985.LE 245 36 50 115 365 985.ST 250 36 50 115 365 NIBBLERS 887A Inset opening spring and high demultiplication allow effortless cutting along intricate patterns removing a strip 2.8 mm wide. Die and blade system severs the strip at end of run. Top blades cut wire up to 2 mm in semi-hard steel and 2.5 mm in mild steel. Lock-closed catch. Cutting capacity Stainless 80 kg mm 2 0.8 mm. Semi-hard steel 1 mm. F L mm A B min.-max. mm D g 887A 260 7 45 110 520 F Description D g 887A.L1 Spare blade 20 catalogue FACOM F05 469
