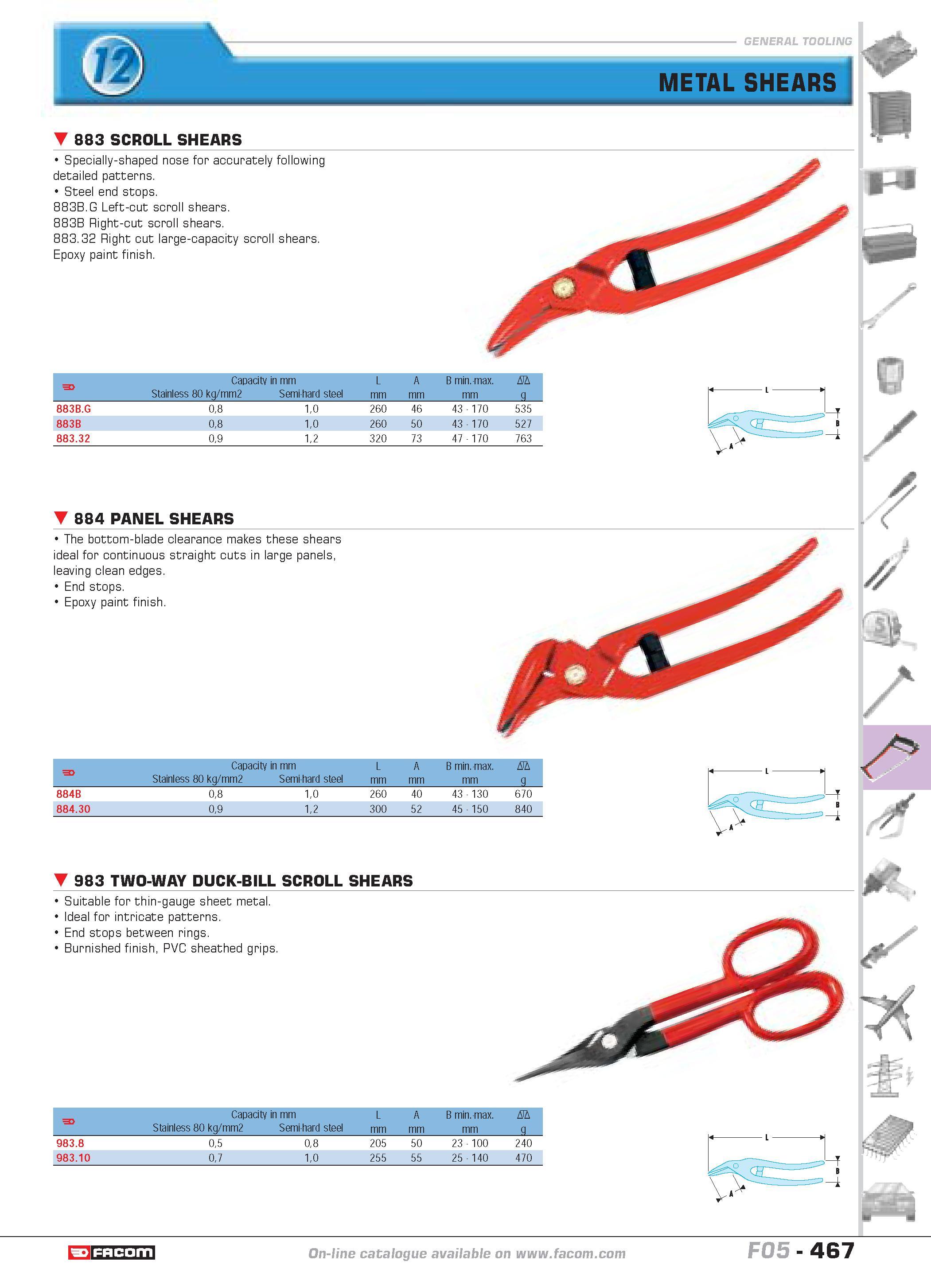

883 SCROLL SHEARS Specially-shaped nose for accurately following detailed patterns. Steel end stops. 883B.G Left-cut scroll shears. 883B Right-cut scroll shears. 883.32 Right cut large-capacity scroll shears. Epoxy paint finish. F Capacity in mm L A B min.-max. D Stainless 80 kg mm2 Semi-hard steel mm g 883B.G 08 10 260 46 43 170 535 883B 08 10 260 50 43 170 527 883.32 09 12 320 73 47 170 763 884 PANEL SHEARS The bottom-blade clearance makes these shears ideal for continuous straight cuts in large panels leaving clean edges. End stops. Epoxy paint finish. F Capacity in mm Stainless 80 kg mm2 Semi-hard steel L mm A mm B min.-max. mm D g 884B 08 10 260 40 43 130 670 884.30 09 12 300 52 45 150 840 983 TWO-WAY DUCK-BILL SCROLL SHEARS Suitable for thin-gauge sheet metal. Ideal for intricate patterns. End stops between rings. Burnished finish PVC sheathed grips. F Capacity in mm L A B min.-max. D Stainless 80 kg mm2 Semi-hard steel mm g 983.8 05 08 205 50 23 100 240 983.10 07 10 255 55 25 140 470 catalogue FACOM F05 467
