468 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.471

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 471 0468 ENG Lab2u

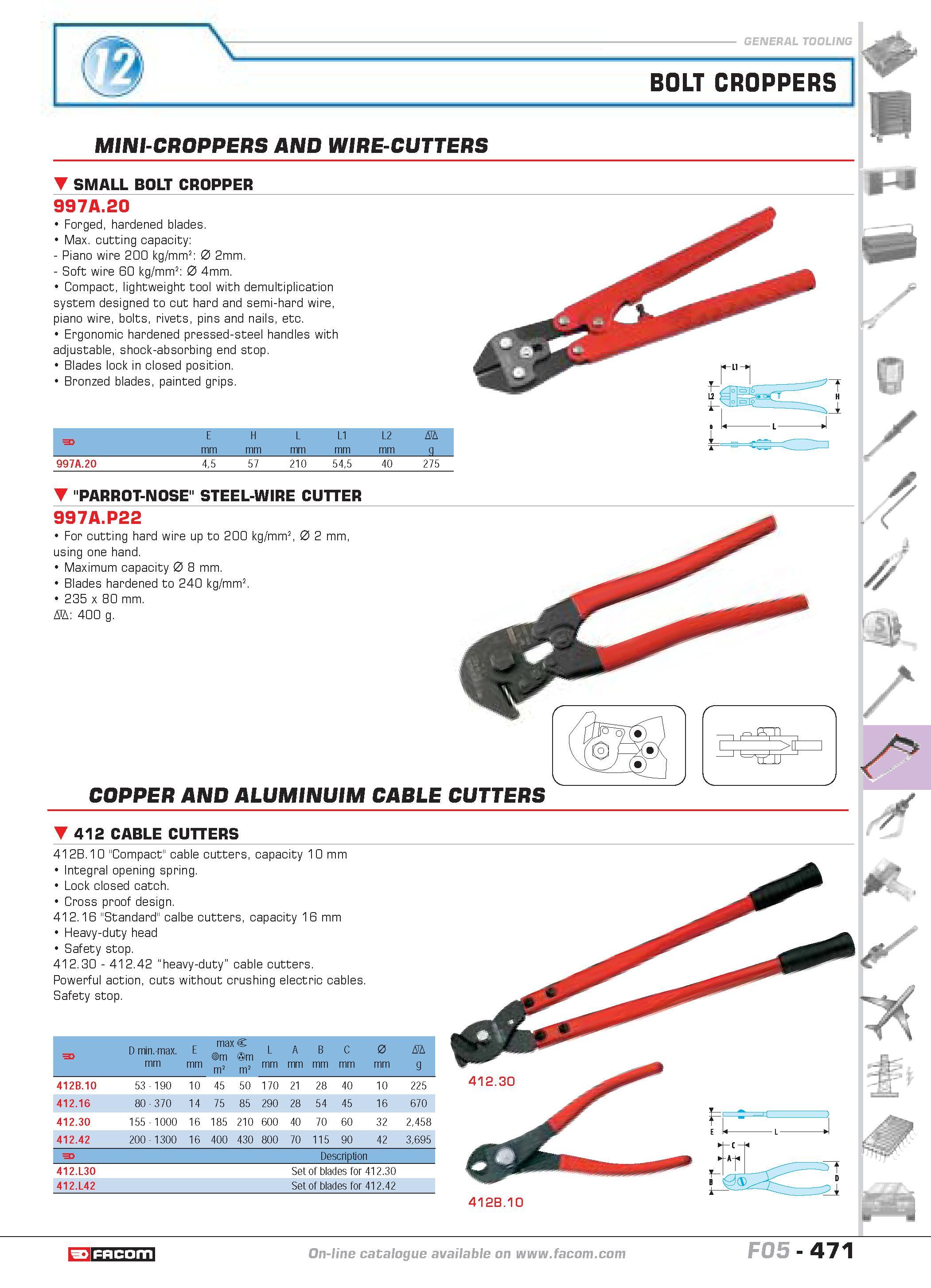

BOLT CROPPERS MINI-CROPPERS AND WIRE-CUTTERS SMALL BOLT CROPPER 997A.20 Forged hardened blades. Max. cutting capacity Piano wire 200 kg mm2 0 2mm. Soft wire 60 kg mm2 0 4mm. Compact lightweight tool with demultiplication system designed to cut hard and semi-hard wire piano wire bolts rivets pins and nails etc. Ergonomic hardened pressed-steel handles with adjustable shock-absorbing end stop. Blades lock in closed position. Bronzed blades painted grips. F E H L L1 L2 D mm g 997A.20 45 57 210 545 40 275 'PARROT-NOSE' STEEL-WIRE CUTTER 997A.P22 For cutting hard wire up to 200 kg mm2 0 2 mm using one hand. Maximum capacity 0 8 mm. Blades hardened to 240 kg mm2. 235 x 80 mm. D 400 g. COPPER AND ALUMINUIM CABLE CUTTERS 412 CABLE CUTTERS 412B.10 "Compact" cable cutters capacity 10 mm Integral opening spring. Lock closed catch. Cross proof design. 412.16 "Standard" calbe cutters capacity 16 mm Heavy-duty head Safety stop. 412.30 412.42 heavy-duty cable cutters. Powerful action cuts without crushing electric cables. Safety stop. F D min.-max. mm E mm max r Wm Vm m2 m2 L mm A mm B mm C mm 0 mm D g 412B.10 53 190 10 45 50 170 21 28 40 10 225 412.16 80 370 14 75 85 290 28 54 45 16 670 412.30 155 1000 16 185 210 600 40 70 60 32 2458 412.42 200 1300 16 400 430 800 70 115 90 42 3695 F Description 412.L30 Set of blades for 412.30 412.L42 Set of blades for 412.42 412B.10 catalogue FACOM F05 471
