340 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.343

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 343 0340 ENG Lab2u

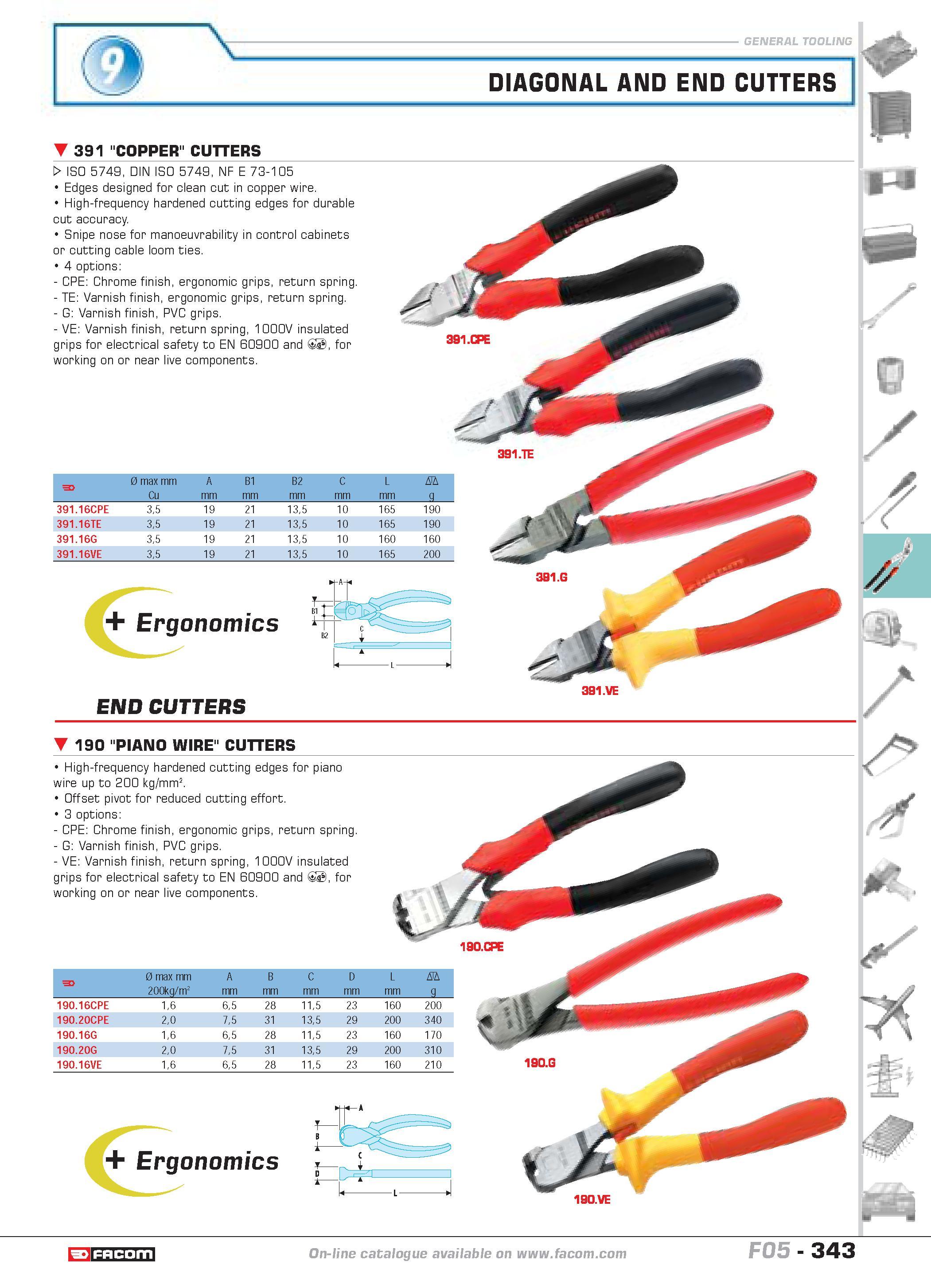

DIAGONAL AND END CUTTERS 391 "COPPER" CUTTERS W ISO 5749 DIN ISO 5749 NF E 73-105 Edges designed for clean cut in copper wire. High-frequency hardened cutting edges for durable cut accuracy. Snipe nose for manoeuvrability in control cabinets or cutting cable loom ties. 4 options CPE Chrome finish ergonomic grips return spring. TE Varnish finish ergonomic grips return spring. G Varnish finish PVC grips. VE Varnish finish return spring 1000V insulated grips for electrical safety to EN 60900 and A for working on or near live components. F 0 max mm A B1 B2 C L D Cu mm g 391.16CPE 35 19 21 135 10 165 190 391.16TE 35 19 21 135 10 165 190 391.16G 35 19 21 135 10 160 160 391.16VE 35 19 21 135 10 165 200 Ergonomics END CUTTERS 391.VE 190 "PIANO WIRE" CUTTERS High-frequency hardened cutting edges for piano wire up to 200 kg mm2. Offset pivot for reduced cutting effort. 3 options CPE Chrome finish ergonomic grips return spring. G Varnish finish PVC grips. VE Varnish finish return spring 1000V insulated grips for electrical safety to EN 60900 and A for working on or near live components. F 0 max mm A B C D L D 200kg m2 mm g 190.16CPE 16 65 28 115 23 160 200 190.20CPE 20 75 31 135 29 200 340 190.16G 16 65 28 115 23 160 170 190.20G 20 75 31 135 29 200 310 190.16VE 16 65 28 115 23 160 210 Ergonomics 190.VE catalogue FACOM F05 343
