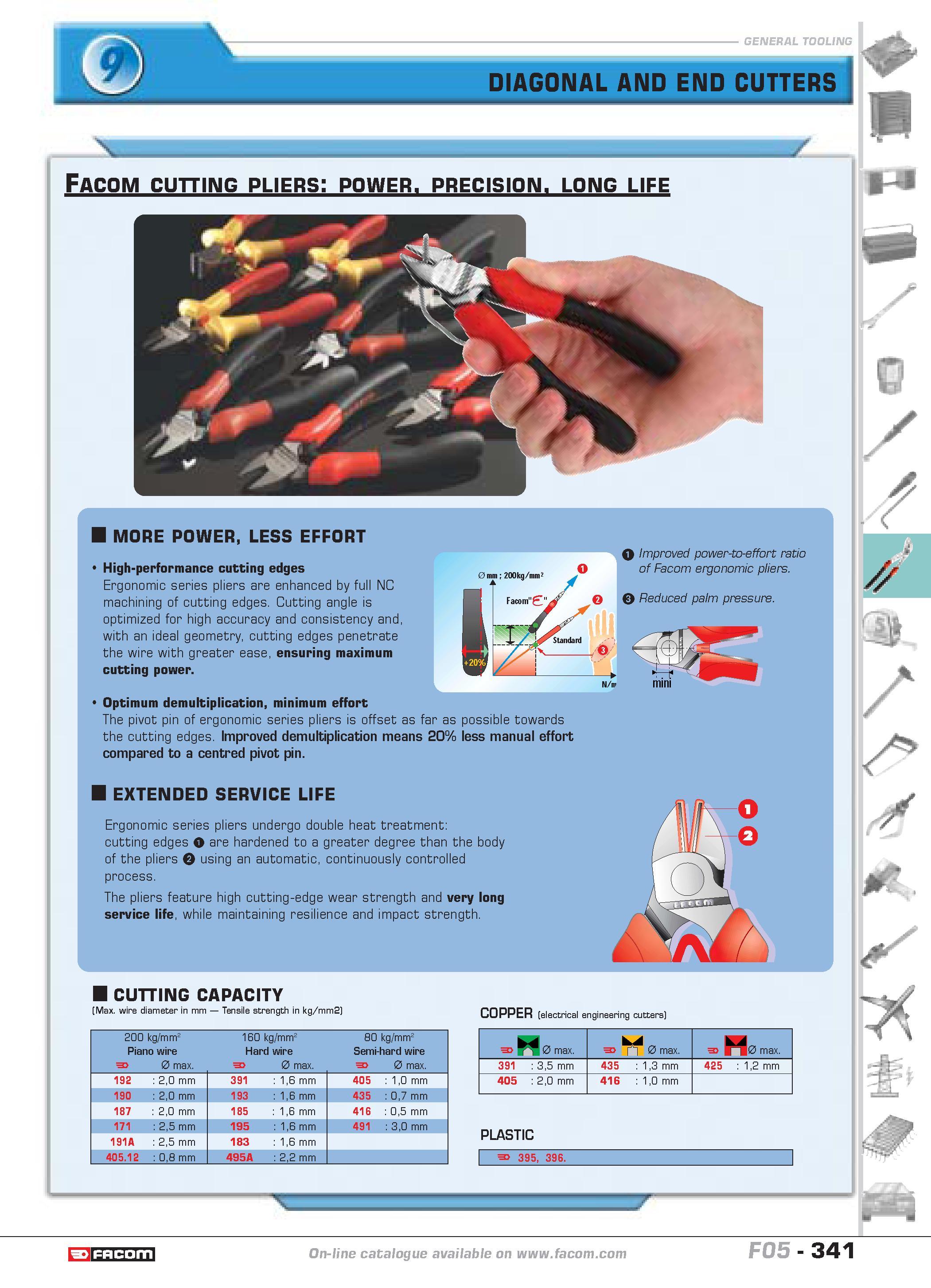

DIAGONAL AND END CUTTERS ML Facom cutting pliers power precision long life MORE POWER LESS EFFORT High-performance cutting edges Ergonomic series pliers are enhanced by full NC machining of cutting edges Cutting angle is optimized for high accuracy and consistency and with an ideal geometry cutting edges penetrate the wire with greater ease ensuring maximum cutting power. Optimum demultiplication minimum effort The pivot pin of ergonomic series pliers is offset as far as possible towards the cutting edges Improved demultiplication means 20% less manual effort compared to a centred pivot pin. EXTENDED SERVICE LIFE Ergonomic series pliers undergo double heat treatment cutting edges O are hardened to a greater degree than the body of the pliers Q using an automatic continuously controlled process The pliers feature high cutting-edge wear strength and very long service life while maintaining resilience and impact strength O Improved power-to-effort ratio of Facom ergonomic pliers. Reduced palm pressure. CUTTING CAPACITY (Max. wire diameter in mm Tensile strength in kg mm2) COPPER (electrical engineering cutters) 200 kg mm2 Piano wire f 0 max 160 kg mm2 Hard wire f 0 max 80 kg mm2 Semi-hard wire f 0 max 192 20 mm 391 16 mm 405 10 mm 190 20 mm 193 16 mm 435 07 mm 187 20 mm 185 16 mm 416 05 mm 171 25 mm 195 16 mm 491 30 mm 191A 25 mm 183 16 mm 405.12 08 mm 495A 22 mm f 0 max f 0 max f 0 max 391 35 mm 435 13 mm 425 12 mm 405 20 mm 416 10 mm PLASTIC F 395 396. w M if catalogue FACOM F05 341
