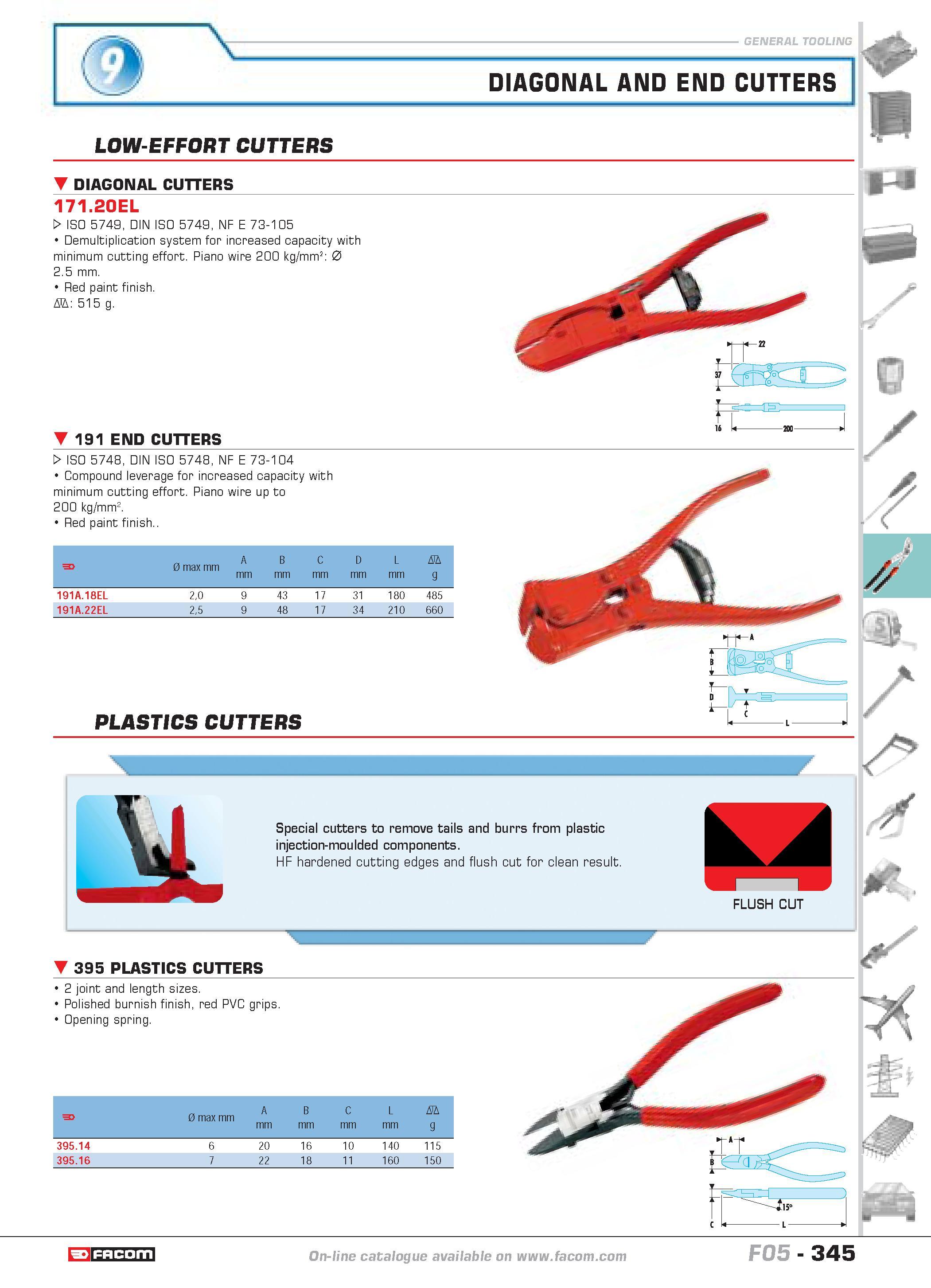

DIAGONAL AND END CUTTERS P LOW-EFFORT CUTTERS DIAGONAL CUTTERS 171.20EL W ISO 5749 DIN ISO 5749 NF E 73-105 Demultiplication system for increased capacity with minimum cutting effort. Piano wire 200 kg mm2 0 2.5 mm. Red paint finish. D 515 g. 191 END CUTTERS W ISO 5748 DIN ISO 5748 NF E 73-104 Compound leverage for increased capacity with minimum cutting effort. Piano wire up to 200 kg mm2. Red paint finish.. A B C D L D mm g 191A.18EL 20 9 43 17 31 180 485 191A.22EL 25 9 48 17 34 210 660 2 joint and length sizes. Polished burnish finish red PVC grips. Opening spring. A B C L D mm g 395.14 6 20 16 10 140 115 395.16 7 22 18 11 160 150 catalogue FACOM F05 345
