343 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.346

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 346 0343 ENG Lab2u

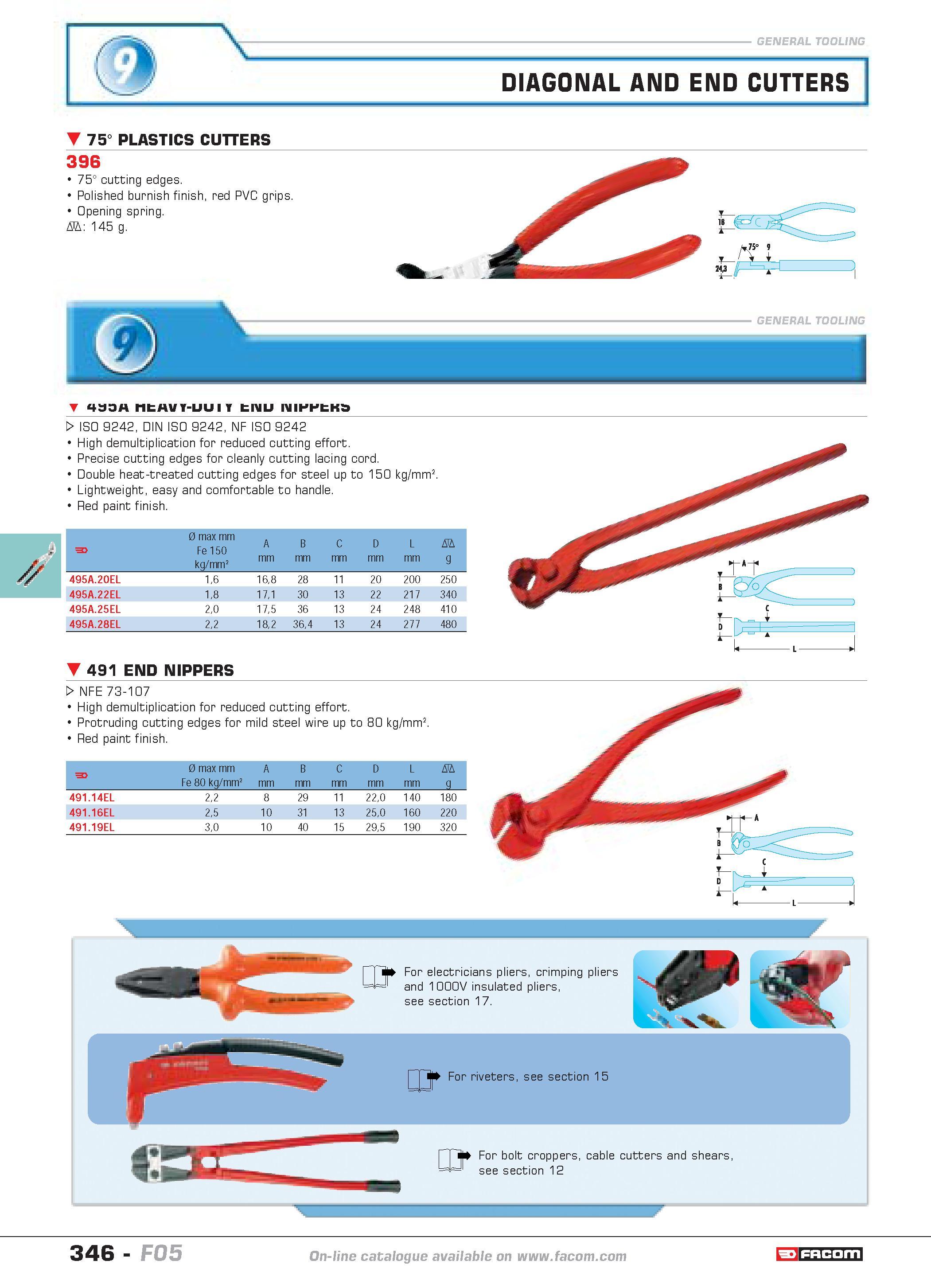

DIAGONAL AND END CUTTERS 75 PLASTICS CUTTERS 396 75 cutting edges. Polished burnish finish red PVC grips Opening spring. D 145 g. 433H ntnVY-UUlY tIMU IMIKKtKd W ISO 9242 DIN ISO 9242 NF ISO 9242 High demultiplication for reduced cutting effort. Precise cutting edges for cleanly cutting lacing cord. Double heat-treated cutting edges for steel up to 150 kg mm2. Lightweight easy and comfortable to handle. Red paint finish. 0 max mm Fe 150 kg mmz A mm B mm C mm D mm L mm D g 495A.20EL 16 168 28 11 20 200 250 495A.22EL 18 171 30 13 22 217 340 495A.25EL 20 175 36 13 24 248 410 495A.28EL 22 182 364 13 24 277 480 491 END NIPPERS W NFE 73-107 High demultiplication for reduced cutting effort. Protruding cutting edges for mild steel wire up to 80 kg mm2. Red paint finish. 0 max mm A B C D L D Fe 80 kg mm2 mm g 491.14EL 22 8 29 11 220 140 180 491.16EL 25 10 31 13 250 160 220 491.19EL 30 10 40 15 295 190 320 346 catalogue FACOM F05
