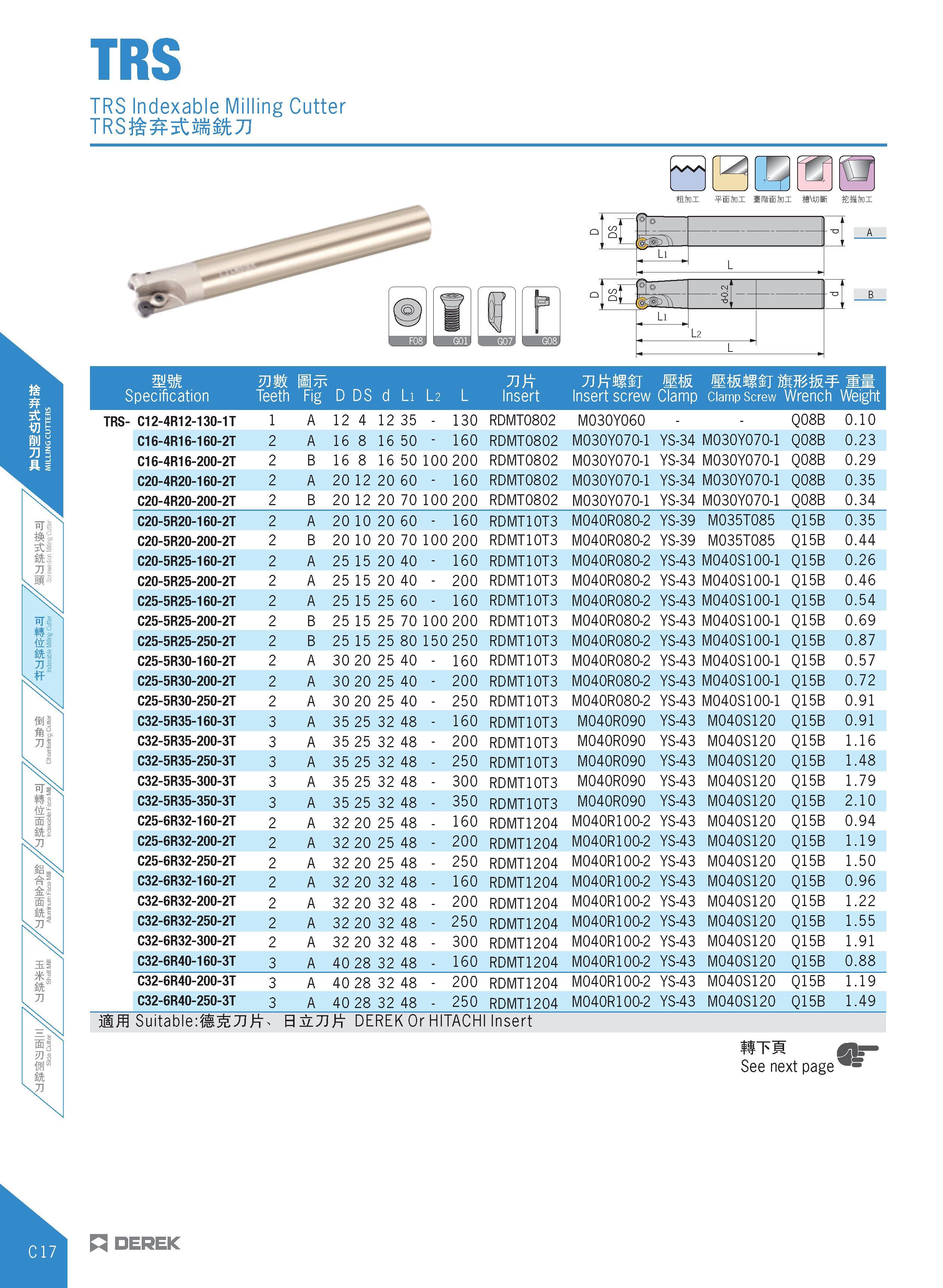

TRS TRS Indexable Milling Cutter TRSJ£ 5t t7J rax SPtfffiirax \ f asirax mm Specification JUik Teeth Fig D DS j ft4ist mm Insert screw Clamp ciamp Screw Wrench Weight TRS- C12-4R12-130-1T 1 A 12 4 12 35 - 130 RDMT0802 M030Y060 Q08B 0.10 C16-4R16-160-2T 2 A 16 8 16 50 - 160 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.23 C16-4R16-200-2T 2 B 16 8 16 50 100 200 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.29 C20-4R20-160-2T 2 A 20 12 20 60 - 160 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.35 C20-4R20-200-2T 2 B 20 12 20 70 100 200 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.34 C20-5R20-160-2T 2 A 20 10 20 60 - 160 RDMT10T3 M040R080-2 YS-39 M035T085 Q15B 0.35 C20-5R20-200-2T 2 B 20 10 20 70 100 200 RDMT10T3 M040R080-2 YS-39 M035T085 Q15B 0.44 C20-5R25-160-2T 2 A 25 15 20 40 - 160 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.26 C20-5R25-200-2T 2 A 25 15 20 40 - 200 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.46 C25-5R25-160-2T 2 A 25 15 25 60 - 160 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.54 C25-5R25-200-2T 2 B 25 15 25 70 100 200 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.69 C25-5R25-250-2T 2 B 25 15 25 80 150 250 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.87 C25-5R30-160-2T 2 A 30 20 25 40 - 160 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.57 C25-5R30-200-2T 2 A 30 20 25 40 - 200 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.72 C25-5R30-250-2T 2 A 30 20 25 40 - 250 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.91 C32-5R35-160-3T 3 A 35 25 32 48 - 160 RDMT10T3 M040R090 YS-43 M040S120 Q15B 0.91 C32-5R35-200-3T 3 A 35 25 32 48 - 200 RDMT10T3 M040R090 YS-43 M040S120 Q15B 1.16 C32-5R35-250-3T 3 A 35 25 32 48 - 250 RDMT10T3 M040R090 YS-43 M040S120 Q15B 1.48 C32-5R35-300-3T 3 A 35 25 32 48 - 300 RDMT10T3 M040R090 YS-43 M040S120 Q15B 1.79 C32-5R35-350-3T 3 A 35 25 32 48 - 350 RDMT10T3 M040R090 YS-43 M040S120 Q15B 2.10 C25-6R32-160-2T 2 A 32 20 25 48 - . 160 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.94 C25-6R32-200-2T 2 A 32 20 25 48 - 200 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.19 C25-6R32-250-2T 2 A 32 20 25 48 - 250 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.50 C32-6R32-160-2T 2 A 32 20 32 48 - 160 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.96 C32-6R32-200-2T 2 A 32 20 32 48 - 200 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.22 C32-6R32-250-2T 2 A 32 20 32 48 - 250 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.55 C32-6R32-300-2T 2 A 32 20 32 48 - 300 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.91 C32-6R40-160-3T 3 A 40 28 32 48 - 160 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.88 C32-6R40-200-3T 3 A 40 28 32 48 - 200 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.19 C32-6R40-250-3T 3 A 40 28 32 48 - 250 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.49 SuitableiflSZItt' BiLTIft DEREK Or HITACHI Insert IITM See next page r 3 DEREK
