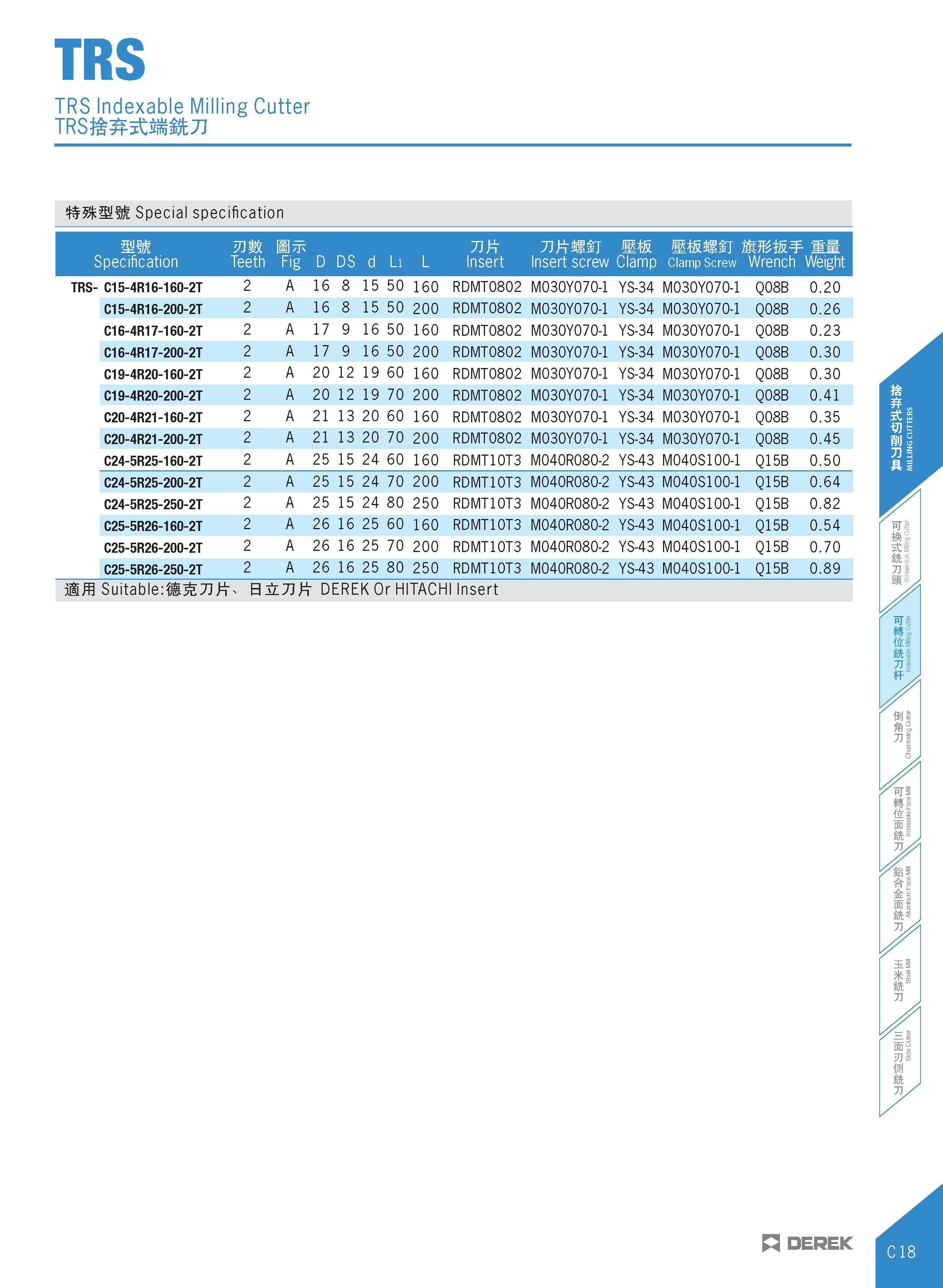

TRS TRS Indexable Milling Cutter Special specification mm. Specification mm Teeth Bttc Fig D DS d Li L Insert Insert screw Clamp mmm wmw n ciamp Screw Wrench Weight TRS- C15-4R16-160-2T 2 A 16 8 15 50 160 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.20 C15-4R16-200-2T 2 A 16 8 15 50 200 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.26 C16-4R17-160-2T 2 A 17 9 16 50 160 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.23 C16-4R17-200-2T 2 A 17 9 16 50 200 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.30 C19-4R20-160-2T 2 A 20 12 19 60 160 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.30 C19-4R20-200-2T 2 A 20 12 19 70 200 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.41 C20-4R21-160-2T 2 A 21 13 20 60 160 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.35 C20-4R21-200-2T 2 A 21 13 20 70 200 RDMT0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.45 C24-5R25-160-2T 2 A 25 15 24 60 160 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.50 C24-5R25-200-2T 2 A 25 15 24 70 200 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.64 C24-5R25-250-2T 2 A 25 15 24 80 250 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.82 C25-5R26-160-2T 2 A 26 16 25 60 160 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.54 C25-5R26-200-2T 2 A 26 16 25 70 200 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.70 C25-5R26-250-2T 2 A 26 16 25 80 250 RDMT10T3 M040R080-2 YS-43 M040S100-1 Q15B 0.89 MM Suitable:flS7I B±7 DEREK Or HITACHI Insert DEPEK
