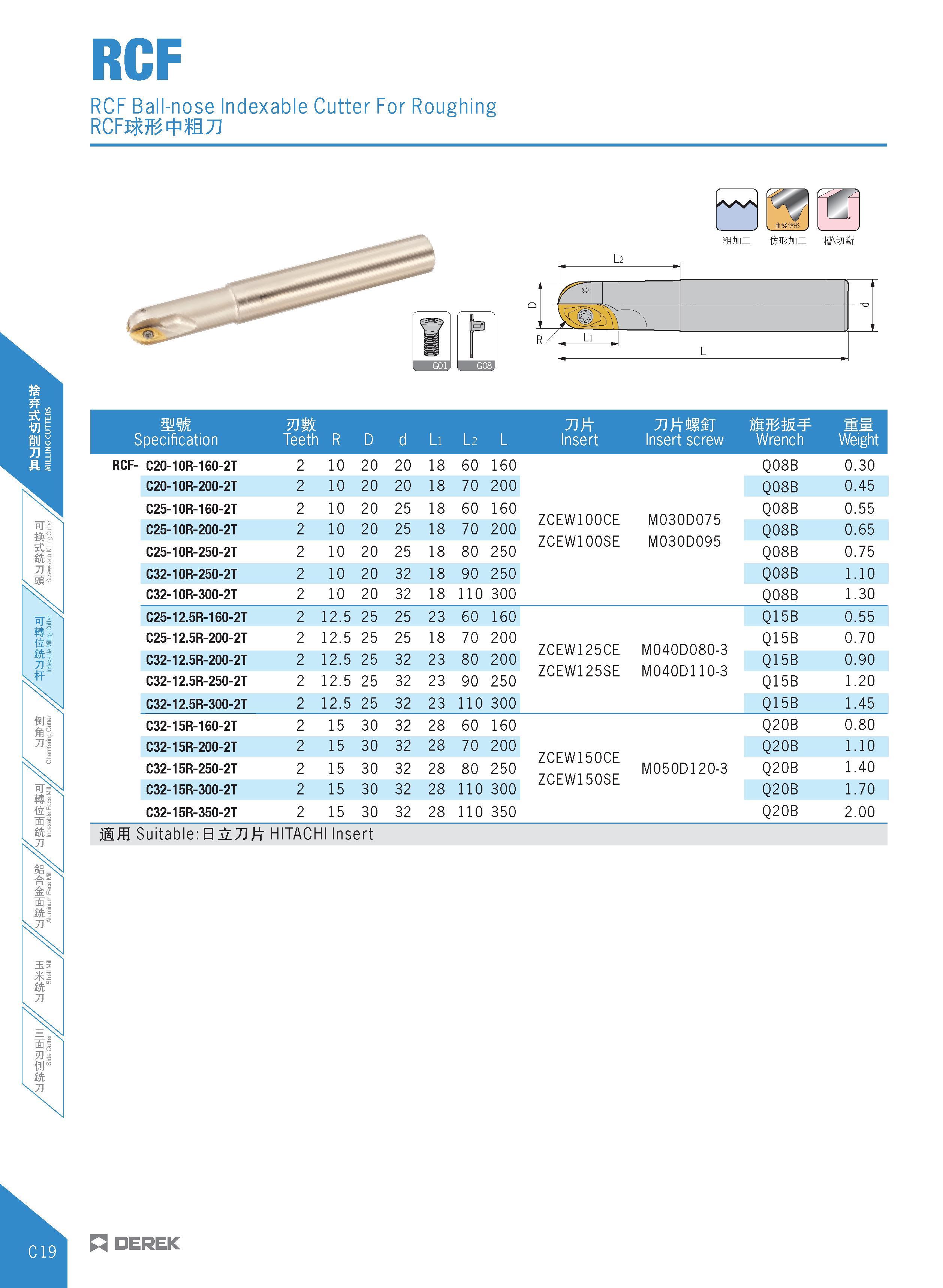

RCF RCF Ball-nose Indexable Cutter For Roughing Wv . flSftJfc J I tMni mmx n\tii a r jt W&:, V r/ Li - L mm Specification VJWL Teeth R D d Li l 2 L Tift Insert Insert screw mmm Wrench Ww Weight RCF- C20-10R-160-2T 2 10 20 20 18 60 160 Q08B 0.30 C20-10R-200-2T 2 10 20 20 18 70 200 Q08B 0.45 C25-10R-160-2T 2 10 20 25 18 60 160 ZCEW100CE ZCEW100SE M030D075 M030D095 Q08B 0.55 C25-10R-200-2T 2 10 20 25 18 70 200 Q08B 0.65 C25-10R-250-2T 2 10 20 25 18 80 250 Q08B 0.75 C32-10R-250-2T 2 10 20 32 18 90 250 Q08B 1.10 C32-10R-300-2T 2 10 20 32 18 110 300 Q08B 1.30 C25-12.5R-160-2T 2 12.5 25 25 23 60 160 Q15B 0.55 C25-12.5R-200-2T 2 12.5 25 25 18 70 200 ZCEW125CE ZCEW125SE M040D080-3 M040D110-3 Q15B 0.70 C32-12.5R-200-2T 2 12.5 25 32 23 80 200 Q15B 0.90 C32-12.5R-250-2T 2 12.5 25 32 23 90 250 Q15B 1.20 C32-12.5R-300-2T 2 12.5 25 32 23 110 300 Q15B 1.45 C32-15R-160-2T 2 15 30 32 28 60 160 Q20B 0.80 C32-15R-200-2T 2 15 30 32 28 70 200 ZCEW150CE ZCEW150SE Q20B 1.10 C32-15R-250-2T 2 15 30 32 28 80 250 M050D120-3 Q20B 1.40 C32-15R-300-2T 2 15 30 32 28 110 300 Q20B 1.70 C32-15R-350-2T 2 15 30 32 28 110 350 Q20B 2.00 HITACHI Insert n DEREK
