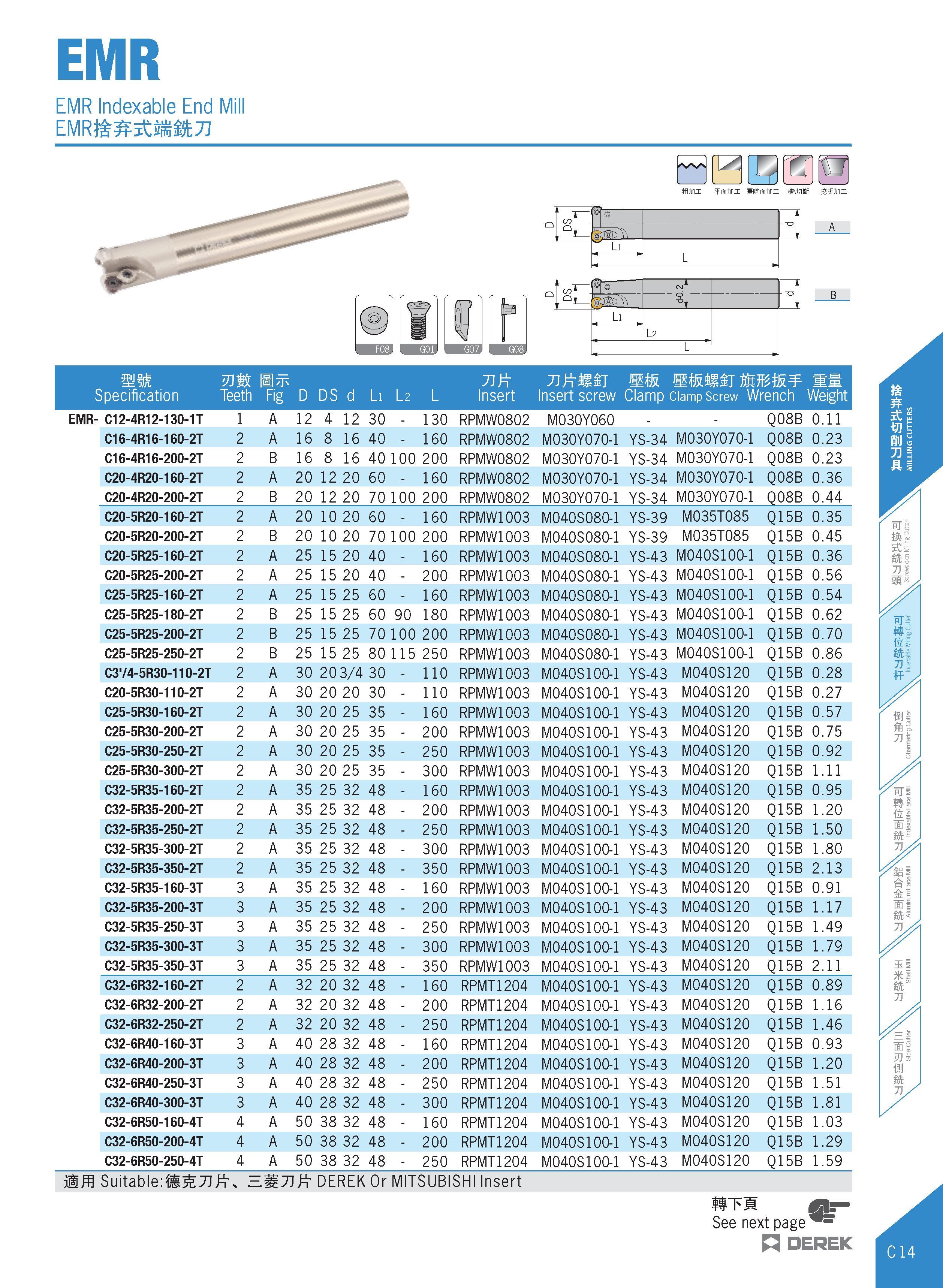

EMR Indexable End Mill EMR& 5£J 8fe7J fflfiOX - j DX P£ ;bDX W\i3 gf gSiOX c c, Ro 1 1 Li l 2 L Specification inwl Teeth Fig D DS d Li l 2 L Tift Insert mmMij mmw Insert screw Clamp ciamp Screw Wrench Ww Weight EMR- C12-4R12-130-1T 1 A 12 4 12 30 - 130 RPMW0802 M030Y060 . - Q08B 0.11 C16-4R16-160-2T 2 A 16 8 16 40 - 160 RPMW0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.23 C16-4R16-200-2T 2 B 16 8 16 40 100 200 RPMW0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.23 C20-4R20-160-2T 2 A 20 12 20 60 - 160 RPMW0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.36 C20-4R20-200-2T 2 B 20 12 20 70 100 200 RPMW0802 M030Y070-1 YS-34 M030Y070-1 Q08B 0.44 C20-5R20-160-2T 2 A 20 10 20 60 - 160 RPMW1003 M040S080-1 YS-39 M035T085 Q15B 0.35 C20-5R20-200-2T 2 B 20 10 20 70 100 200 RPMW1003 M040S080-1 YS-39 M035T085 Q15B 0.45 C20-5R25-160-2T 2 A 25 15 20 40 - 160 RPMW1003 M040S080-1 YS-43 M040S100-1 Q15B 0.36 C20-5R25-200-2T 2 A 25 15 20 40 - 200 RPMW1003 M040S080-1 YS-43 M040S100-1 Q15B 0.56 C25-5R25-160-2T 2 A 25 15 25 60 - 160 RPMW1003 M040S080-1 YS-43 M040S100-1 Q15B 0.54 C25-5R25-180-2T 2 B 25 15 25 60 90 180 RPMW1003 M040S080-1 YS-43 M040S100-1 Q15B 0.62 C25-5R25-200-2T 2 B 25 15 25 70 100 200 RPMW1003 M040S080-1 YS-43 M040S100-1 Q15B 0.70 C25-5R25-250-2T 2 B 25 15 25 80115 250 RPMW1003 M040S080-1 YS-43 M040S100-1 Q15B 0.86 C3‘/4-5R30-110-2T 2 A 30 203/4 30 - 110 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 0.28 C20-5R30-110-2T 2 A 30 20 20 30 - 110 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 0.27 C25-5R30-160-2T 2 A 30 20 25 35 - 160 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 0.57 C25-5R30-200-2T 2 A 30 20 25 35 - 200 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 0.75 C25-5R30-250-2T 2 A 30 20 25 35 - 250 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 0.92 C25-5R30-300-2T 2 A 30 20 25 35 - 300 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 1.11 C32-5R35-160-2T 2 A 35 25 32 48 - 160 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 0.95 C32-5R35-200-2T 2 A 35 25 32 48 - 200 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 1.20 C32-5R35-250-2T 2 A 35 25 32 48 - 250 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 1.50 C32-5R35-300-2T 2 A 35 25 32 48 - 300 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 1.80 C32-5R35-350-2T 2 A 35 25 32 48 - 350 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 2.13 C32-5R35-160-3T 3 A 35 25 32 48 - 160 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 0.91 C32-5R35-200-3T 3 A 35 25 32 48 - 200 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 1.17 C32-5R35-250-3T 3 A 35 25 32 48 - 250 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 1.49 C32-5R35-300-3T 3 A 35 25 32 48 - 300 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 1.79 C32-5R35-350-3T 3 A 35 25 32 48 - 350 RPMW1003 M040S100-1 YS-43 M040S120 Q15B 2.11 C32-6R32-160-2T 2 A 32 20 32 48 - 160 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 0.89 C32-6R32-200-2T 2 A 32 20 32 48 - 200 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.16 C32-6R32-250-2T 2 A 32 20 32 48 - 250 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.46 C32-6R40-160-3T 3 A 40 28 32 48 - 160 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 0.93 C32-6R40-200-3T 3 A 40 28 32 48 - 200 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.20 C32-6R40-250-3T 3 A 40 28 32 48 - 250 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.51 C32-6R40-300-3T 3 A 40 28 32 48 - 300 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.81 C32-6R50-160-4T 4 A 50 38 32 48 - 160 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.03 C32-6R50-200-4T 4 A 50 38 32 48 - 200 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.29 C32-6R50-250-4T 4 A 50 38 32 48 - 250 RPMT1204 M040S100-1 YS-43 M040S120 Q15B 1.59 mm SuitableiflSZItt, DEREK Or MITSUBISHI Insert IITM See next page' H DEPEK
