216 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.C13

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. C13 0216 Lab2u

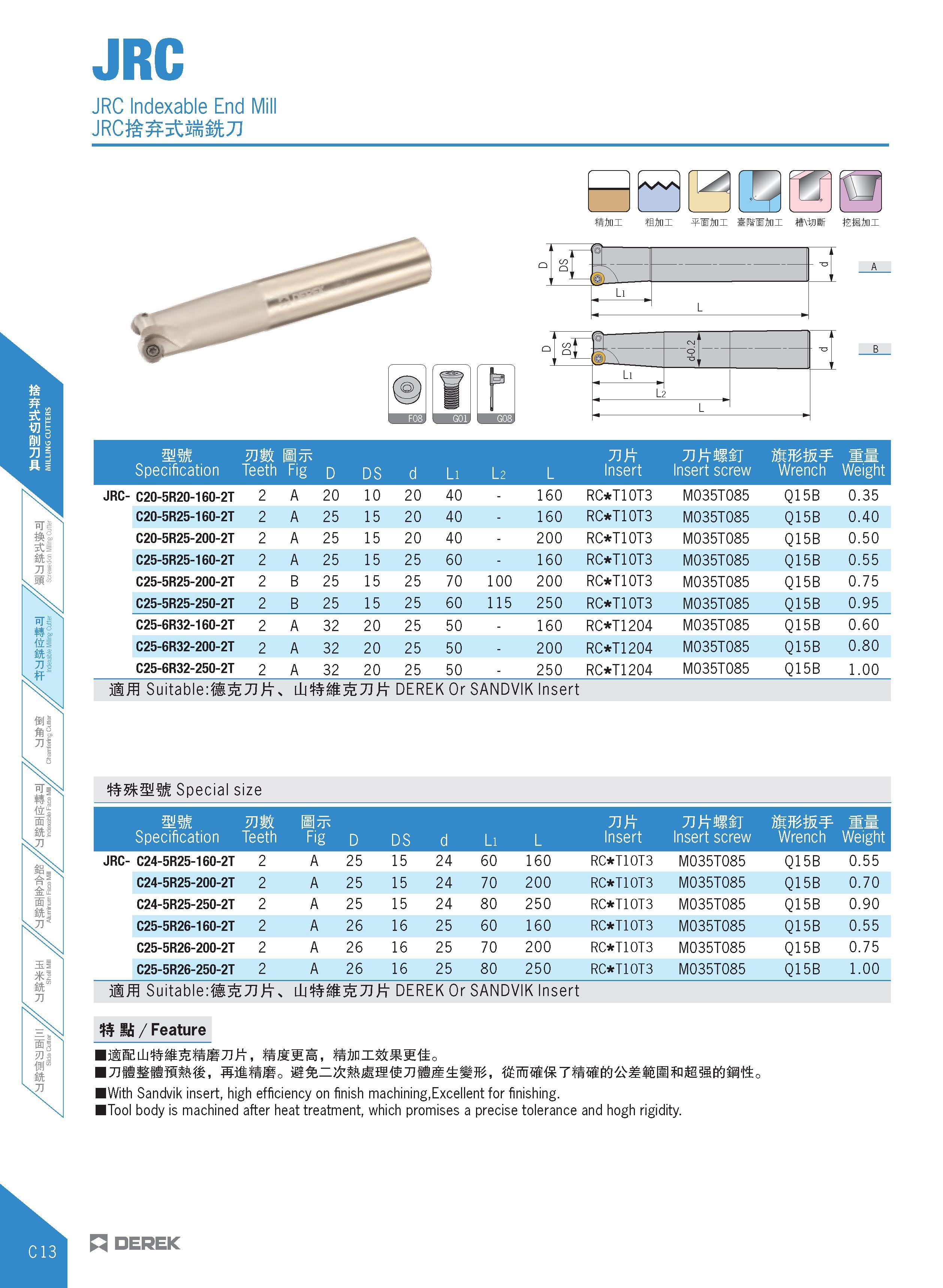

JRC JRC Indexable End /Ws /I mm IWini fflflm WJini si ini HMsSr JStBini DS n a - "O Li L 1 ii Cvl n m'\ o Li L L mm UJMl III;tc TJttSSj mmtm mm Specification Teeth Fig D DS d Li l 2 L Insert Insert screw Wrench Weight JRC- C20-5R20-160-2T 2 A 20 10 20 40 - 160 RC T10T3 M035T085 Q15B 0.35 C20-5R25-160-2T 2 A 25 15 20 40 - 160 RC T10T3 M035T085 Q15B 0.40 C20-5R25-200-2T 2 A 25 15 20 40 - 200 RC T10T3 M035T085 Q15B 0.50 C25-5R25-160-2T 2 A 25 15 25 60 - 160 RC T10T3 M035T085 Q15B 0.55 C25-5R25-200-2T 2 B 25 15 25 70 100 200 RC T10T3 M035T085 Q15B 0.75 C25-5R25-250-2T 2 B 25 15 25 60 115 250 RC T10T3 M035T085 Q15B 0.95 C25-6R32-160-2T 2 A 32 20 25 50 - 160 RC T1204 M035T085 Q15B 0.60 C25-6R32-200-2T 2 A 32 20 25 50 - 200 RC T1204 M035T085 Q15B 0.80 C25-6R32-250-2T 2 A 32 20 25 50 - 250 RC T1204 M035T085 Q15B 1.00 MM SuitableiflSZItt, MmDEREK Or SANDVIK Insert Special size mm Specification um. Teeth Bttc Fig D DS d Li L Insert Insert screw mmm Wrench Weight JRC- C24-5R25-160-2T 2 A 25 15 24 60 160 RC T10T3 M035T085 Q15B 0.55 C24-5R25-200-2T 2 A 25 15 24 70 200 RC T10T3 M035T085 Q15B 0.70 C24-5R25-250-2T 2 A 25 15 24 80 250 RC T10T3 M035T085 Q15B 0.90 C25-5R26-160-2T 2 A 26 16 25 60 160 RC T10T3 M035T085 Q15B 0.55 C25-5R26-200-2T 2 A 26 16 25 70 200 RC T10T3 M035T085 Q15B 0.75 C25-5R26-250-2T 2 A 26 16 25 80 250 RC T10T3 M035T085 Q15B 1.00 mm SuitableiflSZItt, MmDEREK Or SANDVIK Insert S li / Feature IWith Sandvik insert, high efficiency on finish machining,Excellent for finishing. ITool body is machined after heat treatment, which promises a precise tolerance and hogh rigidity. n DEREK
