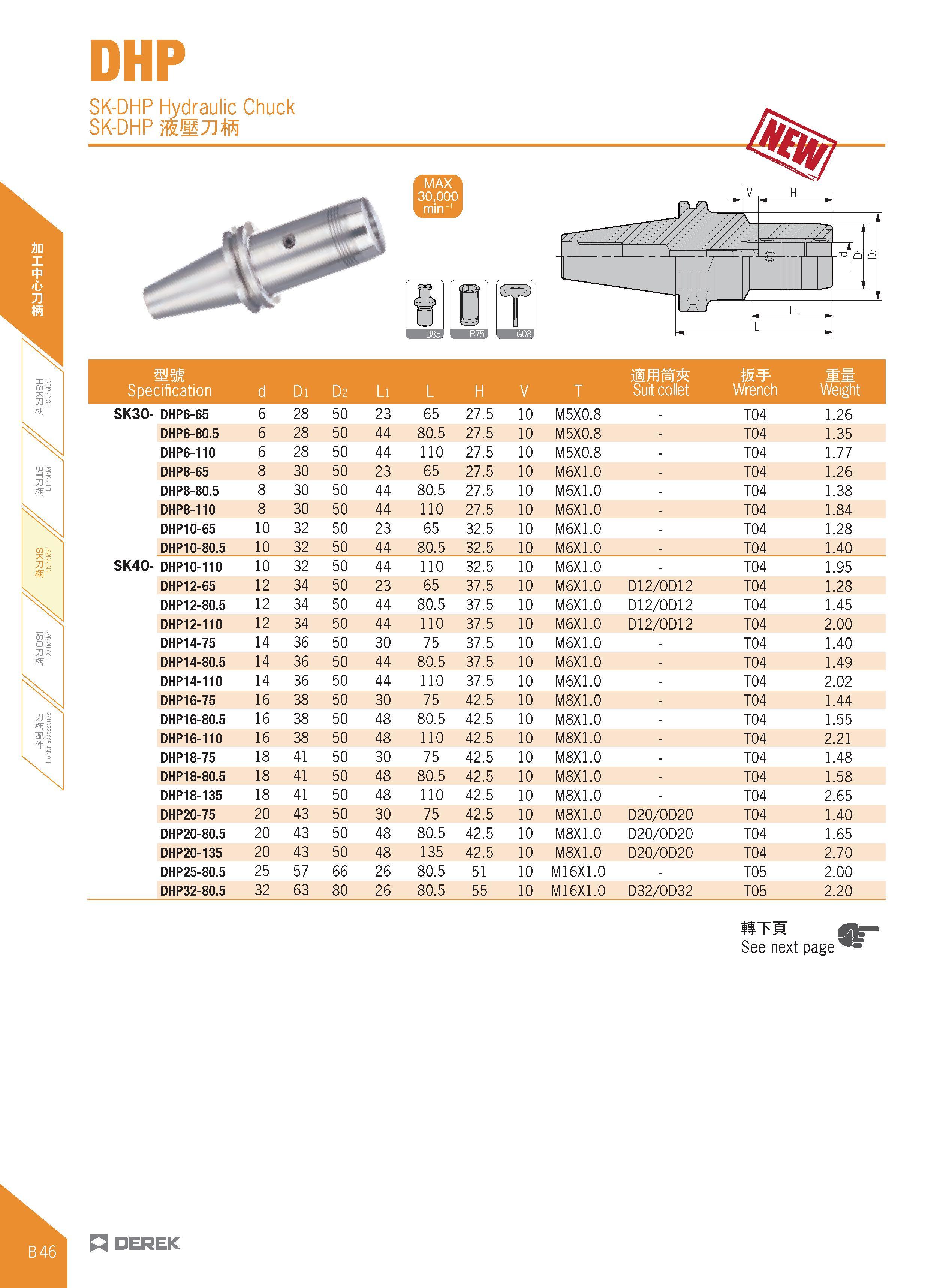

DHP SK-DHP Hydraulic Chuck SK-DHP mm Specification d Di D2 Li L H V T jam Suit collet W Wrench Ww Weight SK30- DHP6-65 6 28 50 23 65 27.5 10 M5X0.8 - T04 1.26 DHP6-80.5 6 28 50 44 80.5 27.5 10 M5X0.8 - T04 1.35 DHP6-110 6 28 50 44 110 27.5 10 M5X0.8 - T04 1.77 DHP8-65 8 30 50 23 65 27.5 10 M6X1.0 - T04 1.26 DHP8-80.5 8 30 50 44 80.5 27.5 10 M6X1.0 - T04 1.38 DHP8-110 8 30 50 44 110 27.5 10 M6X1.0 - T04 1.84 DHP10-65 10 32 50 23 65 32.5 10 M6X1.0 - T04 1.28 DHP10-80.5 10 32 50 44 80.5 32.5 10 M6X1.0 - T04 1.40 SK40- DHP10-110 10 32 50 44 110 32.5 10 M6X1.0 - T04 1.95 DHP12-65 12 34 50 23 65 37.5 10 M6X1.0 D12/OD12 T04 1.28 DHP12-80.5 12 34 50 44 80.5 37.5 10 M6X1.0 D12/OD12 T04 1.45 DHP12-110 12 34 50 44 110 37.5 10 M6X1.0 D12/OD12 T04 2.00 DHP14-75 14 36 50 30 75 37.5 10 M6X1.0 - T04 1.40 DHP14-80.5 14 36 50 44 80.5 37.5 10 M6X1.0 - T04 1.49 DHP14-110 14 36 50 44 110 37.5 10 M6X1.0 - T04 2.02 DHP16-75 16 38 50 30 75 42.5 10 M8X1.0 - T04 1.44 DHP16-80.5 16 38 50 48 80.5 42.5 10 M8X1.0 - T04 1.55 DHP16-110 16 38 50 48 110 42.5 10 M8X1.0 - T04 2.21 DHP18-75 18 41 50 30 75 42.5 10 M8X1.0 - T04 1.48 DHP18-80.5 18 41 50 48 80.5 42.5 10 M8X1.0 - T04 1.58 DHP18-135 18 41 50 48 110 42.5 10 M8X1.0 - T04 2.65 DHP20-75 20 43 50 30 75 42.5 10 M8X1.0 D20/OD20 T04 1.40 DHP20-80.5 20 43 50 48 80.5 42.5 10 M8X1.0 D20/OD20 T04 1.65 DHP20-135 20 43 50 48 135 42.5 10 M8X1.0 D20/OD20 T04 2.70 DHP25-80.5 25 57 66 26 80.5 51 10 M16X1.0 - T05 2.00 DHP32-80.5 32 63 80 26 80.5 55 10 M16X1.0 D32/0D32 T05 2.20 IITM See next page r Z1 DEREK
