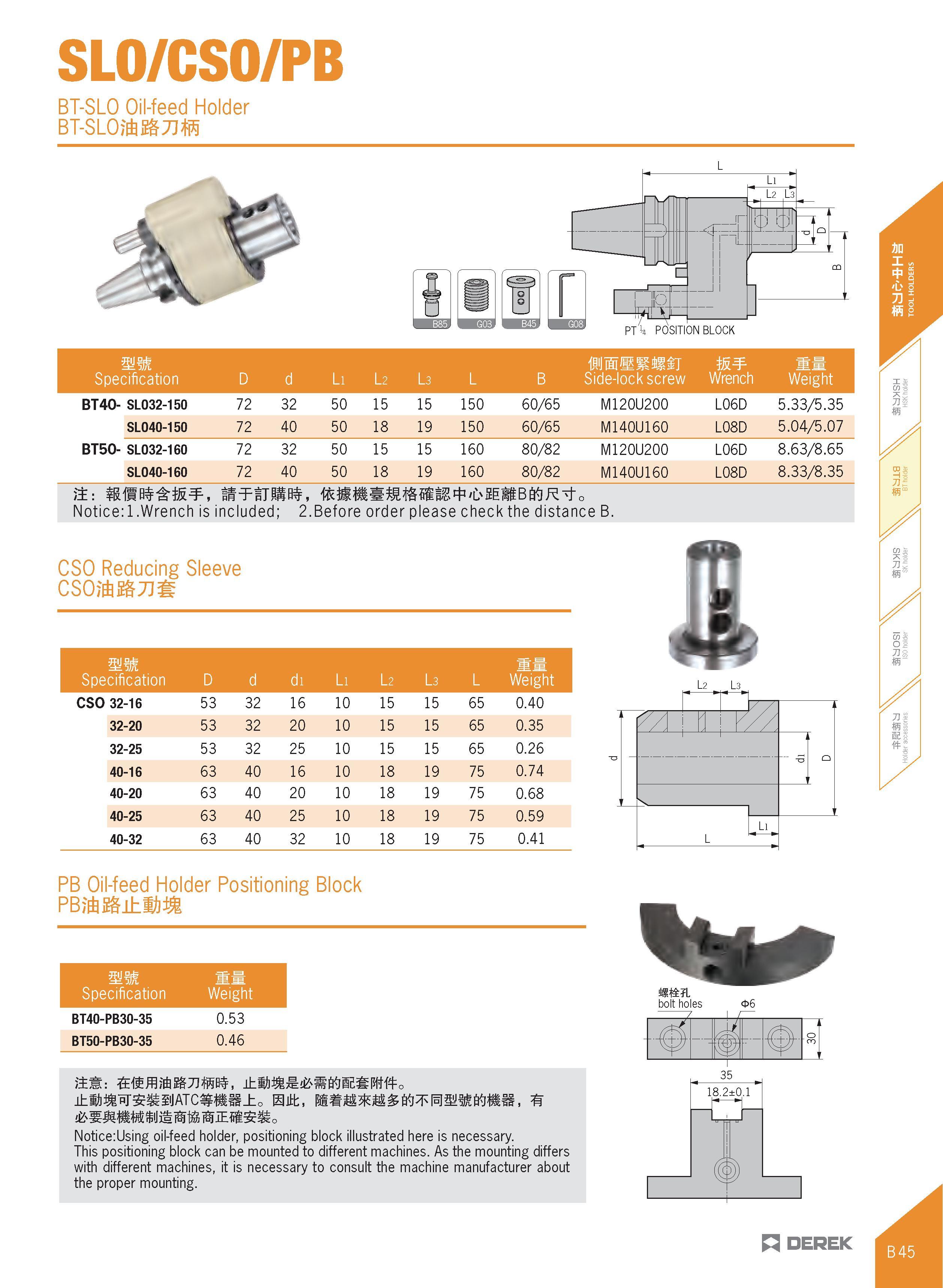

SLO/CSO/PB BT-SLO Oil-feed Holder BT-SLOiil&TJ m mm Specification D d Li l 2 La L B Side-lock screw w Wrench Weight BT40- SL032-150 72 32 50 15 15 150 60/65 M120U200 L06D 5.33/5.35 SL040-150 72 40 50 18 19 150 60/65 M140U160 L08D 5.04/5.07 BT50- SL032-160 72 32 50 15 15 160 80/82 M120U200 L06D 8.63/8.65 SL040-160 72 40 50 18 19 160 80/82 M140U160 L08D 8.33/8.35 j±: tlTlTUBS, + Notice: .Wrench is included; 2.Before order please checkthe distance B. CSO Reducing Sleeve CSOiil&TJ mm Specification D d di Li l 2 l 3 L Weight CSO 32-16 53 32 16 10 15 15 65 0.40 32-20 53 32 20 10 15 15 65 0.35 32-25 53 32 25 10 15 15 65 0.26 40-16 63 40 16 10 18 19 75 0.74 40-20 63 40 20 10 18 19 75 0.68 40-25 63 40 25 10 18 19 75 0.59 40-32 63 40 32 10 18 19 75 0.41 oi 71 7JI ffi Hg PB Oil-feed Holder Positioning Block PB i£ ±Si)± mm Specification Weight BT40-PB30-35 0.53 BT50-PB30-35 0.46 ±S4ii'eT3cSiiJATC IS±o Hife, W Notice:llsing oil-feed holder, positioning block illustrated here is necessary. This positioning block can be mounted to different machines. As the mounting differs with different machines, it is necessary to consult the machine manufacturer about the proper mounting. H DEREK
