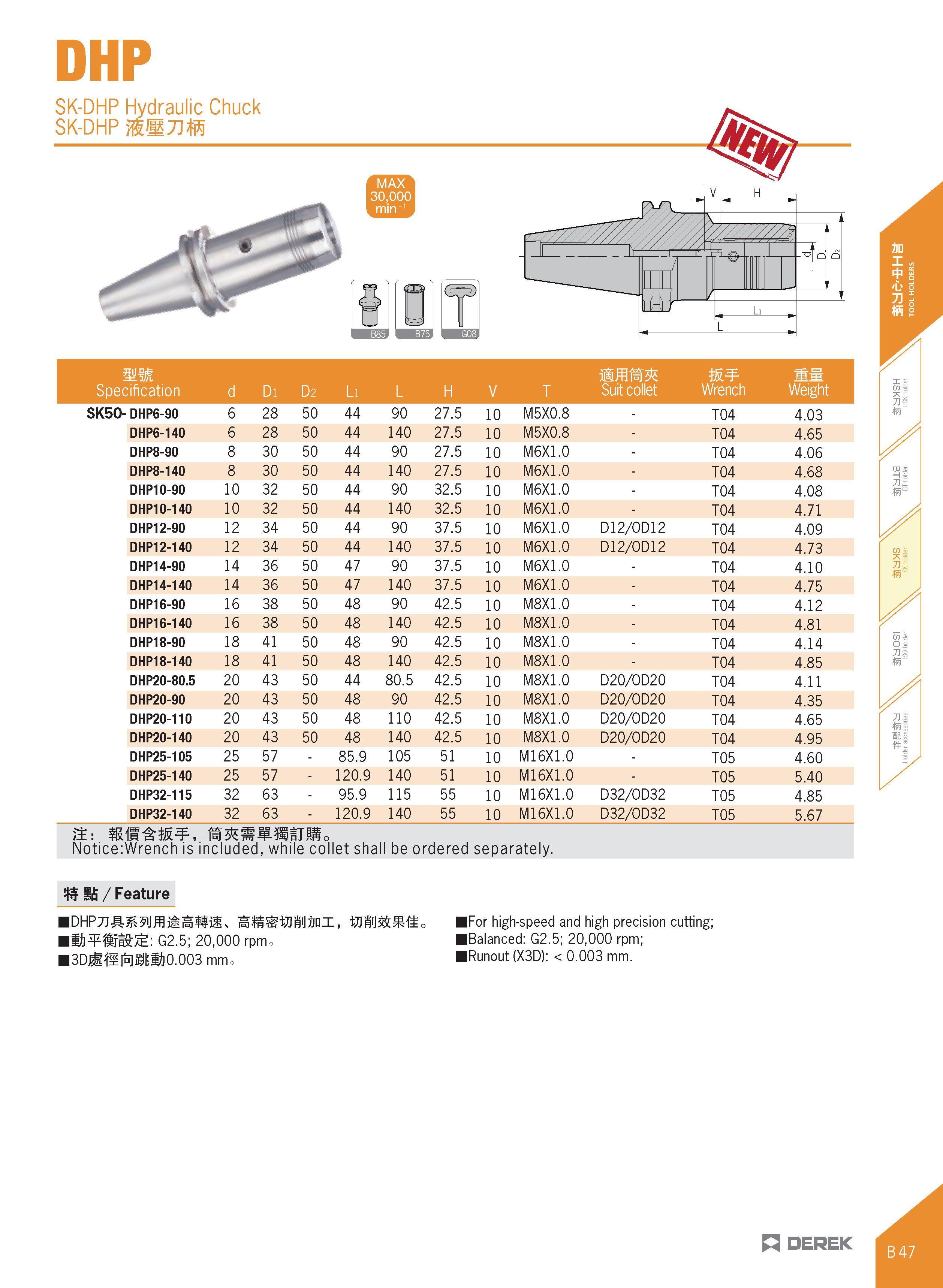

DHP SK-DHP Hydraulic Chuck SK-DHP mm. Specification d Di D2 Li L H V T Suit collet Wrench Ww Weight SK50- DHP6-90 6 28 50 44 90 27.5 10 M5X0.8 - T04 4.03 DHP6-140 6 28 50 44 140 27.5 10 M5X0.8 - T04 4.65 DHP8-90 8 30 50 44 90 27.5 10 M6X1.0 - T04 4.06 DHP8-140 8 30 50 44 140 27.5 10 M6X1.0 - T04 4.68 DHP10-90 10 32 50 44 90 32.5 10 M6X1.0 - T04 4.08 DHP10-140 10 32 50 44 140 32.5 10 M6X1.0 - T04 4.71 DHP12-90 12 34 50 44 90 37.5 10 M6X1.0 D12/OD12 T04 4.09 DHP12-140 12 34 50 44 140 37.5 10 M6X1.0 D12/OD12 T04 4.73 DHP14-90 14 36 50 47 90 37.5 10 M6X1.0 - T04 4.10 DHP14-140 14 36 50 47 140 37.5 10 M6X1.0 - T04 4.75 DHP16-90 16 38 50 48 90 42.5 10 M8X1.0 - T04 4.12 DHP16-140 16 38 50 48 140 42.5 10 M8X1.0 - T04 4.81 DHP18-90 18 41 50 48 90 42.5 10 M8X1.0 - T04 4.14 DHP18-140 18 41 50 48 140 42.5 10 M8X1.0 - T04 4.85 DHP20-80.5 20 43 50 44 80.5 42.5 10 M8X1.0 D20/OD20 T04 4.11 DHP20-90 20 43 50 48 90 42.5 10 M8X1.0 D20/OD20 T04 4.35 DHP20-110 20 43 50 48 110 42.5 10 M8X1.0 D20/OD20 T04 4.65 DHP20-140 20 43 50 48 140 42.5 10 M8X1.0 D20/OD20 T04 4.95 DHP25-105 25 57 - 85.9 105 51 10 M16X1.0 - T05 4.60 DHP25-140 25 57 - 120.9 140 51 10 M16X1.0 - T05 5.40 DHP32-115 32 63 - 95.9 115 55 10 M16X1.0 D32/0D32 T05 4.85 DHP32-140 32 63 - 120.9 140 55 10 M16X1.0 D32/0D32 T05 5.67 j±: Notice:Wrench is piTII T T3 J included, while collet shall be ordered separately. A 9 £ / Feature tJ)SJ£>t:S'f±o BFor high-speed and high precision cutting; G2.5; 20,000 rpmc BBalanced: G2.5; 20,000 rpm; 3DjS fr011)0.003 mm. BRunout (X3D): < 0.003 mm. H DEPEK
