Shoulder Mills Widia Victory VSM490 -15 Series Weldon Shanks Superior wall and surface finish capabilities Stepless solution True 90° to run precis

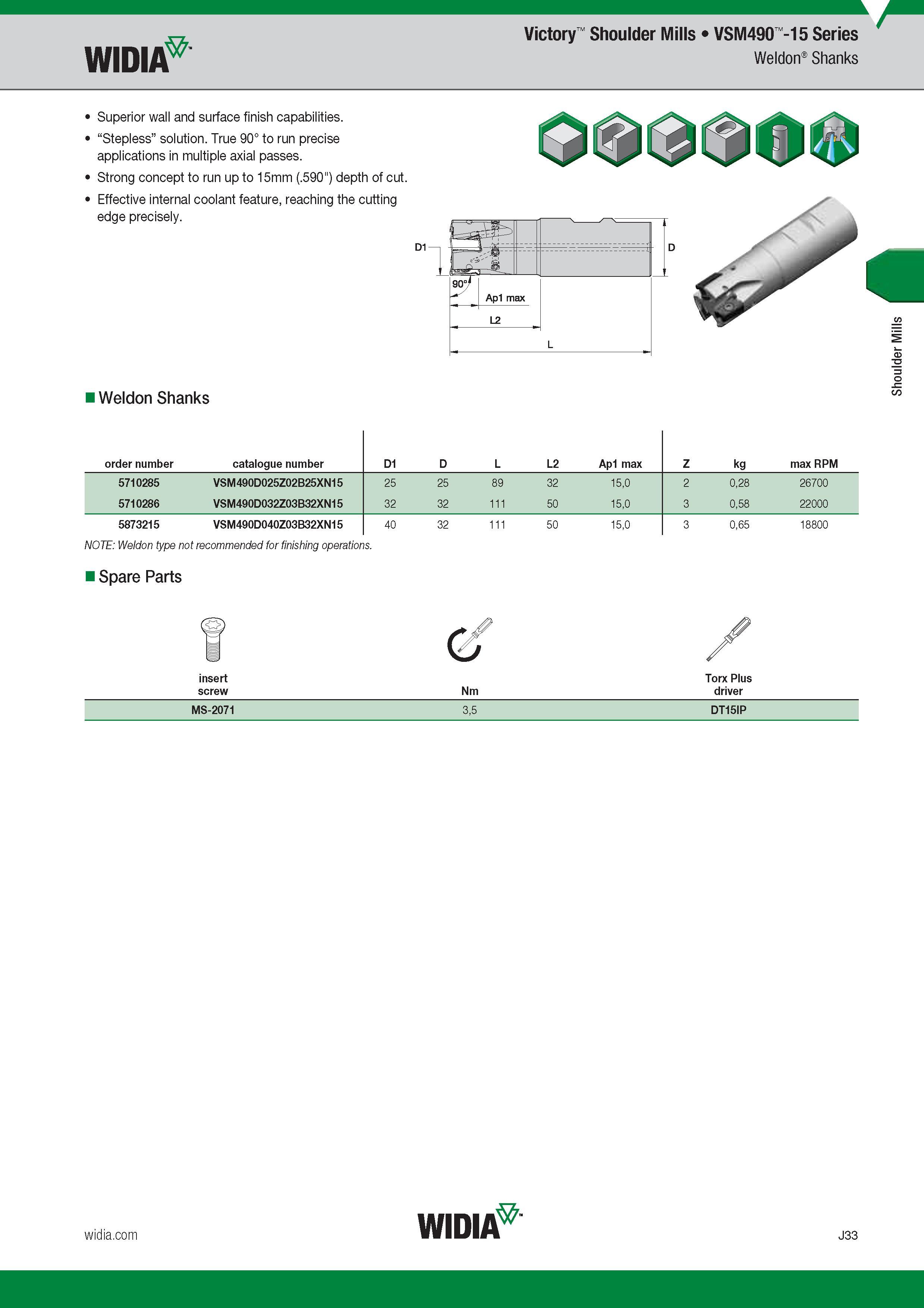

Shoulder Mills Widia Victory VSM490 -15 Series Weldon Shanks Superior wall and surface finish capabilities. Stepless solution. True 90° to run precise applications in multiple axial passes. Strong concept to run up to 15mm (.590") depth of cut. Effective internal coolant feature, reaching the cutting edge precisely. Weldon Shanks order number Catalogue number Обозначение инструмента по каталогу D1 D L L2 Ap1 max Z kg max RPM 5710285 VSM490D025Z02B25XN15 25 25 89 32 15,0 2 0,28 26700 5710286 VSM490D032Z03B32XN15 32 32 111 50 15,0 3 0,58 22000 5873215 VSM490D040Z03B32XN15 40 32 111 50 15,0 3 0,65 18800 NOTE Weldon type not recommended for finishing operations. Spare Parts c insert screw Nm Torx Plus driver MS-2071 3,5 DT15IP Widia J33 Shoulder Mills
