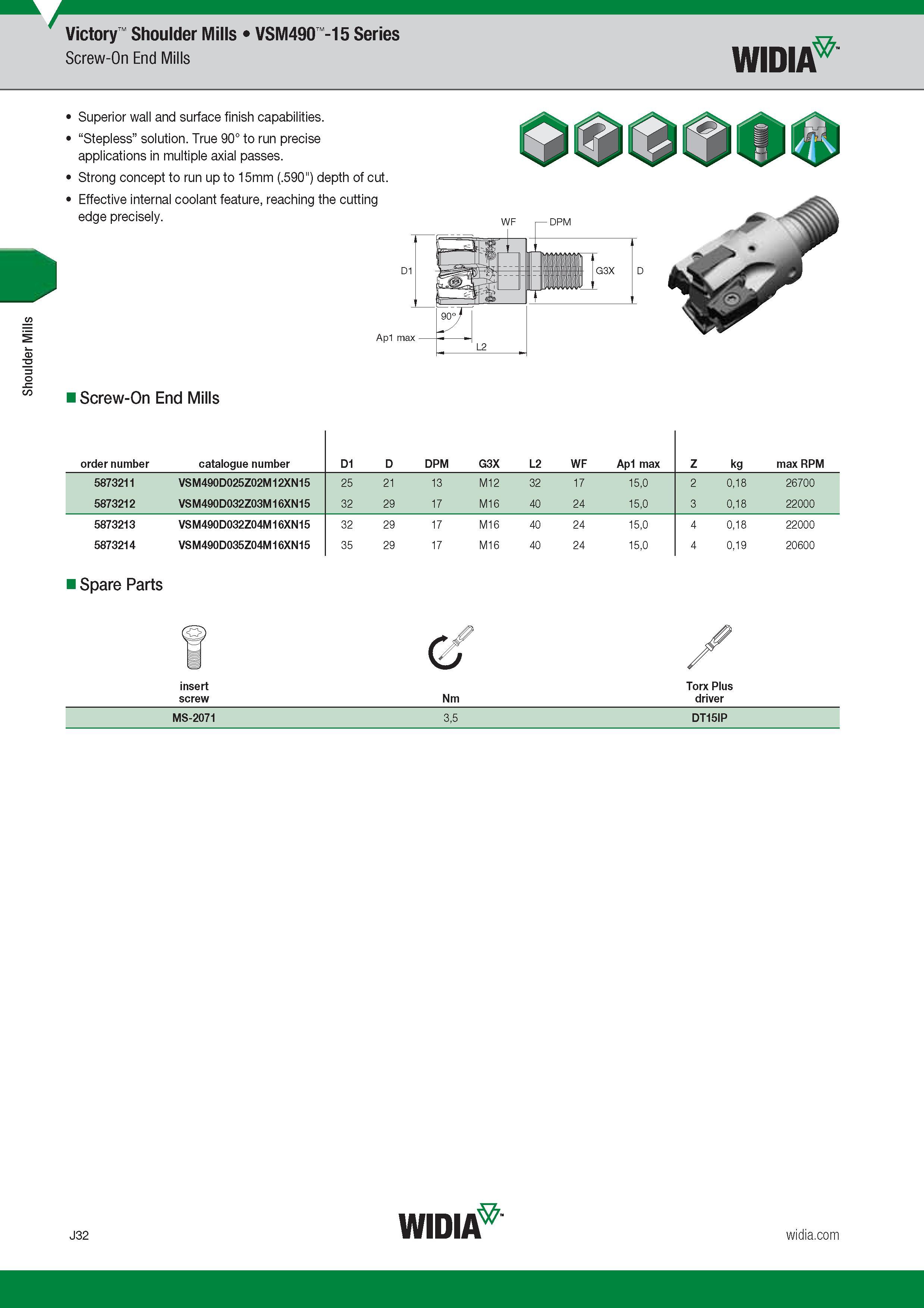

Shoulder Mills Widia Victory VSM490 -15 Series Screw-On End Mills Superior wall and surface finish capabilities Stepless solution True 90° to run p

Shoulder Mills Widia Victory VSM490 -15 Series Screw-On End Mills Superior wall and surface finish capabilities. Stepless solution. True 90° to run precise applications in multiple axial passes. Strong concept to run up to 15mm (.590") depth of cut. Effective internal coolant feature, reaching the cutting edge precisely. D1 Ap1 max Screw-On End Mills D order number Catalogue number Обозначение инструмента по каталогу D1 D DPM G3X L2 WF Ap1 max Z kg max RPM 5873211 VSM490D025Z02M12XN15 25 21 13 M12 32 17 15,0 2 0,18 26700 5873212 VSM490D032Z03M16XN15 32 29 17 M16 40 24 15,0 3 0,18 22000 5873213 VSM490D032Z04M16XN15 32 29 17 M16 40 24 15,0 4 0,18 22000 5873214 VSM490D035Z04M16XN15 35 29 17 M16 40 24 15,0 4 0,19 20600 Spare Parts Shoulder Mills
