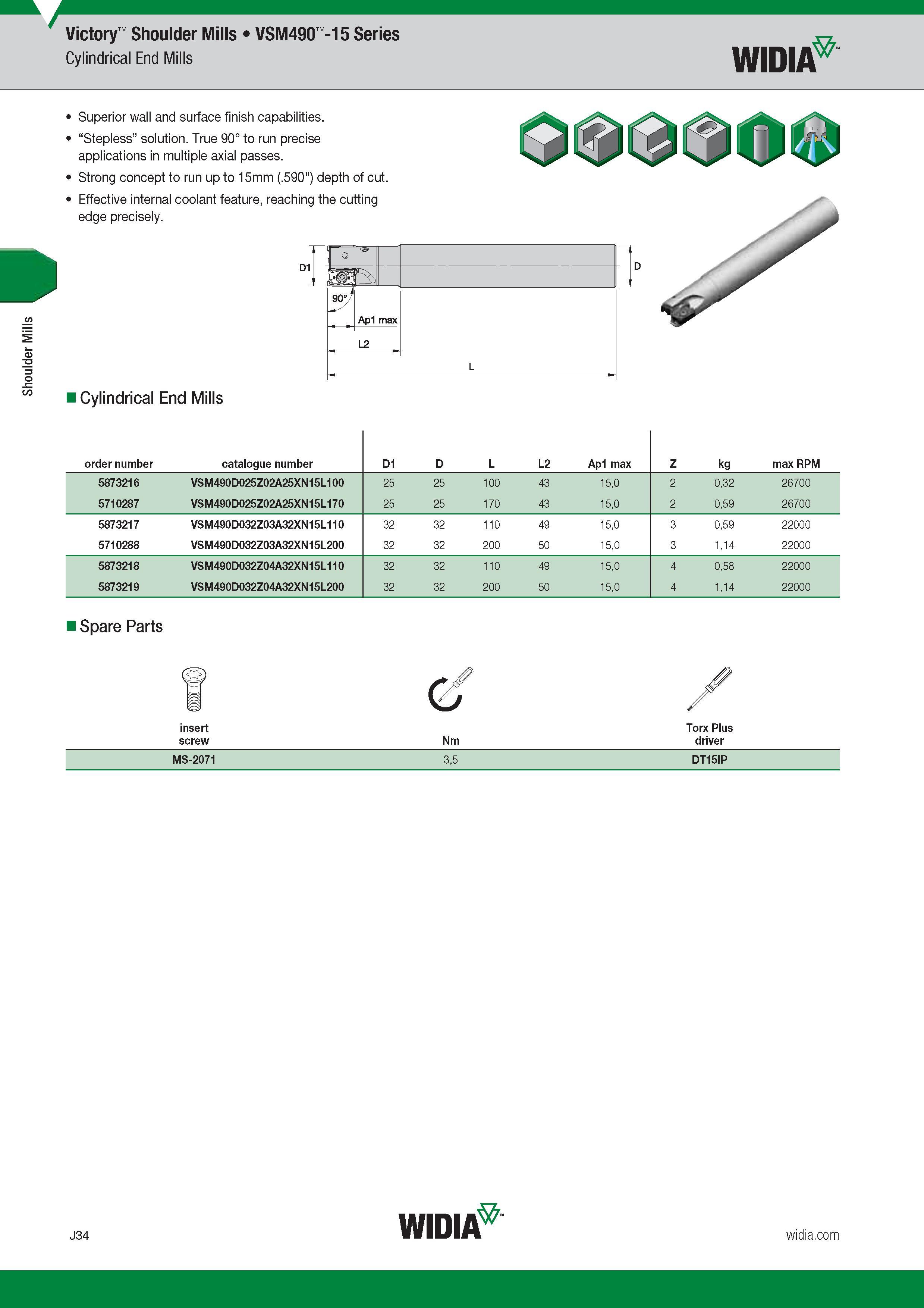

Shoulder Mills Victory Widia VSM490 -15 Series Cylindrical End Mills Superior wall and surface finish capabilities. Stepless solution. True 90° to run precise applications in multiple axial passes. Strong concept to run up to 15mm (.590") depth of cut. Effective internal coolant feature, reaching the cutting edge precisely. D1 t o 1 90° Ap1 max 12 L Cylindrical End Mills order number Catalogue number Обозначение инструмента по каталогу D1 D L L2 Ap1 max Z kg max RPM 5873216 VSM490D025Z02A25XN15L100 25 25 100 43 15,0 2 0,32 26700 5710287 VSM490D025Z02A25XN15L170 25 25 170 43 15,0 2 0,59 26700 5873217 VSM490D032Z03A32XN15L110 32 32 110 49 15,0 3 0,59 22000 5710288 VSM490D032Z03A32XN15L200 32 32 200 50 15,0 3 1,14 22000 5873218 VSM490D032Z04A32XN15L110 32 32 110 49 15,0 4 0,58 22000 5873219 VSM490D032Z04A32XN15L200 32 32 200 50 15,0 4 1,14 22000 Spare Parts insert screw a Nm Torx Plus driver MS-2071 3,5 DT15IP J34 Widia Shoulder Mills
