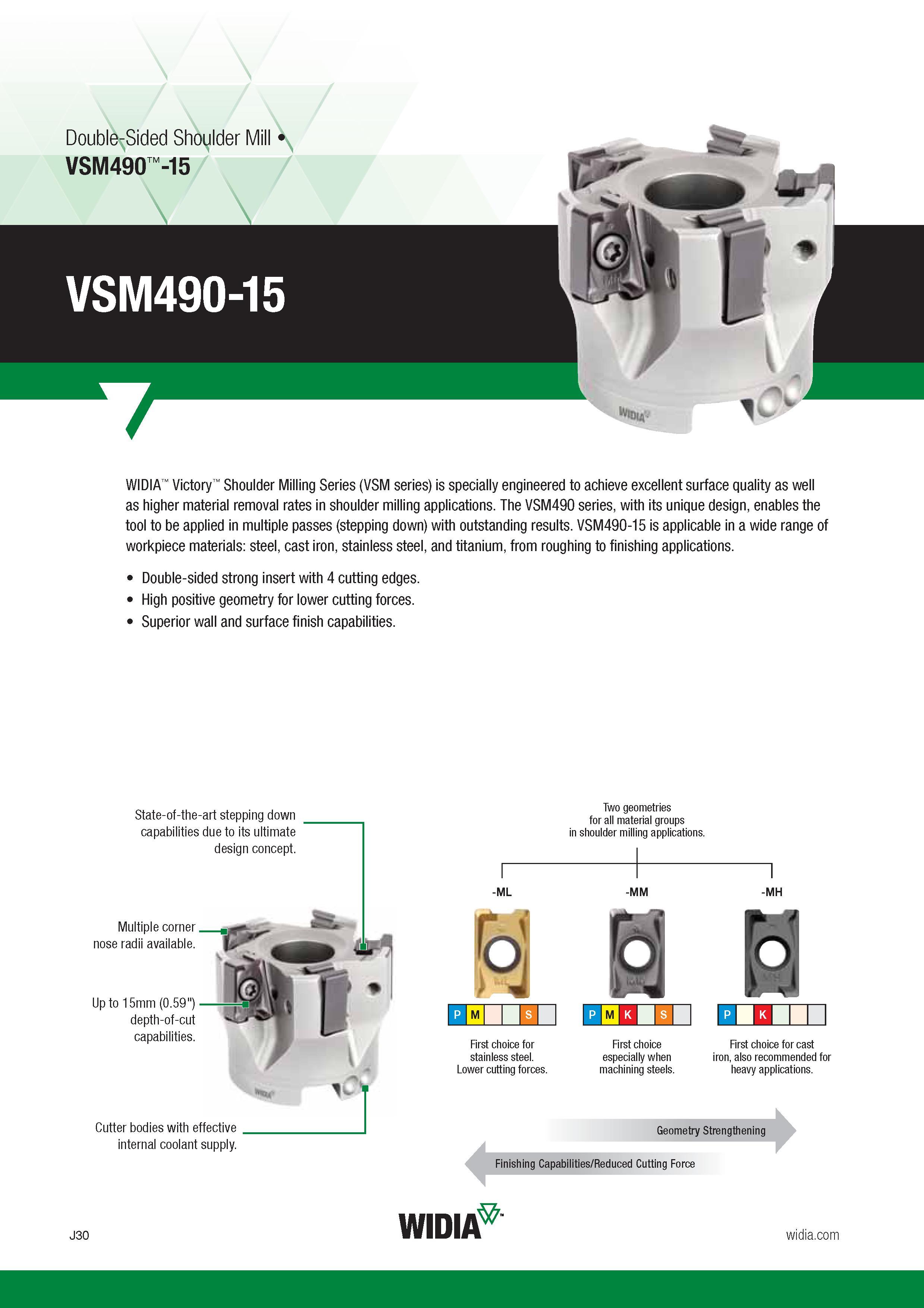

Widia Victory Shoulder Milling VSM490 series, with its unique design, enables the tool to be applied in multiple passes (stepping down) with outstanding results. VSM490-15 is applicable in a wide range of workpiece materials steel, cast iron, stainless steel, and titanium, from roughing to finishing applications. Double-sided strong insert with 4 cutting edges. High positive geometry for lower cutting forces. Superior wall and surface finish capabilities. State-of-the-art stepping down capabilities due to its ultimate design concept. Multiple corner nose radii available. Up to 15mm (0.59") depth-of-cut capabilities. Cutter bodies with effective internal coolant supply. -ML f O i M First choice for stainless steel. Lower cutting forces. Two geometries for all material groups in shoulder milling applications. -MM s p mia S First choice especially when machining steels. -MH First choice for cast iron, also recommended for heavy applications. Geometry Strengthening Finishing Capabilities/Reduced Cutting Force J30 Widia Double-Sided Shoulder VSM490 -15 VSM490-15 7 Widia Victory Shoulder Milling Series (VSM series) is specially engineered to achieve excellent surface quality as well as higher material removal rates in shoulder milling applications.
