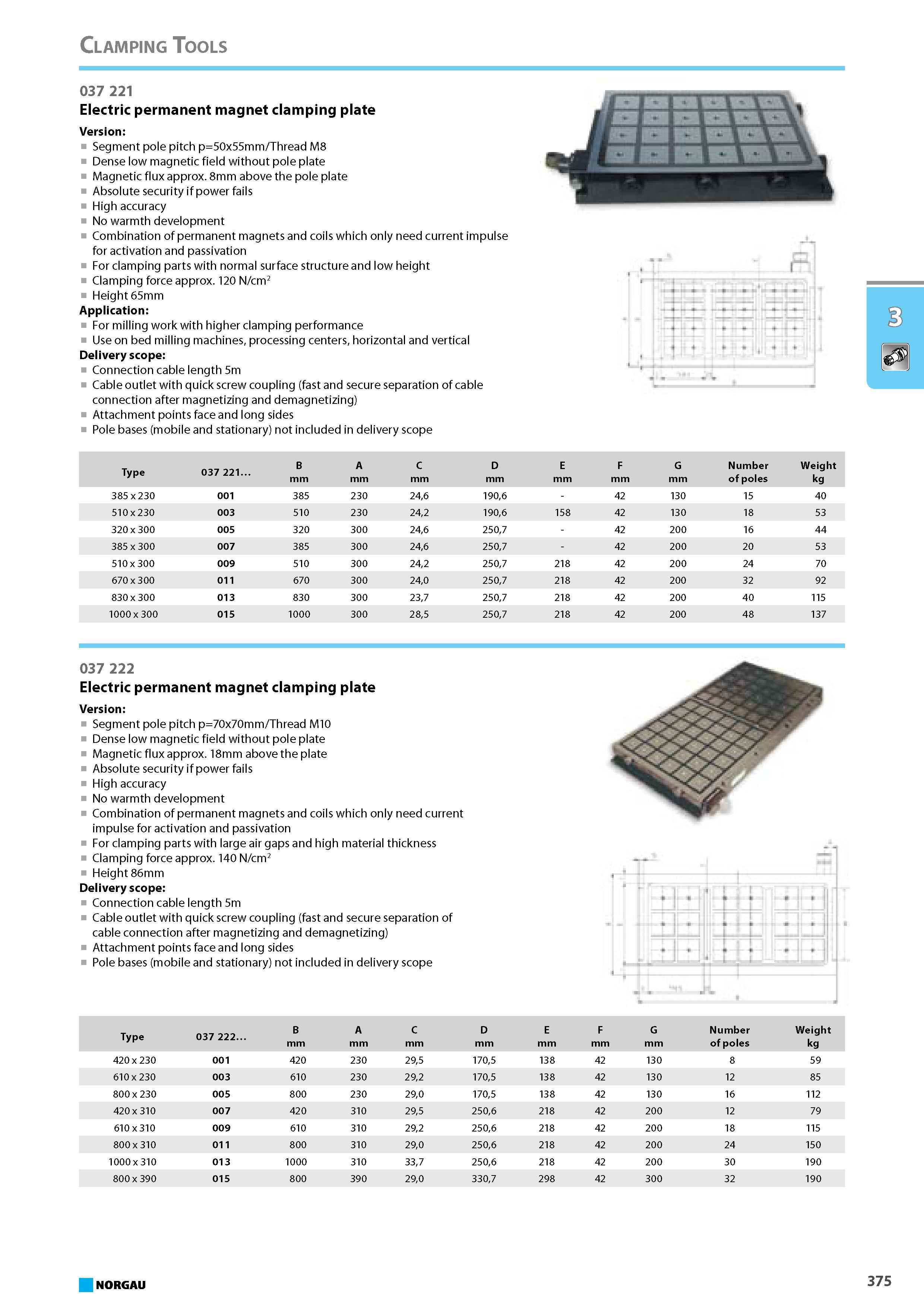

Electric permanent magnet clamping plate Version Segment pole pitch p50x55mm Thread M8 Dense low magnetic field without pole plate Magnetic flux approx. 8mm above the pole plate Absolute security if power fails High accuracy No warmth development Combination of permanent magnets and coils which only need current impulse for activation and passivation For clamping parts with normal surface structure and low height Clamping force approx. 120 N cm2 Height 65mm Application For milling work with higher clamping performance Use on bed milling machines processing centers horizontal and vertical Delivery scope Connection cable length 5m Cable outlet with quick screw coupling (fast and secure separation of cable connection after magnetizing and demagnetizing) Attachment points face and long sides Pole bases (mobile and stationary) not included in delivery scope Type 037 221 B mm A mm C mm D mm E mm F mm G mm Number of poles Weight kg 385 x 230 001 385 230 246 1906 - 42 130 15 40 510 x 230 003 510 230 242 1906 158 42 130 18 53 320 x 300 005 320 300 246 2507 - 42 200 16 44 385 x 300 007 385 300 246 2507 - 42 200 20 53 510 x 300 009 510 300 242 2507 218 42 200 24 70 670 x 300 011 670 300 240 2507 218 42 200 32 92 830 x 300 013 830 300 237 2507 218 42 200 40 115 1000 x 300 015 1000 300 285 2507 218 42 200 48 137 037 222 Electric permanent magnet clamping plate Version Segment pole pitch p70x70mm Thread M10 Dense low magnetic field without pole plate Magnetic flux approx. 18mm above the plate Absolute security if power fails High accuracy No warmth development Combination of permanent magnets and coils which only need current impulse for activation and passivation For clamping parts with large air gaps and high material thickness Clamping force approx. 140 N cm2 Height 86mm Delivery scope Connection cable length 5m Cable outlet with quick screw coupling (fast and secure separation of cable connection after magnetizing and demagnetizing) Attachment points face and long sides Pole bases (mobile and stationary) not included in delivery scope Type 037 222. B mm A mm C mm D mm E mm F mm G mm Number of poles Weight kg 420 x 230 001 420 230 295 1705 138 42 130 8 59 610 x 230 003 610 230 292 1705 138 42 130 12 85 800 x 230 005 800 230 290 1705 138 42 130 16 112 420 x 310 007 420 310 295 2506 218 42 200 12 79 610x310 009 610 310 292 2506 218 42 200 18 115 800 x 310 011 800 310 290 2506 218 42 200 24 150 1000x 310 013 1000 310 337 2506 218 42 200 30 190 800 x 390 015 800 390 290 3307 298 42 300 32 190 NORGAU 375 Clamping Tools 037 221
