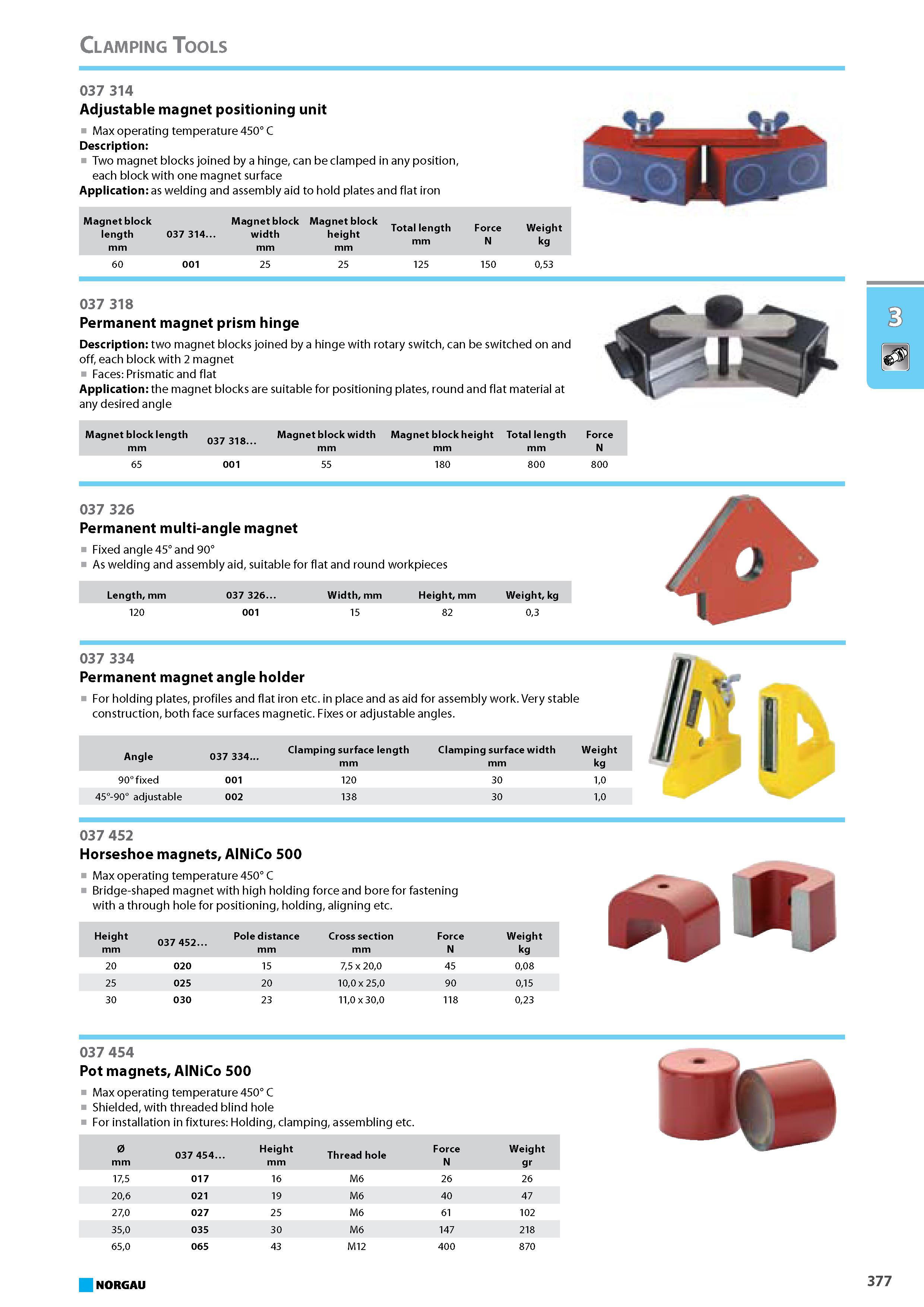

Adjustable magnet positioning unit Max operating temperature 450 C Description Two magnet blocks joined by a hinge can be clamped in any position each block with one magnet surface Application as welding and assembly aid to hold plates and flat iron Magnet block length 037 314. mm Magnet block width mm Magnet block height mm Total length mm Force N Weight kg 60 001 25 25 125 150 053 037 318 Permanent magnet prism hinge Description two magnet blocks joined by a hinge with rotary switch can be switched on and off each block with 2 magnet Faces Prismatic and flat Application the magnet blocks are suitable for positioning plates round and flat material at any desired angle Magnet block length mm 037 318 Magnet block width Magnet block height Total length Force mm N 037 326 Permanent multi-angle magnet Fixed angle 45 and 90 As welding and assembly aid suitable for flat and round workpieces Length mm 037 326. Width mm Height mm 120 001 15 82 Weight kg 03 037 334 Permanent magnet angle holder For holding plates profiles and flat iron etc. in place and as aid for assembly work. Very stable construction both face surfaces magnetic. Fixes or adjustable angles. Angle 037 334 Clamping surface length mm Clamping surface width mm Weight kg 90 fixed 001 120 30 10 45-90 adjustable 002 138 30 10 037 452 Horseshoe magnets AlNiCo 500 Max operating temperature 450 C Bridge-shaped magnet with high holding force and bore for fastening with a through hole for positioning holding aligning etc. Height mm 037 452. Pole distance mm Cross section mm Force N Weight kg 20 020 15 75 x 200 45 008 25 025 20 100 x 250 90 015 30 030 23 110 x 300 118 023 037 454 Pot magnets AlNiCo 500 Max operating temperature 450 C Shielded with threaded blind hole For installation in fixtures Holding clamping assembling etc. 0 037 454. Height Thread hole Force Weight mm N gr 17.5 20.6 27.0 35.0 65.0 017 021 027 035 065 16 19 25 30 43 M6 M6 M6 M6 M12 26 40 61 147 400 26 47 102 218 870 65 001 55 NORGAU 377 Clamping Tools 037 314
