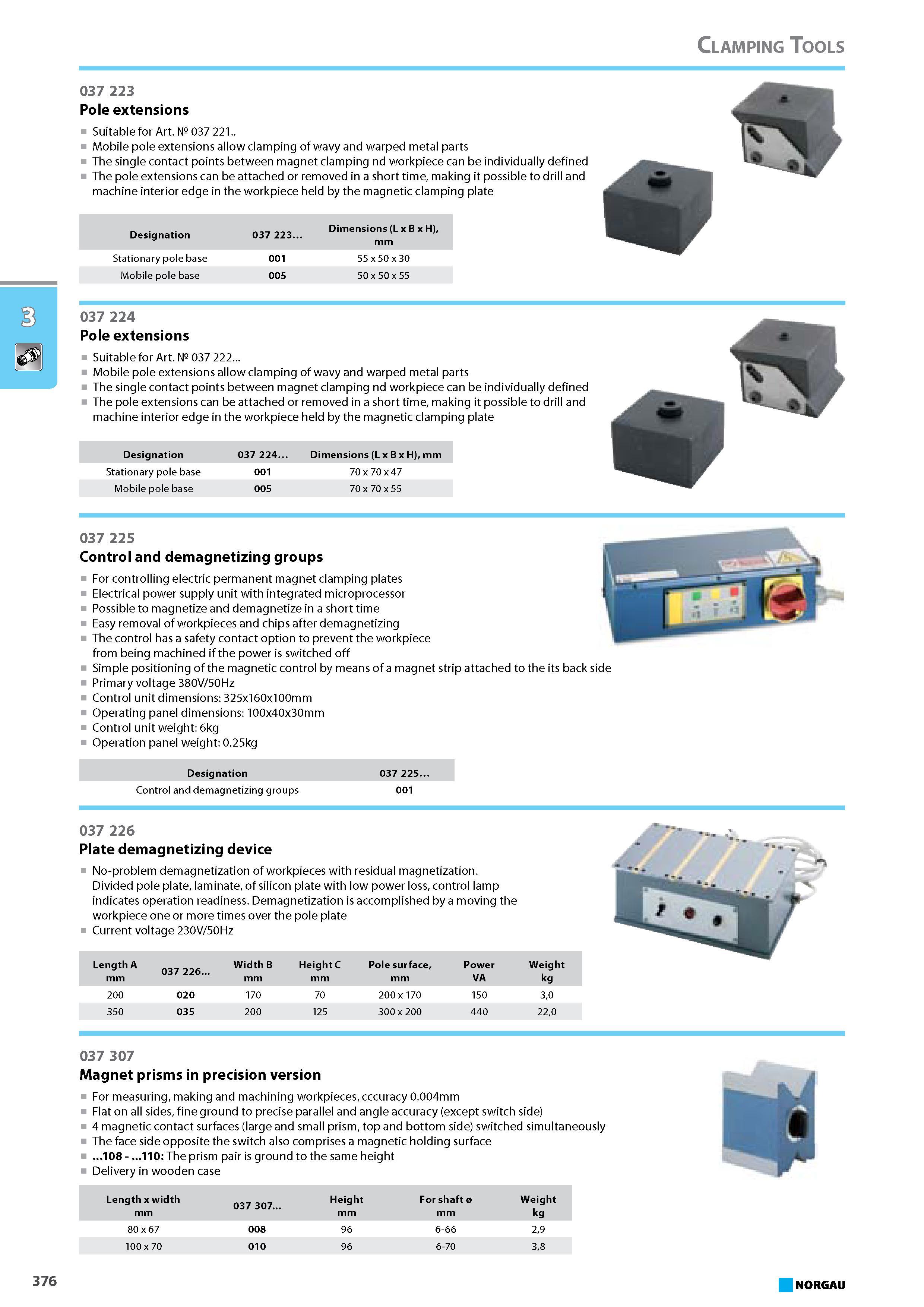

Control and demagnetizing groups For controlling electric permanent magnet clamping plates Electrical power supply unit with integrated microprocessor Possible to magn

Control and demagnetizing groups For controlling electric permanent magnet clamping plates Electrical power supply unit with integrated microprocessor Possible to magnetize and demagnetize in a short time Easy removal of workpieces and chips after demagnetizing The control has a safety contact option to prevent the workpiece from being machined if the power is switched off Simple positioning of the magnetic control by means of a magnet strip attached to the its back side Primary voltage 380V 50Hz Control unit dimensions 325x160x100mm Operating panel dimensions 100x40x30mm Control unit weight 6kg Operation panel weight 0.25kg Designation 037 225 Control and demagnetizing groups 037 226 Plate demagnetizing device No-problem demagnetization of workpieces with residual magnetization. Divided pole plate laminate of silicon plate with low power loss control lamp indicates operation readiness. Demagnetization is accomplished by a moving the workpiece one or more times over the pole plate Current voltage 230V 50Hz Length A mm 037 226 Width B mm Height C mm Pole surface mm Power VA Weight kg 200 020 170 70 200 x 170 150 30 350 035 200 125 300 x 200 440 220 037 307 Magnet prisms in precision version For measuring making and machining workpieces cccuracy 0.004mm Flat on all sides fine ground to precise parallel and angle accuracy (except switch side) 4 magnetic contact surfaces (large and small prism top and bottom side) switched simultaneously The face side opposite the switch also comprises a magnetic holding surface 108 - 110 The prism pair is ground to the same height Delivery in wooden case Length x width mm 037 307 Height mm For shaft 0 mm Weight kg 80 x 67 008 96 6-66 29 100 x 70 010 96 6-70 38 001 376 NORGAU Clamping Tools 037 223 Pole extensions Suitable for Art. N2 037 221 Mobile pole extensions allow clamping of wavy and warped metal parts The single contact points between magnet clamping nd workpiece can be individually defined The pole extensions can be attached or removed in a short time making it possible to drill and machine interior edge in the workpiece held by the magnetic clamping plate Designation 037 223. Dimensions (L x B x H) mm Stationary pole base 001 55 x 50 x 30 Mobile pole base 005 50 x 50 x 55 037 224 Pole extensions Suitable for Art. N 037 222 Mobile pole extensions allow clamping of wavy and warped metal parts The single contact points between magnet clamping nd workpiece can be individually defined The pole extensions can be attached or removed in a short time making it possible to drill and machine interior edge in the workpiece held by the magnetic clamping plate Designation 037 224. Dimensions (L x B x H) mm Stationary pole base 001 70 x 70 x 47 Mobile pole base 005 70 x 70 x 55 037 225
