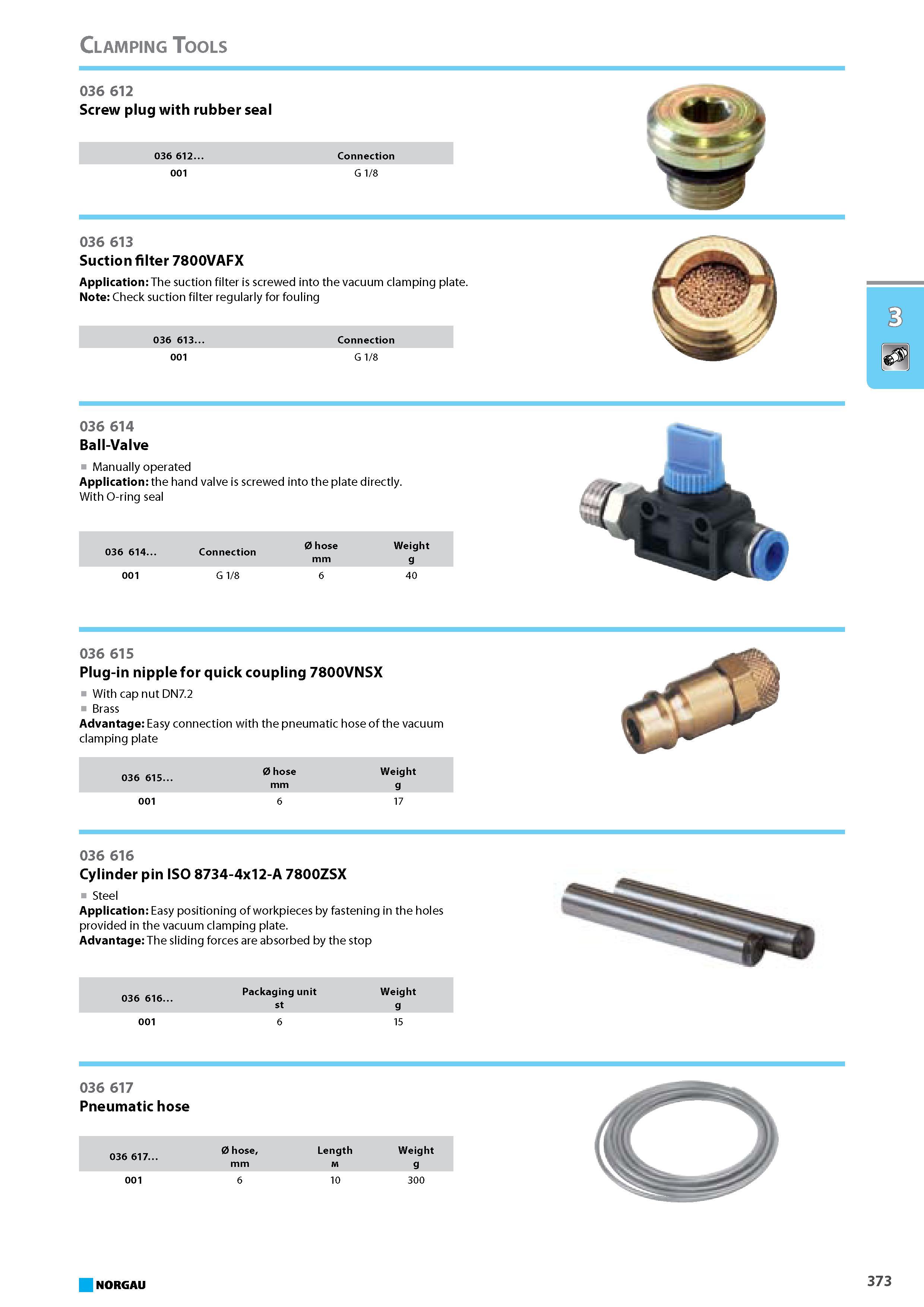

Ball-Valve Manually operated Application the hand valve is screwed into the plate directly. With O-ring seal 036 614. Connection 0 hose Weight mm g G 1/8 036 615 Plug-in nipple for quick coupling 7800VNSX With cap nut DN7.2 Brass Advantage Easy connection with the pneumatic hose of the vacuum clamping plate 001 6 40 036 615. 0 hose Weight mm g 036 616 Cylinder pin ISO 8734-4x12-A 7800ZSX Steel Application Easy positioning of workpieces by fastening in the holes provided in the vacuum clamping plate. Advantage The sliding forces are absorbed by the stop 001 6 17 NORGAU 373 Clamping Tools 036 612 Screw plug with rubber seal Connection G 1/8 036 613 Suction filter 7800VAFX Application The suction filter is screwed into the vacuum clamping plate. Note Check suction filter regularly for fouling Connection G 1 8 001 001 036 614
