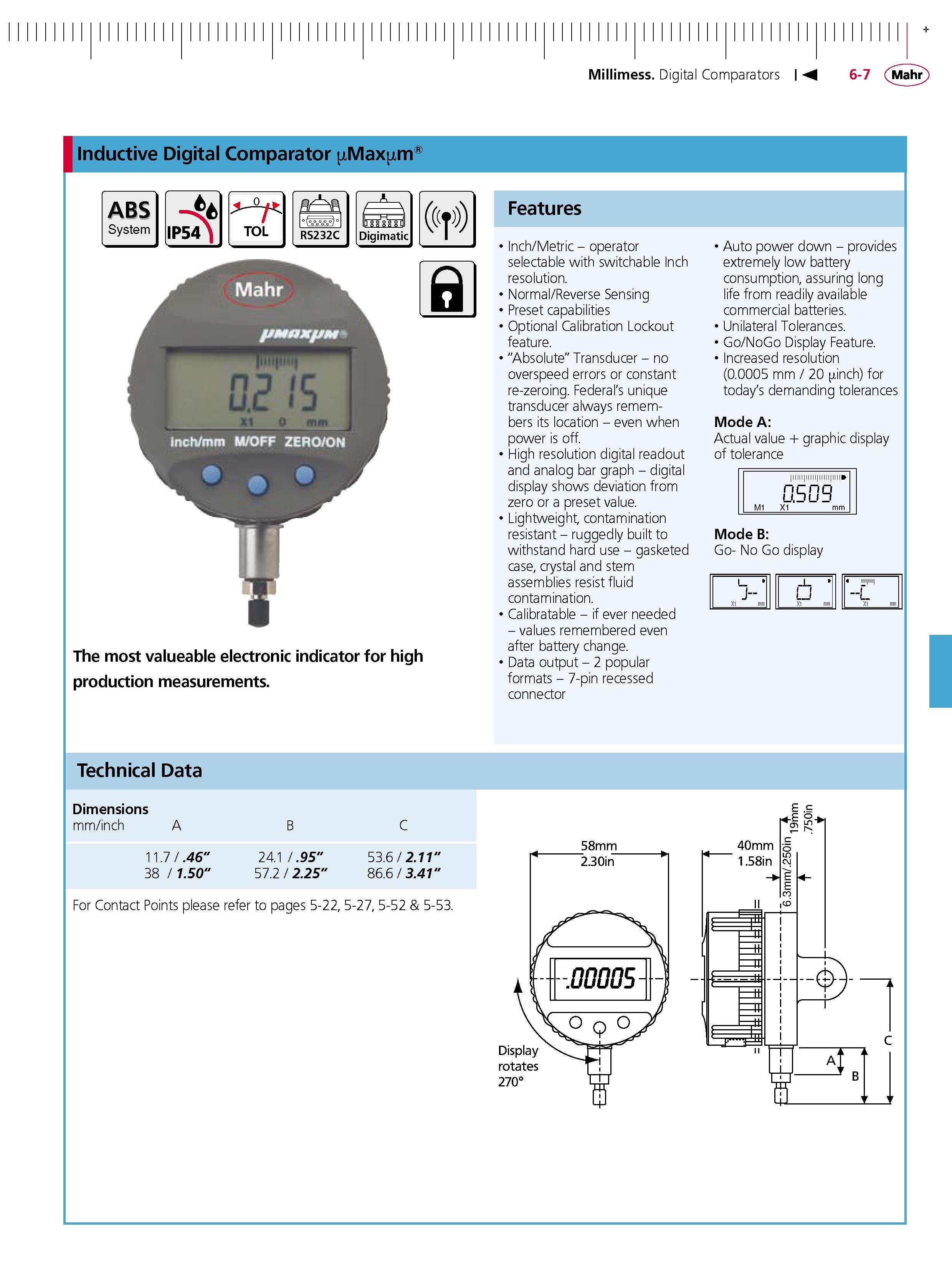

Millimess. Digital Comparators Inductive Digital Comparator Max m ABS System The most valueable electronic indicator for high production measurements. Features Inch Metric - operator selectable with switchable Inch resolution. Normal Reverse Sensing Preset capabilities Optional Calibration Lockout feature. "Absolute" Transducer - no overspeed errors or constant re-zeroing. Federal's unique transducer always remembers its location - even when power is off. High resolution digital readout and analog bar graph - digital display shows deviation from zero or a preset value. Lightweight contamination resistant - ruggedly built to withstand hard use - gasketed case crystal and stem assemblies resist fluid contamination. Calibratable - if ever needed - values remembered even after battery change. Data output - 2 popular formats - 7-pin recessed connector Auto power down - provides extremely low battery consumption assuring long life from readily available commercial batteries. Unilateral Tolerances. Go NoGo Display Feature. Increased resolution (0.0005 mm 20 inch) for today's demanding tolerances Mode A Actual value graphic display of tolerance ncnn LULU M1 X1 m Mode B Go- No Go display LJ i iiiii iini L Technical Data Dimensions mm inch A B C 11.7 .46" 24.1 .95" 53.6 2.11" 38 1.50" 57.2 2.25" 86.6 3.41" . 58mm For Contact Points please refer to pages 5-22 5-27 5-52 & 5-53. 40mm 158in X1 X1 X1
