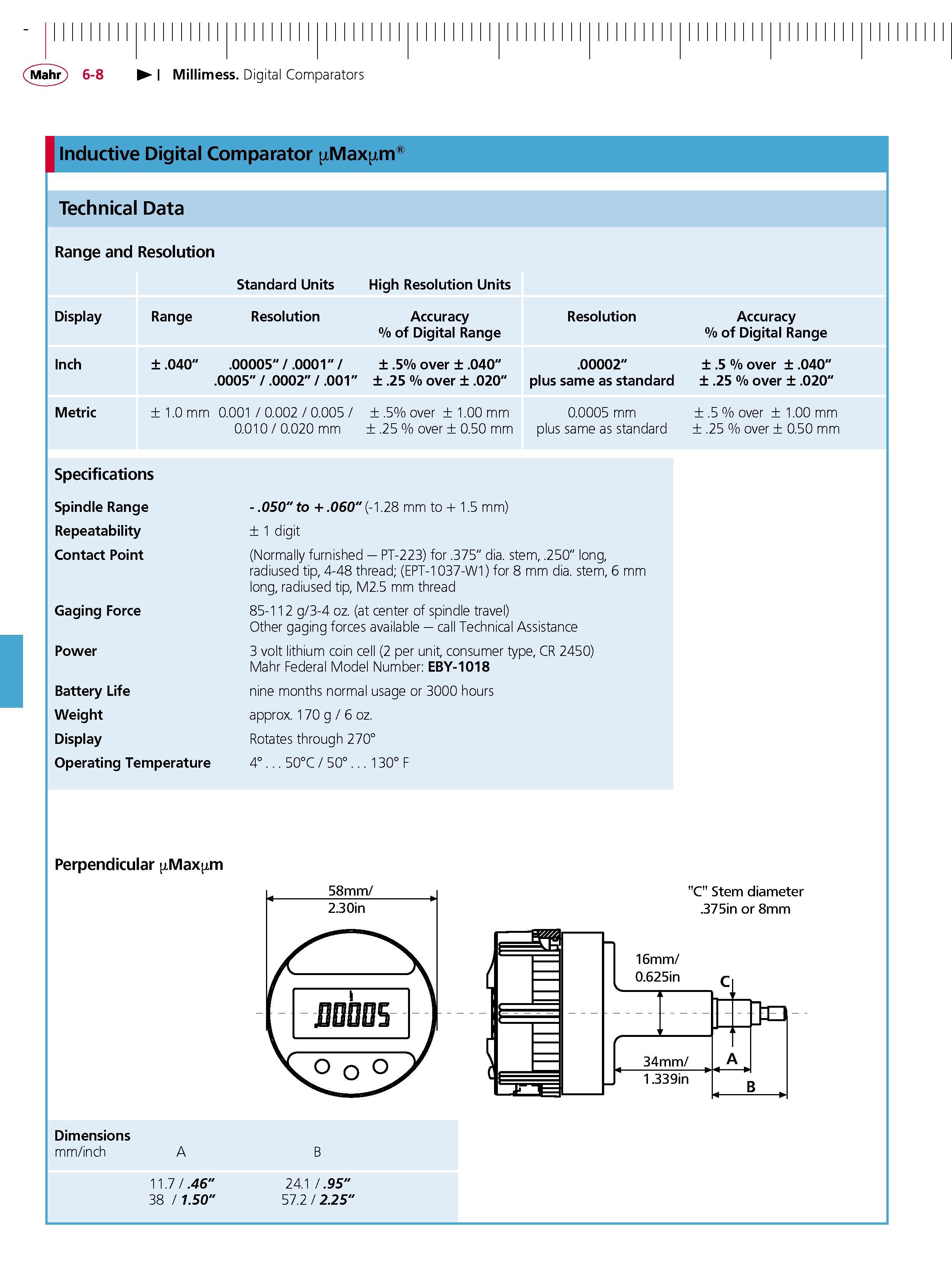

Millimess. Digital Comparators Inductive Digital Comparator Max m Technical Data Range and Resolution Display Inch Metric Range .040" Standard Units Resolution High Resolution Units Accuracy % of Digital Range .00005" .0001" .5% over .040" .0005" .0002" .001" .25 % over .020" 1.0 mm 0.001 0.002 0.005 .5% over 1.00 mm Resolution .00002" plus same as standard 0.0005 mm 0.010 0.020 mm .25 % over 0.50 mm plus same as standard Accuracy % of Digital Range .5 % over .040" .25 % over .020" .5 % over 1.00 mm .25 % over 0.50 mm Specifications Spindle Range - .050" to .060" (-1.28 mm to 1.5 mm) Repeatability 1 digit Contact Point (Normally furnished PT-223) for .375" dia. stem .250" long radiused tip 4-48 thread; (EPT-1037-W1) for 8 mm dia. stem 6 mm long radiused tip M2.5 mm thread Gaging Force 85-112 g 3-4 oz. (at center of spindle travel) Other gaging forces available call Technical Assistance Power 3 volt lithium coin cell (2 per unit consumer type CR 2450) Mahr Federal Model Number eBy-1018 Battery Life nine months normal usage or 3000 hours Weight approx. 170 g 6 oz. Display Rotates through 270 Operating Temperature 4 50C 50 130 F Perpendicular Max m
