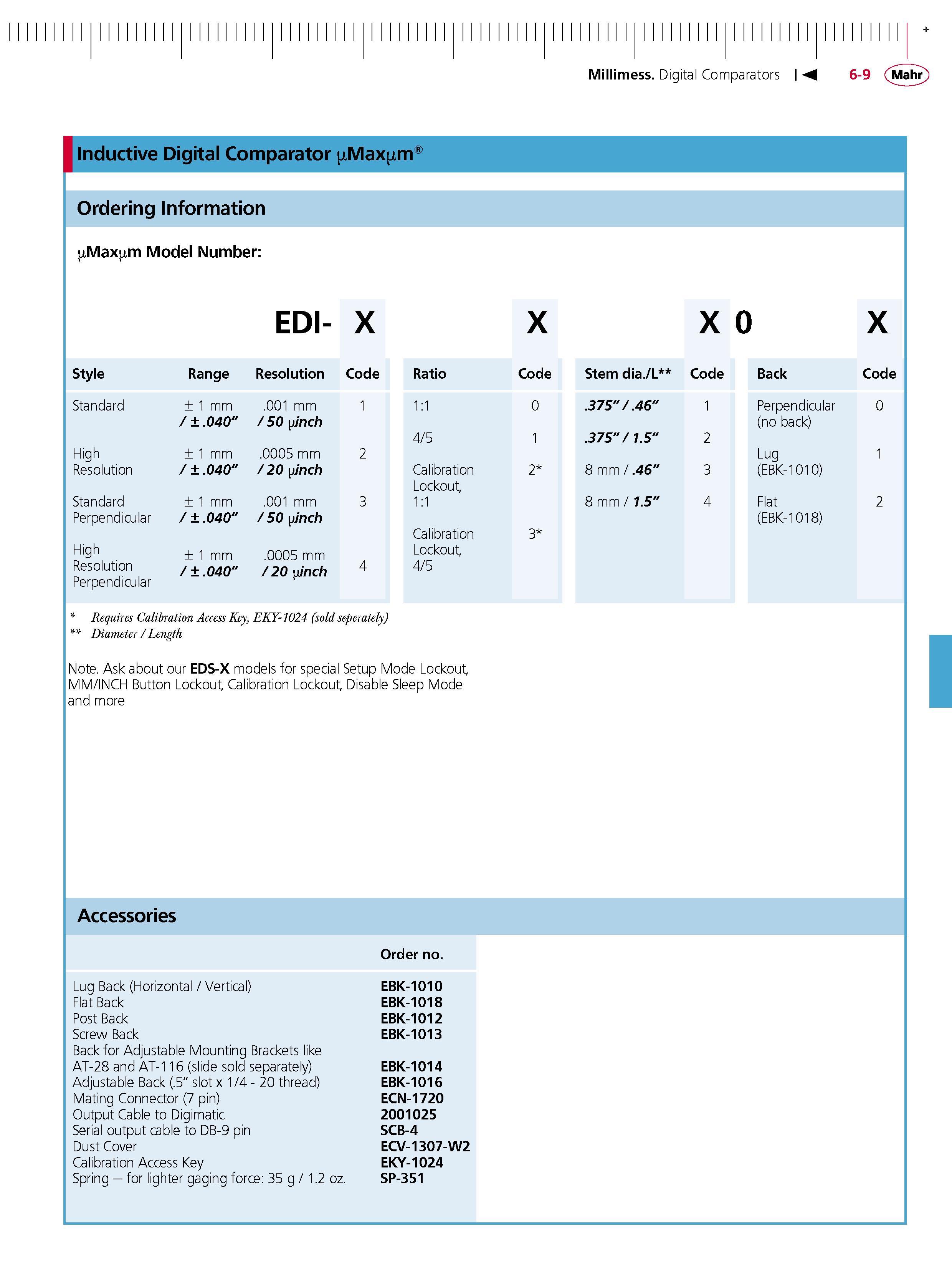

Millimess. Digital Comparators Inductive Digital Comparator Max m Ordering Information Max m Model Number EDI- X Style Standard High Resolution Standard Perpendicular High Resolution Perpendicular Range Resolution 1 mm .040" 1 mm .040" 1 mm .040" 1 mm .040" .001 mm 50 yjnch .0005 mm 20 yjnch .001 mm 50 yjnch .0005 mm 20 yjnch Code 1 2 X Ratio Code 1:1 0 4 5 1 Calibration Lockout 1:1 2 Calibration Lockout 4 5 3 X 0 X Stem dia. L Code Back Code .375" .46" 1 Perpendicular 0 (no back) .375" 1.5" 2 Lug 1 8 mm .46" 3 (EBK-1010) 8 mm 1.5" 4 Flat 2 (EBK-1018) Requires Calibration Access Key EKY-1024 (sold seperately) Diameter Length Note. Ask about our EDS-X models for special Setup Mode Lockout MM INCH Button Lockout Calibration Lockout Disable Sleep Mode and more Accessories Order no. Lug Back (Horizontal Vertical) EBK-1010 Flat Back EBK-1018 Post Back EBK-1012 Screw Back EBK-1013 Back for Adjustable Mounting Brackets like AT-28 and AT-116 (slide sold separately) EBK-1014 Adjustable Back (.5" slot x 1 4 - 20 thread) EBK-1016 Mating Connector (7 pin) ECN-1720 Output Cable to Digimatic 2001025 Serial output cable to DB-9 pin SCB-4 Dust Cover ECV-1307-W2 Calibration Access Key EKY-1024 Spring for lighter gaging force 35 g 1.2 oz. SP-351 3 4
