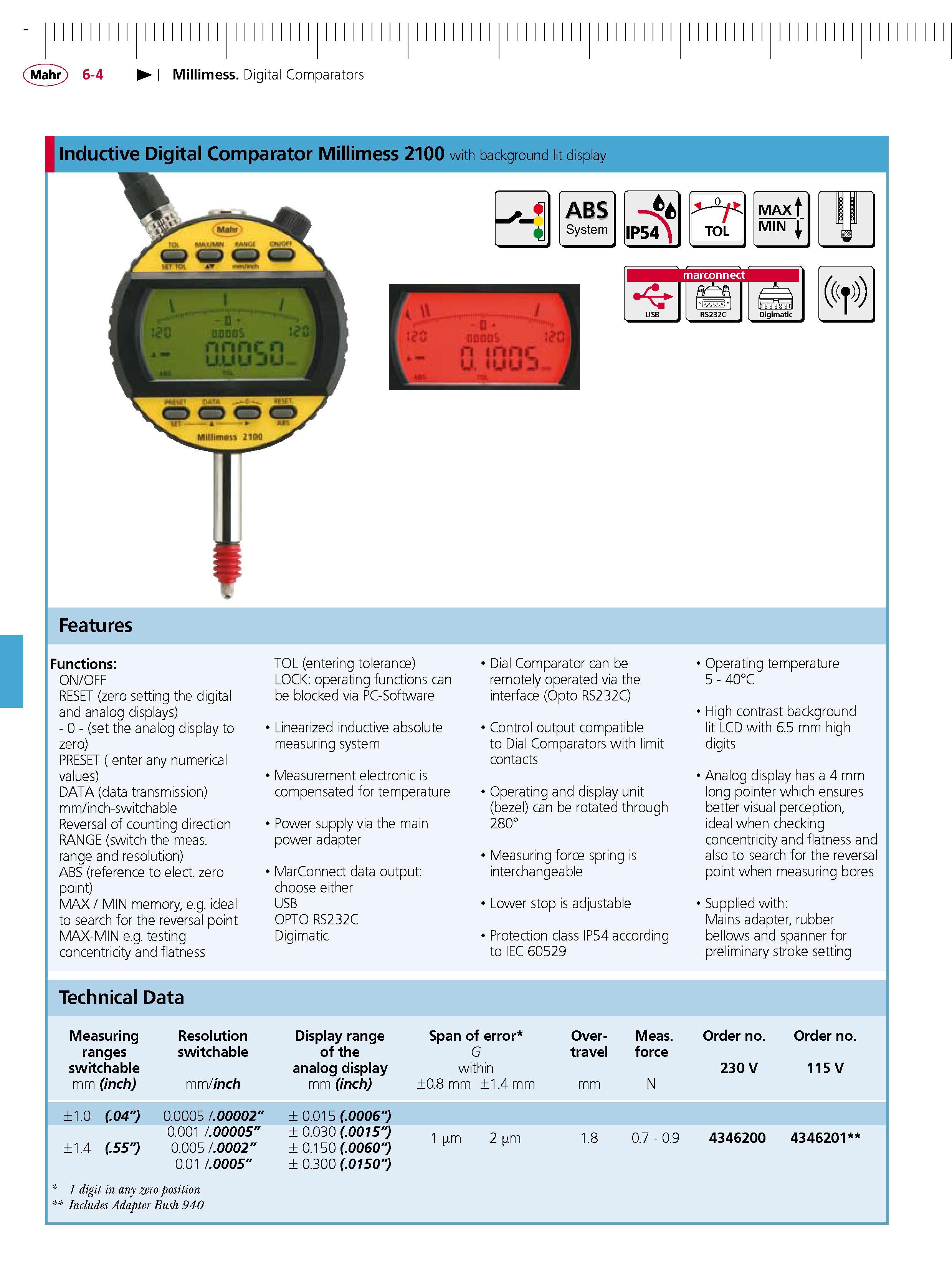

Millimess. Digital Comparators Inductive Digital Comparator Millimess 2100 with background lit display Features Functions ON OFF RESET (zero setting the digital and analog displays) - 0 - (set the analog display to zero) PRESET ( enter any numerical values) DATA (data transmission) mm inch-switchable Reversal of counting direction RANGE (switch the meas. range and resolution) ABS (reference to elect. zero point) MAX MIN memory e.g. ideal to search for the reversal point MAX-MIN e.g. testing concentricity and flatness Technical Data TOL (entering tolerance) LOCK operating functions can be blocked via PC-Software Linearized inductive absolute measuring system Measurement electronic is compensated for temperature Power supply via the main power adapter MarConnect data output choose either USB OPTO RS232C Digimatic Dial Comparator can be remotely operated via the interface (Opto RS232C) Control output compatible to Dial Comparators with limit contacts Operating and display unit (bezel) can be rotated through 280 Measuring force spring is interchangeable Lower stop is adjustable Protection class IP54 according to IEC 60529 Measuring ranges switchable mm (inch) 1.0 1.4 (.04") (.55") Resolution switchable mm inch 0.0005 .00002 0.001 .00005" 0.005 .0002" 0.01 .0005" Display range of the analog display mm (inch) 0.015 (.0006") 0.030 (.0015) 0.150 (.0060") 0.300 (.0150") Span of error Over- Meas. G travel force within 0.8 mm 1.4 mm mm N 1 m 2 m 1.8 0.7 - 0.9 Operating temperature 5 - 40C High contrast background lit LCD with 6.5 mm high digits Analog display has a 4 mm long pointer which ensures better visual perception ideal when checking concentricity and flatness and also to search for the reversal point when measuring bores Supplied with Mains adapter rubber bellows and spanner for preliminary stroke setting Order no. Order no. 230V 115V 4346200 4346201 1 digit in any zero position ' Includes Adapter Bush 940
