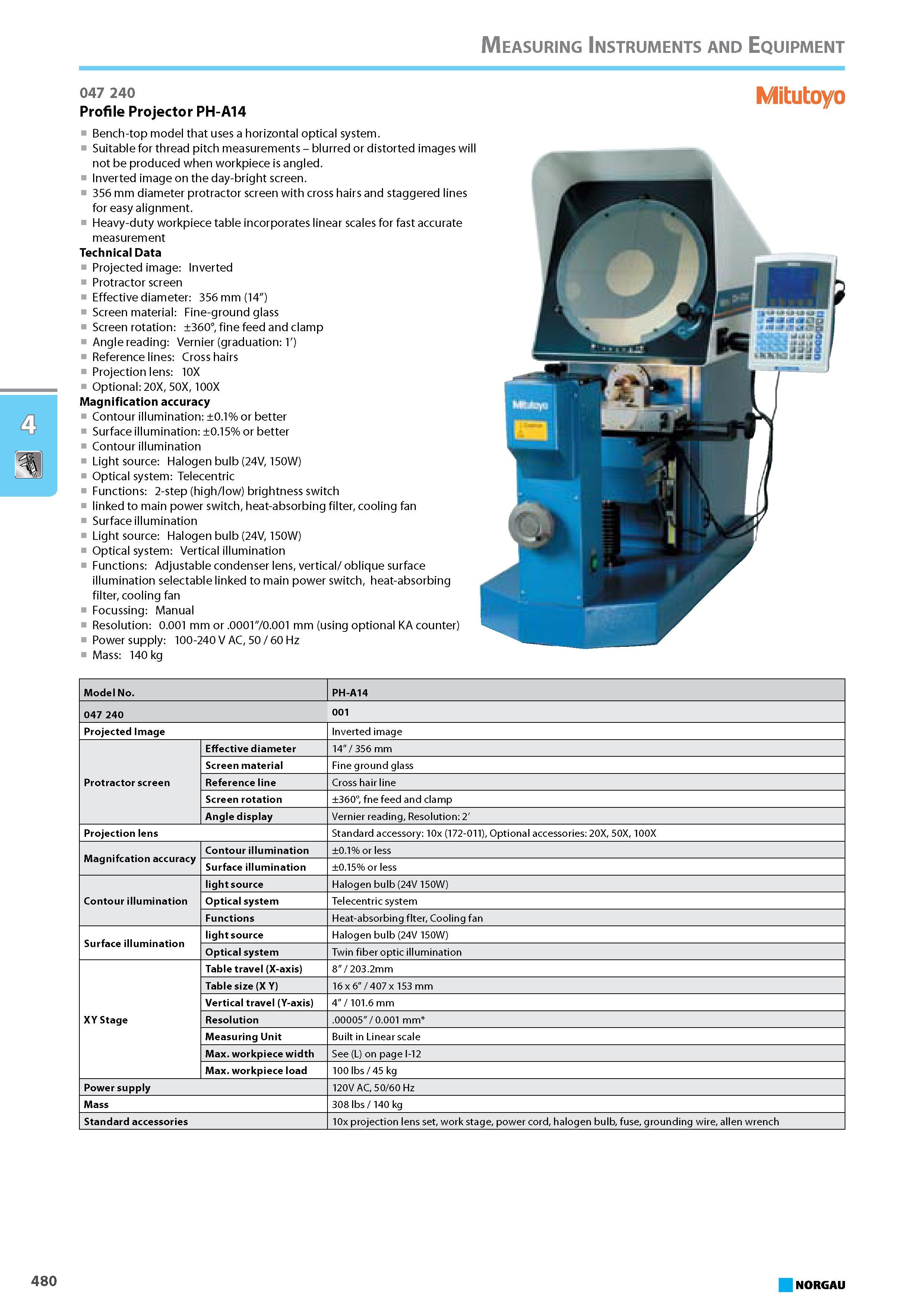

Profile Projector PH-A14 Bench-top model that uses a horizontal optical system Suitable for thread pitch measurements - blurred or distorted images will not be produced when workpiece is angled. Inverted image on the day-bright screen. 356 mm diameter protractor screen with cross hairs and staggered lines for easy alignment. Heavy-duty workpiece table incorporates linear scales for fast accurate measurement Technical Data Projected image Inverted Protractor screen Effective diameter 356 mm (14) Screen material Fine-ground glass Screen rotation 360 fine feed and clamp Angle reading Vernier (graduation 1') Reference lines Cross hairs Projection lens 10X Optional 20X 50X 100X Magnification accuracy Contour illumination 0.1% or better Surface illumination 0.15% or better Contour illumination Light source Halogen bulb (24V 150W) Optical system Telecentric Functions 2-step (high low) brightness switch linked to main power switch heat-absorbing filter cooling fan Surface illumination Light source Halogen bulb (24V 150W) Optical system Vertical illumination Functions Adjustable condenser lens vertical oblique surface illumination selectable linked to main power switch heat-absorbing filter cooling fan Focussing Manual Resolution 0.001 mm or .000170.001 mm (using optional KA counter) Power supply 100-240 V AC 50 60 Hz Mass 140 kg Model No. PH-A14 047 240 001 Projected Image Inverted image Protractor screen Effective diameter 14" 356 mm Screen material Fine ground glass Reference line Cross hair line Screen rotation 360 fne feed and clamp Angle display Vernier reading Resolution 2' Projection lens Standard accessory 10x (172-011) Optional accessories 20X 50X 100X Magnifcation accuracy Contour illumination 0.1% or less Surface illumination 0.15% or less Contour illumination light source Halogen bulb (24V 150W) Optical system Telecentric system Functions Heat-absorbing flter Cooling fan Surface illumination light source Halogen bulb (24V 150W) Optical system Twin fiber optic illumination XY Stage Table travel (X-axis) 8" 203.2mm Table size (X Y) 16 x 6" 407 x 153 mm Vertical travel (Y-axis) 4" 101.6 mm Resolution .00005" 0.001 mm Measuring Unit Built in Linear scale Max. workpiece width See (L) on page I-12 Max. workpiece load 100 lbs 45 kg Power supply 120 V AC 50 60 Hz Mass 308 lbs 140 kg Standard accessories 10x projection lens set work stage power cord halogen bulb fuse grounding wire allen wrench NORGAU Measuring Instruments and Equipment 480
