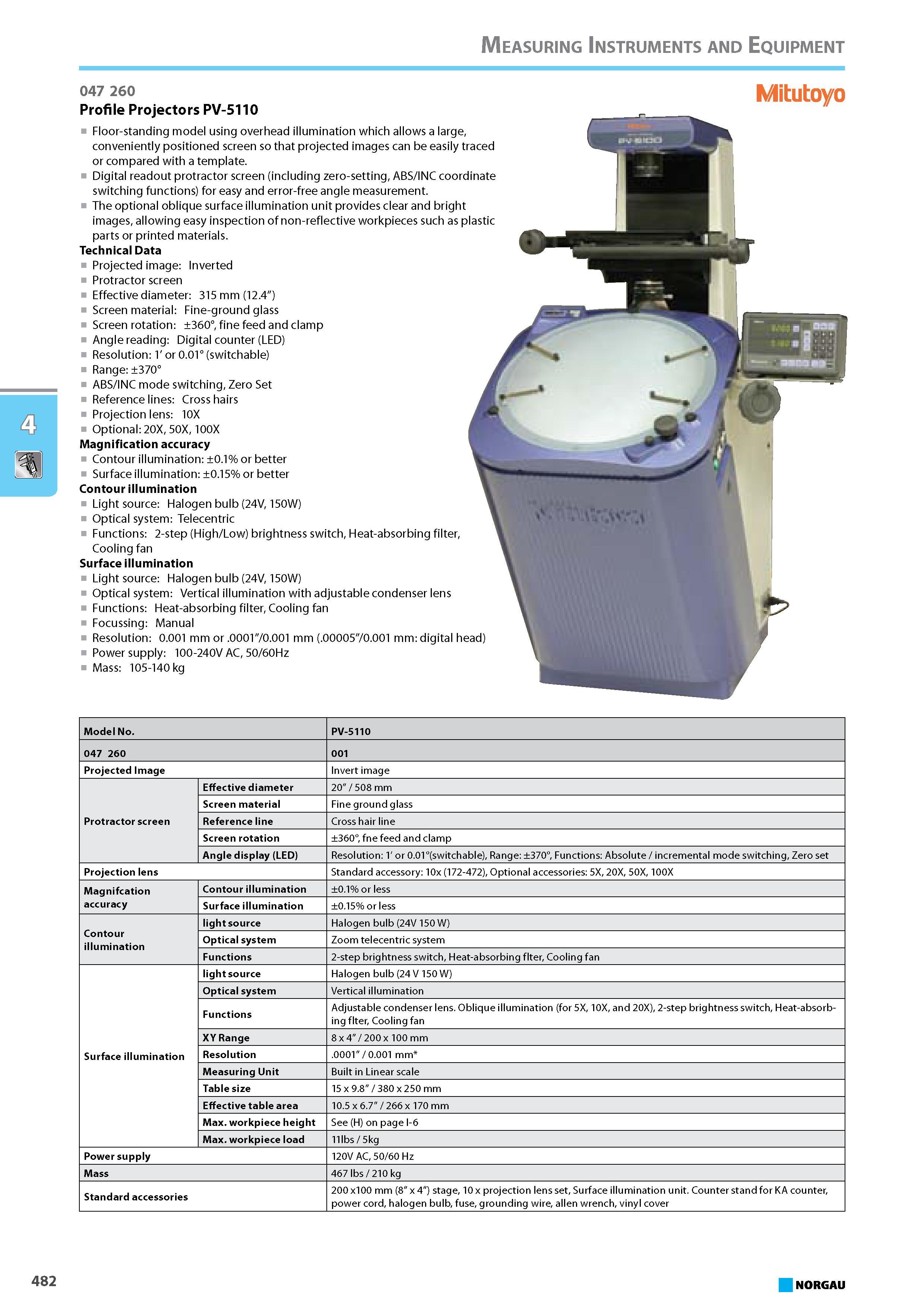

Profile Projectors PV-5110 Floor-standing model using overhead illumination which allows a large conveniently positioned screen so that projected images can be easily traced or compared with a template. Digital readout protractor screen (including zero-setting ABS INC coordinate switching functions) for easy and error-free angle measurement. The optional oblique surface illumination unit provides clear and bright images allowing easy inspection of non-reflective workpieces such as plastic parts or printed materials. Technical Data Projected image Inverted Protractor screen Effective diameter 315 mm (12.4) Screen material Fine-ground glass Screen rotation 360 fine feed and clamp Angle reading Digital counter (LED) Resolution 1' or 0.01 (switchable) Range 370 ABS INC mode switching Zero Set Reference lines Cross hairs Projection lens 10X Optional 20X 50X 100X Magnification accuracy Contour illumination 0.1% or better Surface illumination 0.15% or better Contour illumination Light source Halogen bulb (24V 150W) Optical system Telecentric Functions 2-step (High Low) brightness switch Heat-absorbing filter Cooling fan Surface illumination Light source Halogen bulb (24V 150W) Optical system Vertical illumination with adjustable condenser lens Functions Heat-absorbing filter Cooling fan Focussing Manual Resolution 0.001 mm or .000170.001 mm (.0000570.001 mm digital head) Power supply 100-240V AC 50 60Hz Mass 105-140 kg Model No. PV-5110 047 260 001 Projected Image Invert image Effective diameter 20 508 mm Screen material Fine ground glass Protractor screen Reference line Cross hair line Screen rotation 360 fne feed and clamp Angle display (LED) Resolution 1' or 0.01(switchable) Range 370 Functions Absolute incremental mode switching Zero set Projection lens Standard accessory 10x (172-472) Optional accessories 5X 20X 50X 100X Magnifcation Contour illumination 0.1% or less accuracy Surface illumination 0.15% or less Contour illumination light source Halogen bulb (24V 150 W) Optical system Zoom telecentric system Functions 2-step brightness switch Heat-absorbing flter Cooling fan light source Halogen bulb (24 V 150 W) Optical system Vertical illumination Functions Adjustable condenser lens. Oblique illumination (for 5X 10X and 20X) 2-step brightness switch Heat-absorbing flter Cooling fan XY Range 8 x 4 200 x 100 mm Surface illumination Resolution .0001 0.001 mm Measuring Unit Built in Linear scale Table size 15 x 9.8 380 x 250 mm Effective table area 10.5 x 6.7 266 x 170 mm Max. workpiece height See (H) on page I-6 Max. workpiece load 11 lbs 5kg Power supply 120V AC 50 60 Hz Mass 467 lbs 210 kg Standard accessories 200 x100 mm (8 x 4) stage 10 x projection lens set Surface illumination unit. Counter stand for KA counter power cord halogen bulb fuse grounding wire allen wrench vinyl cover NORGAU Measuring Instruments and Equipment 482 047 260
