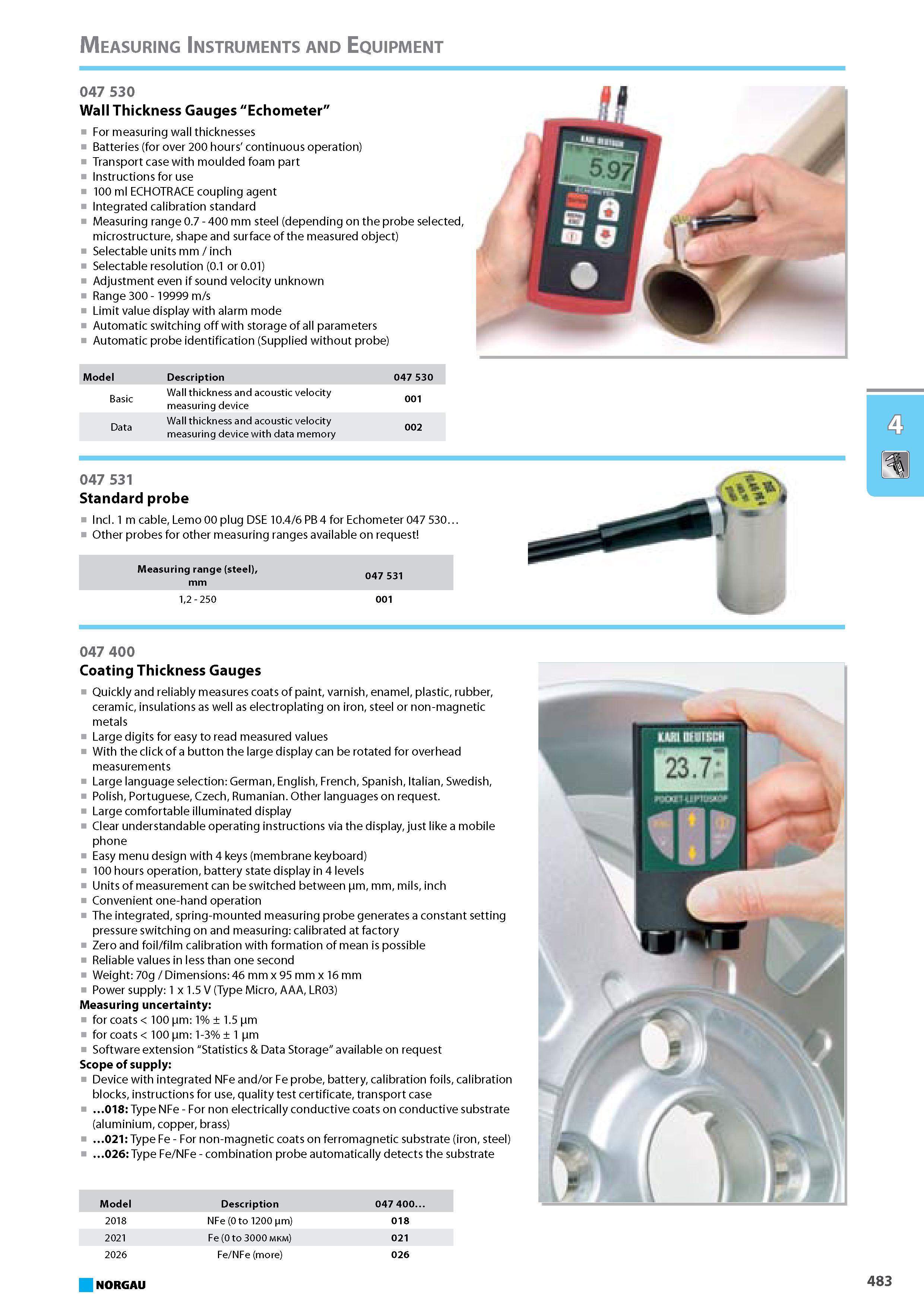

Wall Thickness Gauges Echometer For measuring wall thicknesses Batteries for over 200 hours' continuous operation Transport case with moulded foam part Instructions for use 100 ml ECHOTRACE coupling agent Integrated calibration standard Measuring range 0.7 - 400 mm steel (depending on the probe selected microstructure shape and surface of the measured object) Selectable units mm inch Selectable resolution (0.1 or 0.01) Adjustment even if sound velocity unknown Range 300 - 19999 m s Limit value display with alarm mode Automatic switching off with storage of all parameters Automatic probe identification (Supplied without probe) Model Description 047 530 Basic Wall thickness and acoustic velocity measuring device 001 Data Wall thickness and acoustic velocity measuring device with data memory 002 047 531 Standard probe Incl. 1 m cable Lemo 00 plug DSE 10.4 6 PB 4 for Echometer 047 530. Other probes for other measuring ranges available on request Measuring range (steel) mm 047 531 12 - 250 047 400 Coating Thickness Gauges Quickly and reliably measures coats of paint varnish enamel plastic rubber ceramic insulations as well as electroplating on iron steel or non-magnetic metals Large digits for easy to read measured values With the click of a button the large display can be rotated for overhead measurements Large language selection German English French Spanish Italian Swedish Polish Portuguese Czech Rumanian. Other languages on request. Large comfortable illuminated display Clear understandable operating instructions via the display just like a mobile phone Easy menu design with 4 keys (membrane keyboard) 100 hours operation battery state display in 4 levels Units of measurement can be switched between pm mm mils inch Convenient one-hand operation The integrated spring-mounted measuring probe generates a constant setting pressure switching on and measuring calibrated at factory Zero and foil film calibration with formation of mean is possible Reliable values in less than one second Weight 70g Dimensions 46 mm x 95 mm x 16 mm Power supply 1 x 1.5 V (Type Micro AAA LR03) Measuring uncertainty for coats 100 pm 1% 1.5 pm for coats 100 pm 1-3% 1 pm Software extension "Statistics & Data Storage available on request Scope of supply Device with integrated NFe and or Fe probe battery calibration foils calibration blocks instructions for use quality test certificate transport case .018 Type NFe - For non electrically conductive coats on conductive substrate (aluminium copper brass) .021 Type Fe - For non-magnetic coats on ferromagnetic substrate (iron steel) .026 Type Fe NFe - combination probe automatically detects the substrate Model Description 047 400. 2018 NFe (0 to 1200 pm) 018 2021 Fe (0 to 3000 mkm) 021 2026 Fe NFe (more) 026 001 NORGAU 483 Measuring Instruments and Equipment 047 530
