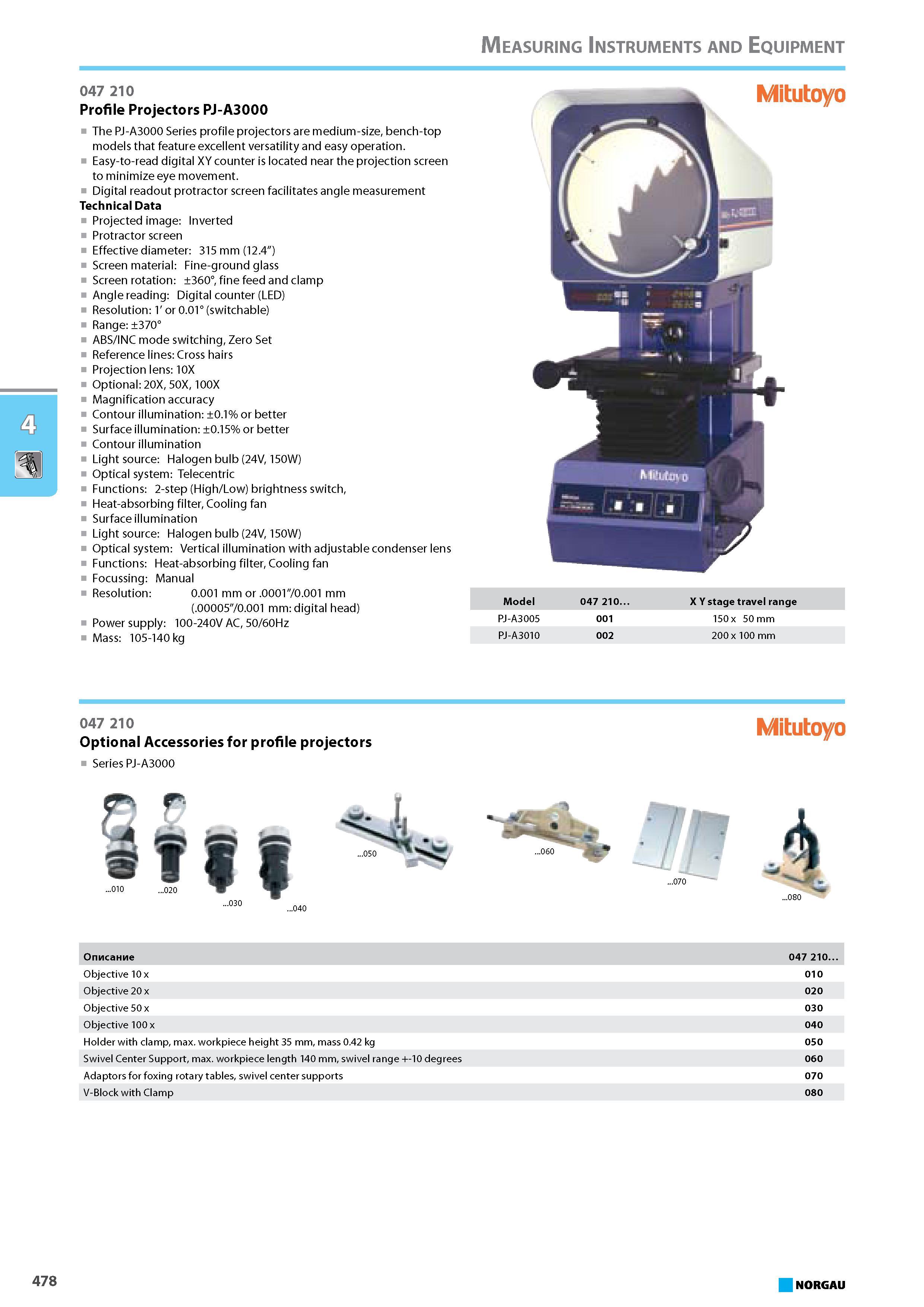

The PJ-A3000 Series profile projectors are medium-size bench-top models that feature excellent versatility and easy operation. Easy-to-read digital XY counter is located near the projection screen to minimize eye movement. Digital readout protractor screen facilitates angle measurement Technical Data Projected image Inverted Protractor screen Effective diameter 315 mm (12.4) Screen material Fine-ground glass Screen rotation 360 fine feed and clamp Angle reading Digital counter (LED) Resolution 1' or 0.01 (switchable) Range 370 ABS INC mode switching Zero Set Reference lines Cross hairs Projection lens 10X Optional 20X 50X 100X Magnification accuracy Contour illumination 0.1% or better Surface illumination 0.15% or better Contour illumination Light source Halogen bulb (24V 150W) Optical system Telecentric Functions 2-step (High Low) brightness switch Heat-absorbing filter Cooling fan Surface illumination Light source Halogen bulb (24V 150W) Optical system Vertical illumination with adjustable condenser lens Functions Heat-absorbing filter Cooling fan Focussing Manual Resolution 0.001 mm or .000170.001 mm (.00005 0.001 mm digital head) Power supply 100-240V AC 50 60Hz Mass 105-140 kg Model 047 210. X Y stage travel range PJ-A3005 001 150 x 50 mm PJ-A3010 002 200 x 100 mm 047 210 Optional Accessories for profile projectors Series PJ-A3000 -rfm 478 NORGAU Measuring Instruments and Equipment 047 210 Profile Projectors PJ-A3000
