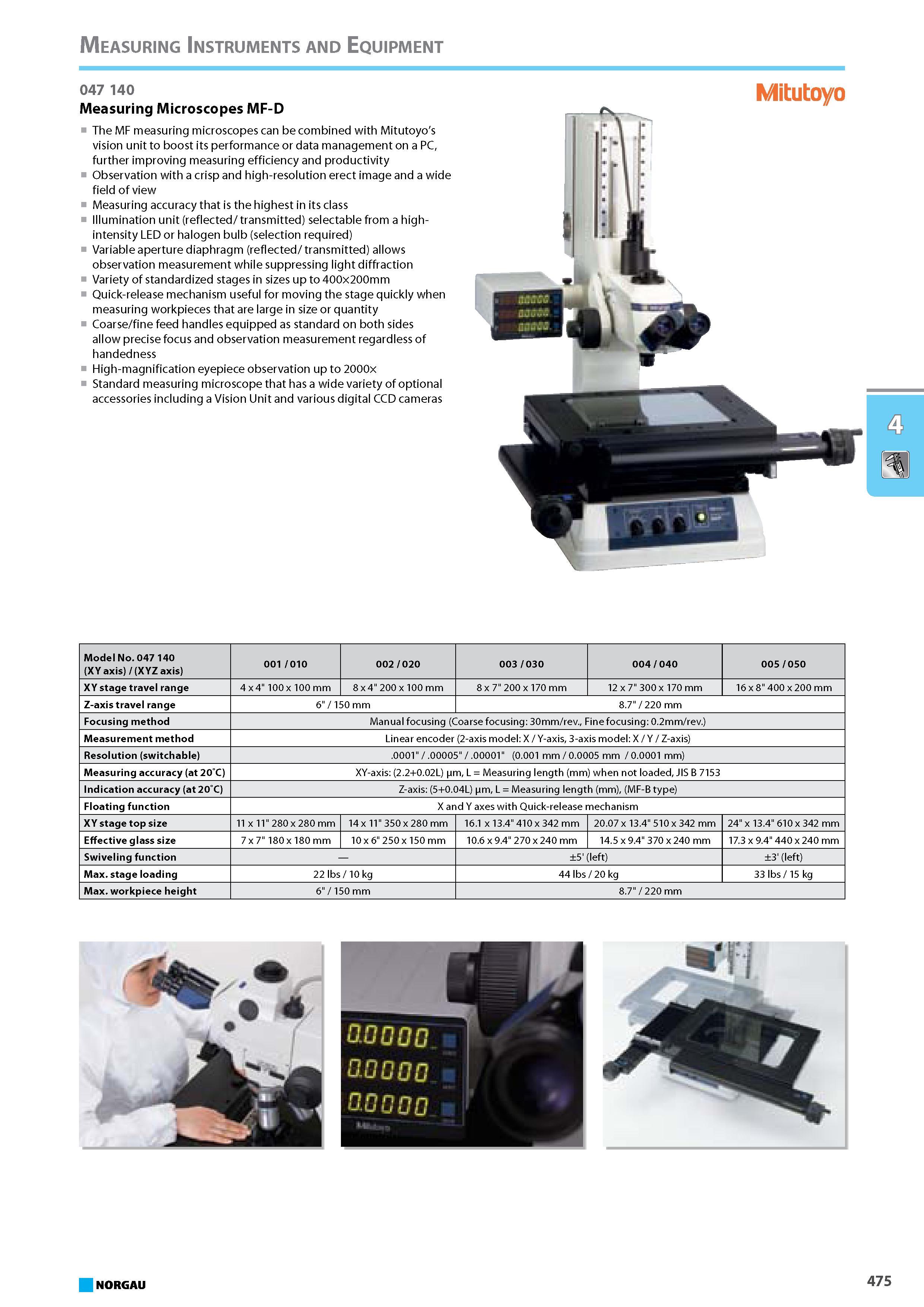

The MF measuring microscopes can be combined with Mitutoyo's vision unit to boost its performance or data management on a PC further improving measuring efficiency and

The MF measuring microscopes can be combined with Mitutoyo's vision unit to boost its performance or data management on a PC further improving measuring efficiency and productivity Observation with a crisp and high-resolution erect image and a wide field of view Measuring accuracy that is the highest in its class Illumination unit (reflected transmitted) selectable from a high-intensity LED or halogen bulb (selection required) Variable aperture diaphragm (reflected transmitted) allows observation measurement while suppressing light diffraction Variety of standardized stages in sizes up to 400x200mm Quick-release mechanism useful for moving the stage quickly when measuring workpieces that are large in size or quantity Coarse fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness High-magnification eyepiece observation up to 2000x Standard measuring microscope that has a wide variety of optional accessories including a Vision Unit and various digital CCD cameras Model No. 047 140 (XY axis) (XYZ axis) 001 010 002 020 003 030 004 040 005 050 XY stage travel range 4 x 4" 100 x 100 mm 8 x 4" 200 x 100 mm 8 x 7" 200 x 170 mm 12 x 7" 300 x 170 mm 16 x 8" 400 x 200 mm Z-axis travel range 6" 150 mm 8.7" 220 mm Focusing method Manual focusing (Coarse focusing 30mm/rev. Fine focusing 0.2mm/rev.) Measurement method Linear encoder (2-axis model X Y-axis 3-axis model X Y Z-axis) Resolution (switchable) .0001" .00005" .00001" (0.001 mm 0.0005 mm 0.0001 mm) Measuring accuracy (at 20C) XY-axis (2.2+0.02L) pm L Measuring length (mm) when not loaded JIS B 7153 Indication accuracy (at 20C) Z-axis (5+0.04L) pm L Measuring length (mm) (MF-B type) Floating function X and Y axes with Quick-release mechanism XY stage top size 11 x 11" 280 x 280 mm 14 x 11" 350 x 280 mm 16.1 x 13.4" 410 x 342 mm 20.07 x 13.4" 510 x 342 mm 24" x 13.4" 610 x 342 mm Effective glass size 7 x 7" 180 x 180 mm 10 x 6" 250 x 150 mm 10.6 x 9.4" 270 x 240 mm 14.5 x 9.4" 370 x 240 mm 17.3 x 9.4" 440 x 240 mm Swiveling function 5' (left) 3' (left) Max. stage loading 22 lbs 10 kg 44 lbs 20 kg 33 lbs 15 kg Max. workpiece height 6" 150 mm 8.7" 220 mm NORGAU 475 Measuring Instruments and Equipment 047 140 Measuring Microscopes MF-D
