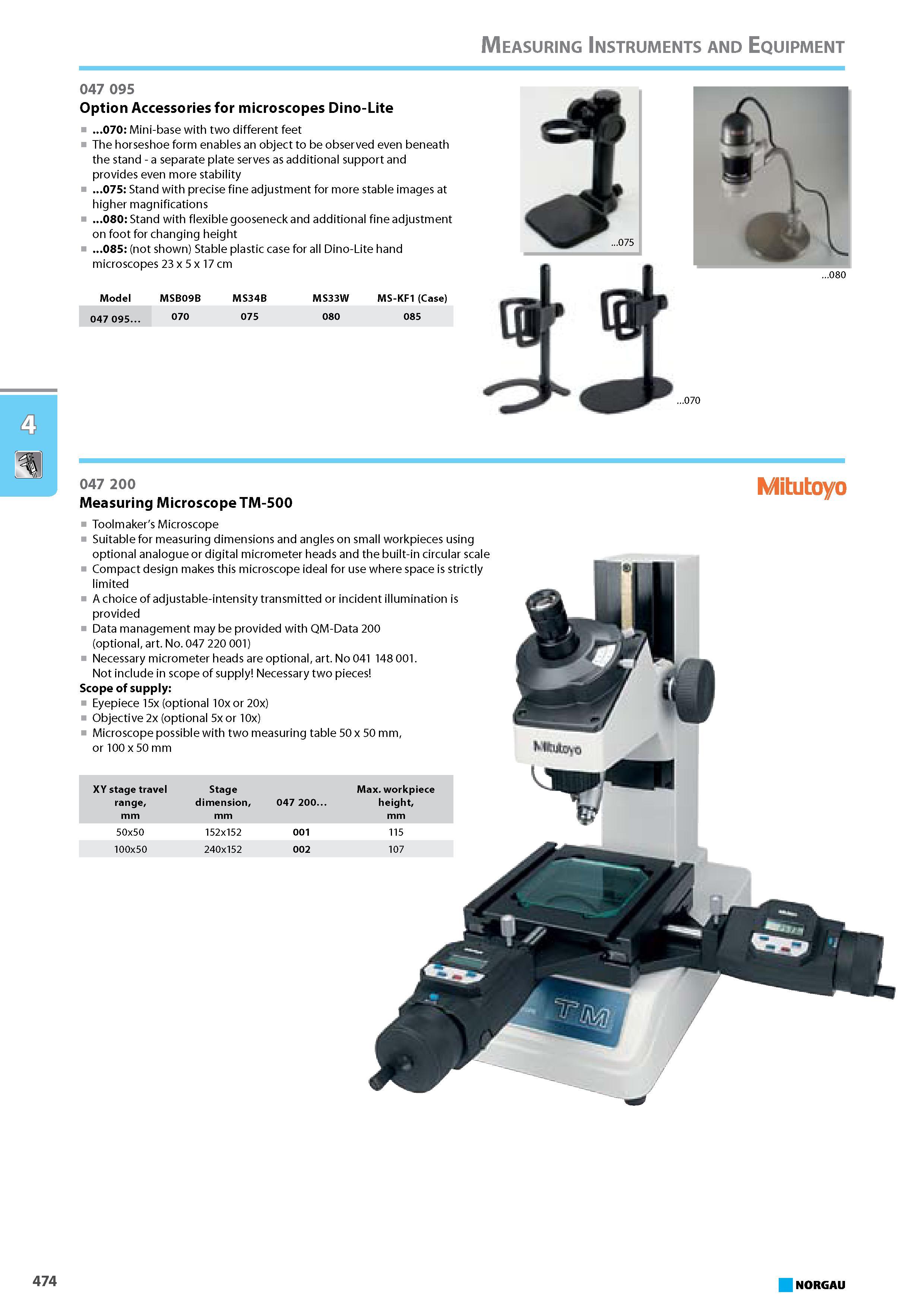

Option Accessories for microscopes Dino-Lite 070 Mini-base with two different feet The horseshoe form enables an object to be observed even beneath the stand - a separ

Option Accessories for microscopes Dino-Lite 070 Mini-base with two different feet The horseshoe form enables an object to be observed even beneath the stand - a separate plate serves as additional support and provides even more stability 075 Stand with precise fine adjustment for more stable images at higher magnifications 080 Stand with flexible gooseneck and additional fine adjustment on foot for changing height 085 (not shown) Stable plastic case for all Dino-Lite hand microscopes 23 x 5 x 17 cm Model 047 095. MSB09B 070 MS34B 075 MS33W 080 MS-KF1 (Case) 085 047 200 Measuring Microscope TM-500 100x50 240x152 002 107 XY stage travel Stage Max. workpiece range dimension 047 200. height mm Toolmaker's Microscope Suitable for measuring dimensions and angles on small workpieces using optional analogue or digital micrometer heads and the built-in circular scale Compact design makes this microscope ideal for use where space is strictly limited A choice of adjustable-intensity transmitted or incident illumination is provided Data management may be provided with QM-Data 200 (optional art. No. 047 220 001) Necessary micrometer heads are optional art. No 041 148 001. Not include in scope of supply Necessary two pieces Scope of supply Eyepiece 15x (optional lOxor 20x) Objective 2x (optional 5xor10x) Microscope possible with two measuring table 50 x 50 mm or 100 x50 mm 50x50 152x152 001 115 NORGAU Measuring Instruments and Equipment 474 047 095
