Grade Cast Iron V-Blocks 0 3 Made of special cast-iron highly wear resistant with cutting angle 90 is parallel to the base and ismetric in pairs. For scribing adjustin

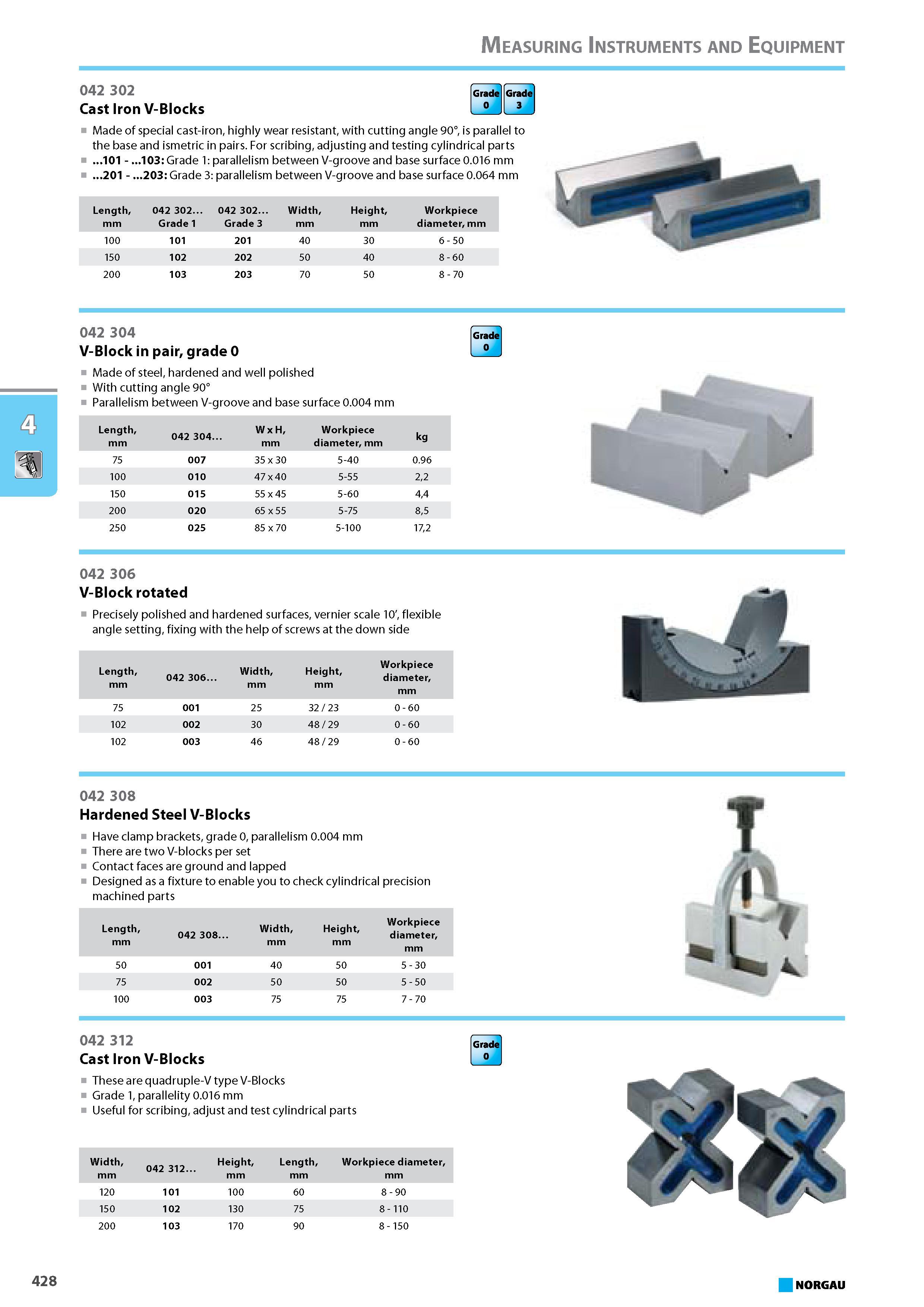

Grade Cast Iron V-Blocks 0 3 Made of special cast-iron highly wear resistant with cutting angle 90 is parallel to the base and ismetric in pairs. For scribing adjusting and testing cylindrical parts 101 - 103 Grade 1 parallelism between V-groove and base surface 0.016 mm 201 - 203 Grade 3 parallelism between V-groove and base surface 0.064 mm Length mm 042 302. Grade 1 042 302. Grade 3 Width mm Height mm Workpiece diameter mm 100 101 201 40 30 6 - 50 150 102 202 50 40 8 - 60 200 103 203 70 50 8 - 70 042 304 V-Block in pair grade 0 Made of steel hardened and well polished Grade 0 With cutting angle 90 Parallelism between V-groove and base surface 0.004 mm Length mm 042 304. W x H mm Workpiece diameter mm kg 75 007 35 x 30 5-40 0.96 100 010 47 x 40 5-55 22 150 015 55 x 45 5-60 44 200 020 65 x 55 5-75 85 250 025 85 x 70 5-100 172 042 306 V-Block rotated Precisely polished and hardened surfaces vernier scale 10' flexible angle setting fixing with the help of screws at the down side Length 042 306. Width Height Workpiece diameter mm 75 001 25 32 23 0 - 60 102 002 30 48 29 0 - 60 102 003 46 48 29 0 - 60 042 308 Hardened Steel V-Blocks Have clamp brackets grade 0 parallelism 0.004 mm There are two V-blocks per set Contact faces are ground and lapped Designed as a fixture to enable you to check cylindrical precision machined parts Length mm 042 308. Width mm Height mm Workpiece diameter mm 50 001 40 50 5 - 30 75 002 50 50 5 - 50 100 003 75 75 7 - 70 042 312 Cast Iron V-Blocks These are quadruple-V type V-Blocks Grade 1 parallelity 0.016 mm Useful for scribing adjust and test cylindrical parts Width mm 042 312. Height mm Length mm Workpiece diameter mm 120 101 100 60 8 - 90 150 102 130 75 8 - 110 200 103 170 90 8 - 150 Grade 0 NORGAU Measuring Instruments and Equipment 428 042 302 Grade
