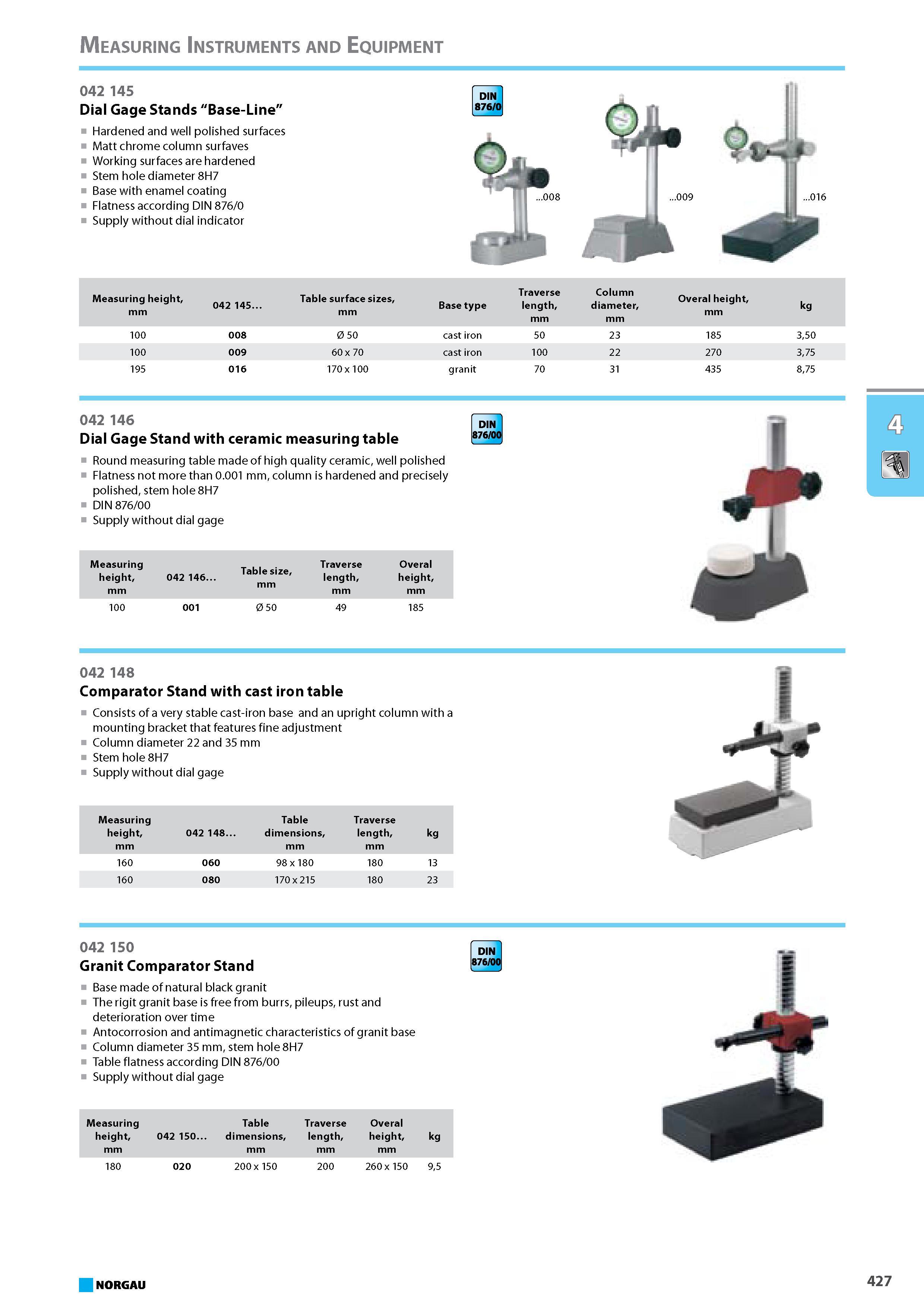

Dial Gage Stands Base-Line Hardened and well polished surfaces Matt chrome column surfaves Working surfaces are hardened Stem hole diameter 8H7 Base with enamel coatin

Dial Gage Stands Base-Line Hardened and well polished surfaces Matt chrome column surfaves Working surfaces are hardened Stem hole diameter 8H7 Base with enamel coating Flatness according DIN 876 0 Supply without dial indicator DIN 876 0 Measuring height mm 042 145. Table surface sizes mm Base type Traverse length mm Column diameter mm Overal height mm kg 100 008 0 50 cast iron 50 23 185 350 100 009 60 x 70 cast iron 100 22 270 375 195 016 170 x 100 granit 70 31 435 875 Round measuring table made of high quality ceramic well polished Flatness not more than 0.001 mm column is hardened and precisely polished stem hole 8H7 DIN 876 00 Supply without dial gage Measuring height 042 146. Table size mm Traverse length Overal height mm 042 146 Dial Gage Stand with ceramic measuring table 876 00 100 001 0 50 49 185 042 148 Comparator Stand with cast iron table Consists of a very stable cast-iron base and an upright column with a mounting bracket that features fine adjustment Column diameter 22 and 35 mm Stem hole 8H7 Supply without dial gage Measuring Table Traverse height 042 148. dimensions length kg mm 160 060 98 x 180 180 13 160 080 170x215 180 23 042 150 Granit Comparator Stand Base made of natural black granit The rigit granit base is free from burrs pileups rust and deterioration over time Antocorrosion and antimagnetic characteristics of granit base Column diameter 35 mm stem hole 8H7 Table flatness according DIN 876 00 Supply without dial gage DIN 876 00 Measuring Table Traverse Overal height 042 150. dimensions length height kg mm 180 020 200 x 150 200 260 x 150 95 NORGAU 427 Measuring Instruments and Equipment 042 145
