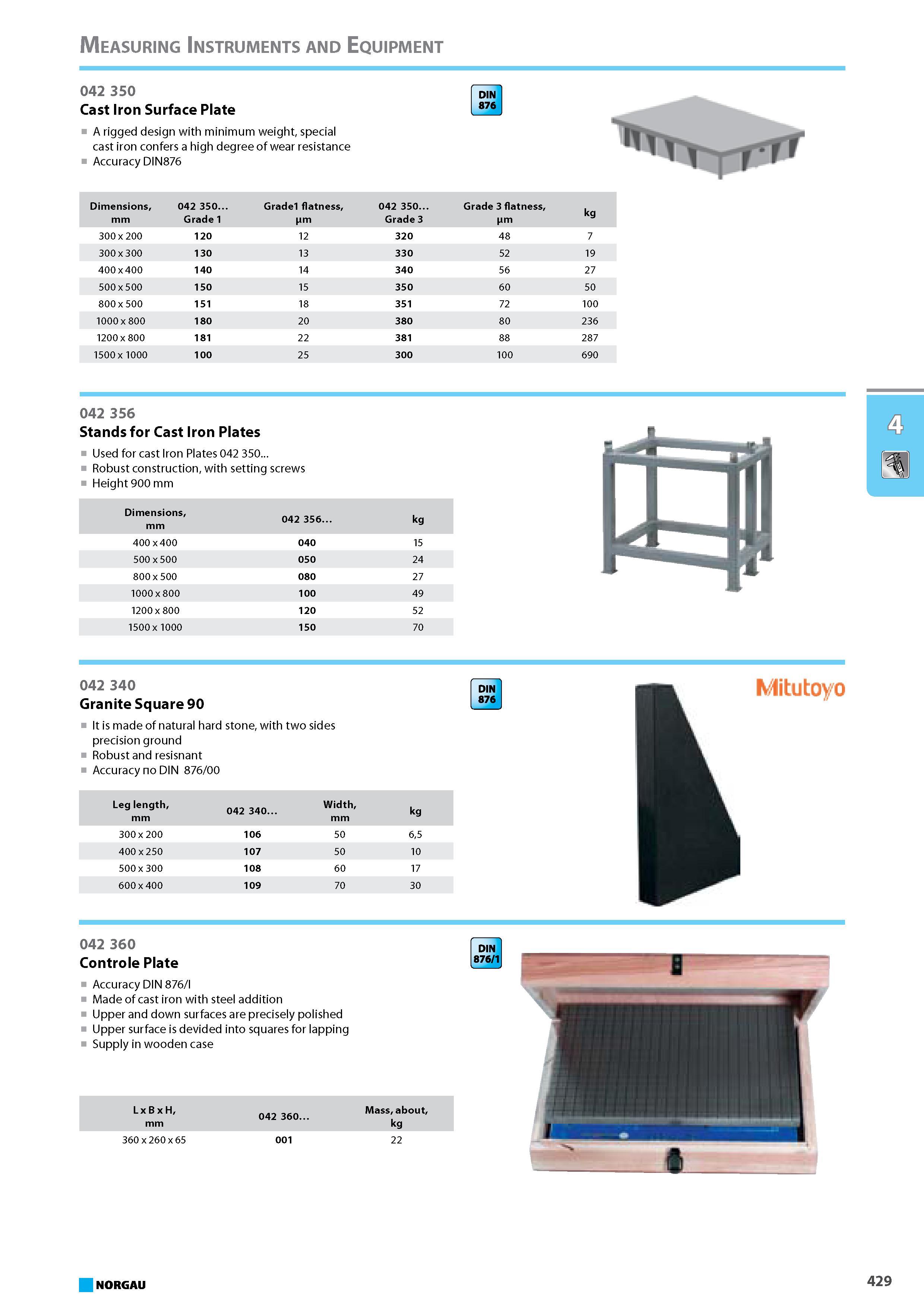

Cast Iron Surface Plate A rigged design with minimum weight special cast iron confers a high degree of wear resistance Accuracy DIN876 Dimensions mm 042 350. Grade 1 G

Cast Iron Surface Plate A rigged design with minimum weight special cast iron confers a high degree of wear resistance Accuracy DIN876 Dimensions mm 042 350. Grade 1 Grade1 flatness pm 042 350. Grade 3 Grade 3 flatness pm kg 300 x 200 120 12 320 48 7 300 x 300 130 13 330 52 19 400 x 400 140 14 340 56 27 500 x 500 150 15 350 60 50 800 x 500 151 18 351 72 100 1000 x 800 180 20 380 80 236 1200 x 800 181 22 381 88 287 1500 x 1000 100 25 300 100 690 042 356 Stands for Cast Iron Plates Used for cast Iron Plates 042 350 Robust construction with setting screws Height 900 mm Dimensions mm 042 356. kg 400 x 400 040 15 500 x 500 050 24 800 x 500 080 27 1000 x 800 100 49 1200 x 800 120 52 1500 x 1000 150 70 042 340 Granite Square 90 It is made of natural hard stone with two sides precision ground Robust and resisnant Accuracy no DIN 876 00 DIN 876 Leg length mm 042 340. Width mm kg 300 x 200 106 50 65 400 x 250 107 50 10 500 x 300 108 60 17 600 x 400 109 70 30 042 360 Controle Plate Accuracy DIN 876 Made of cast iron with steel addition Upper and down surfaces are precisely polished Upper surface is devided into squares for lapping Supply in wooden case L x B x H mm Mass about kg 360 x 260 x 65 001 22 NORGAU 429 Measuring Instruments and Equipment 042 350
