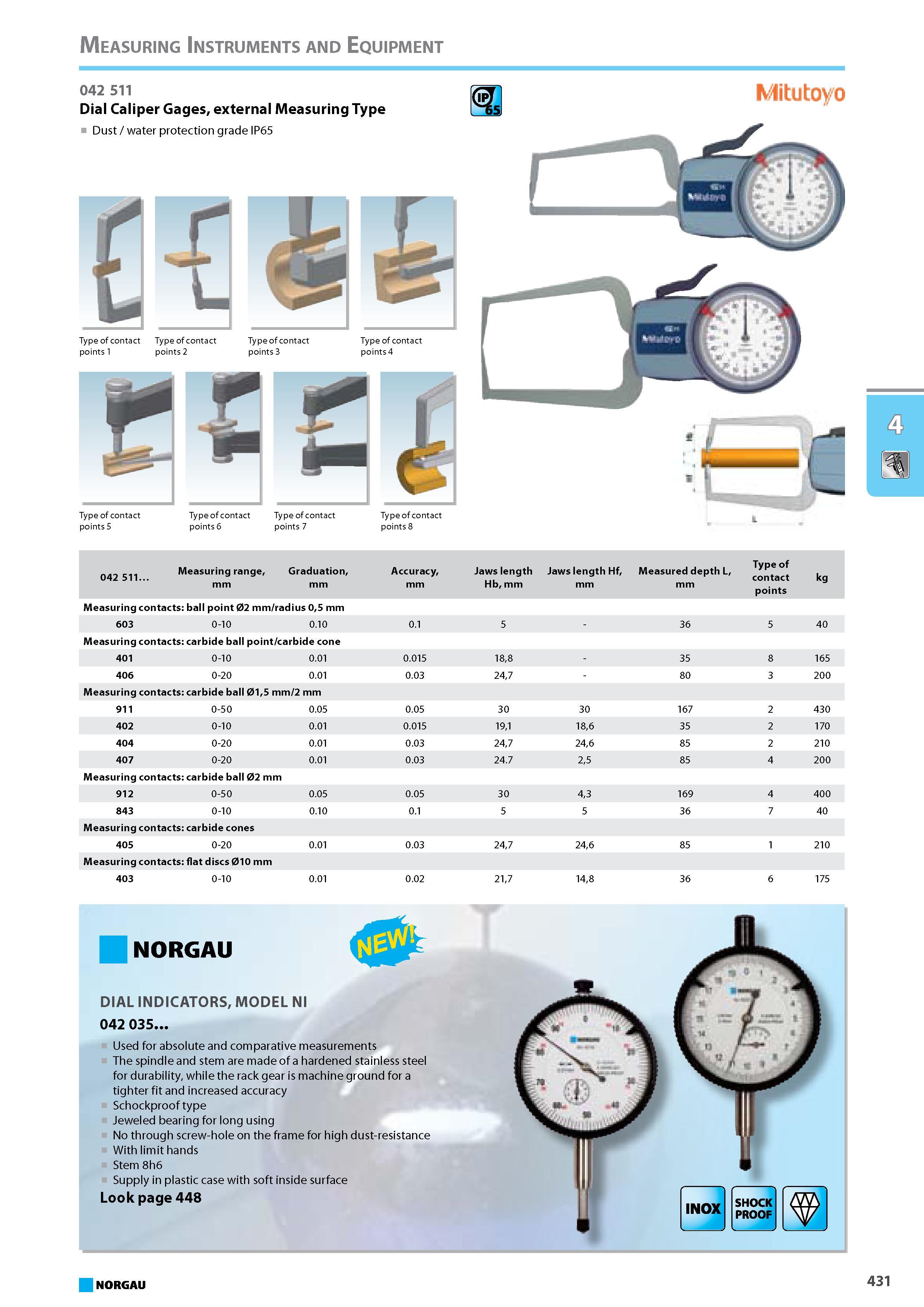

Dial Caliper Gages external Measuring Type Dust water protection grade IP65 c Type of contact points 1 m Type of contact points 7 Type of contact points 8 Type of 042511 Measuring range Graduation Accuracy Jaws length Jaws length Hf Measured depth L cOntact kg mm Hb mm points Measuring contacts ball point 02 mm radius 05 mm 603 0-10 0.10 0.1 5- 36 5 40 Measuring contacts carbide ball point carbide cone 401 0-10 0.01 0.015 188 - 35 8 165 406 0-20 0.01 0.03 247 - 80 3 200 Measuring contacts carbide ball 015 mm 2 mm 911 0-50 0.05 0.05 30 30 167 2 430 402 0-10 0.01 0.015 191 186 35 2 170 404 0-20 0.01 0.03 247 246 85 2 210 407 0-20 0.01 0.03 24.7 25 85 4 200 Measuring contacts carbide ball 02 mm 912 0-50 0.05 0.05 30 43 169 4 400 843 0-10 0.10 0.1 5 5 36 7 40 Measuring contacts carbide cones 405 0-20 0.01 0.03 247 246 85 1 210 Measuring contacts flat discs 010 mm 403 0-10 0.01 0.02 217 148 36 6 175 SHOCK INOX PROOF NORGAU DIAL INDICATORS MODEL NI 042 035 Used for absolute and comparative measurements The spindle and stem are made of a hardened stainless steel for durability while the rack gear is machine ground for a tighter fit and increased accuracy Schockproof type Jeweled bearing for long using No through screw-hole on the frame for high dust-resistance With limit hands Stem 8h6 Supply in plastic case with soft inside surface Look page 448 NORGAU 431 Measuring Instruments and Equipment 042 511
