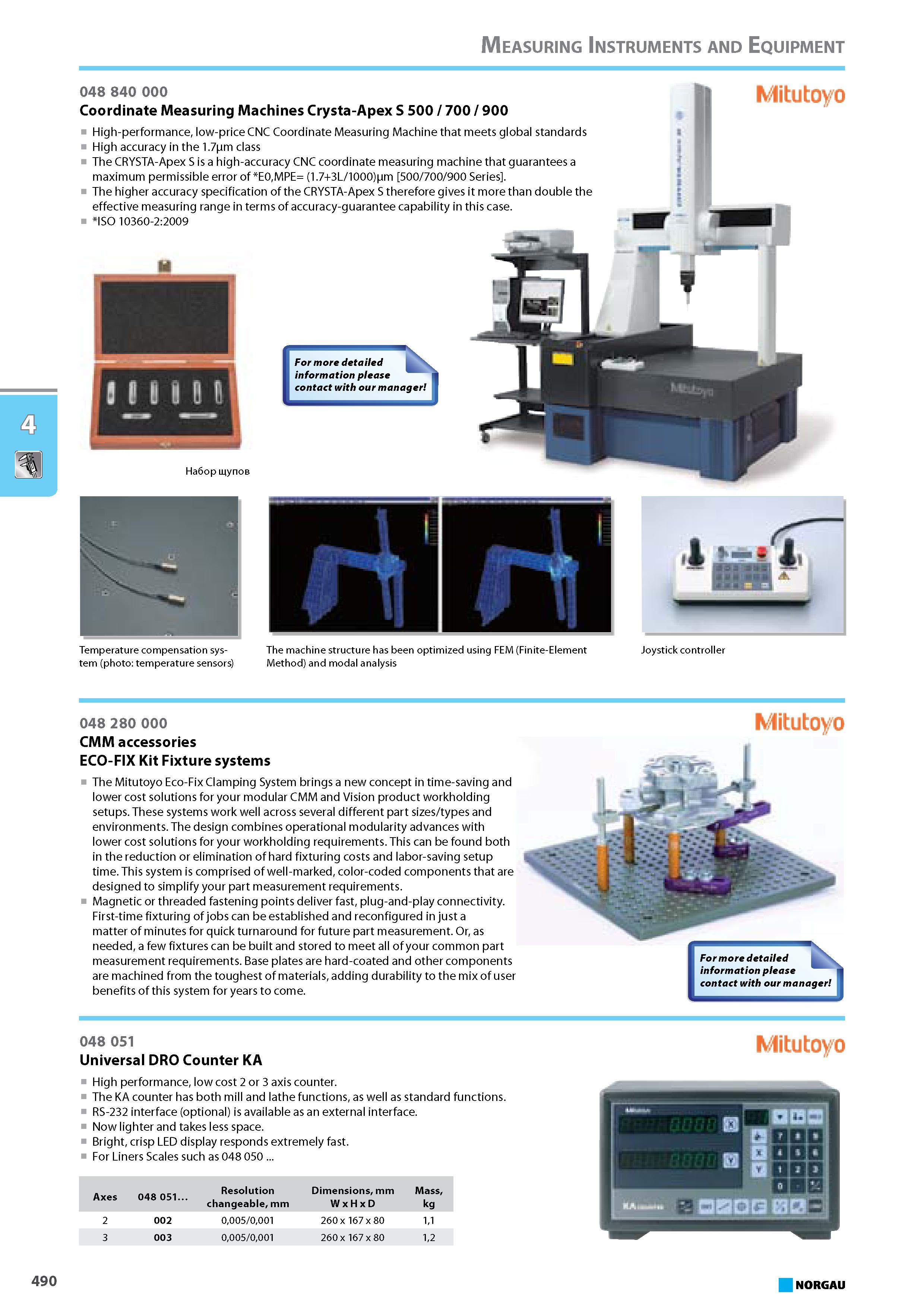

Coordinate Measuring Machines Crysta-Apex S 500 700 900 High-performance low-price CNC Coordinate Measuring Machine that meets global standards High accuracy in the 1.

Coordinate Measuring Machines Crysta-Apex S 500 700 900 High-performance low-price CNC Coordinate Measuring Machine that meets global standards High accuracy in the 1.7pm class The CRYSTA-Apex S is a high-accuracy CNC coordinate measuring machine that guarantees a maximum permissible error of E0MPE (1.7+3L 1000)pm 500 700 900 Series The higher accuracy specification of the CRYSTA-Apex S therefore gives it more than double the effective measuring range in terms of accuracy-guarantee capability in this case. ISO 10360-2 2009 Temperature compensation system (photo temperature sensors) The machine structure has been optimized using FEM (Finite-Element Method) and modal analysis Joystick controller 048 280 000 CMM accessories ECO-FIX Kit Fixture systems The Mitutoyo Eco-Fix Clamping System brings a new concept in time-saving and lower cost solutions for your modular CMM and Vision product workholding setups. These systems work well across several different part sizes types and environments. The design combines operational modularity advances with lower cost solutions for your workholding requirements. This can be found both in the reduction or elimination of hard fixturing costs and labor-saving setup time. This system is comprised of well-marked color-coded components that are designed to simplify your part measurement requirements. Magnetic or threaded fastening points deliver fast plug-and-play connectivity. First-time fixturing of jobs can be established and reconfigured in just a matter of minutes for quick turnaround for future part measurement. Or as needed a few fixtures can be built and stored to meet all of your common part measurement requirements. Base plates are hard-coated and other components are machined from the toughest of materials adding durability to the mix of user benefits of this system for years to come. 048 051 Universal DRO Counter KA High performance low cost 2 or 3 axis counter. The KA counter has both mill and lathe functions as well as standard functions. RS-232 interface (optional) is available as an external interface. Now lighter and takes less space. Bright crisp LED display responds extremely fast. For Liners Scales such as 048 050 Mitutoyo Axes 048 051 Resolution changeable mm Dimensions mm W x H x D Mass kg 2 002 0005 0001 260 x 167 x 80 11 3 003 0005 0001 260 x 167 x 80 12 490 NORGAU Measuring Instruments and Equipment 048 840 000
