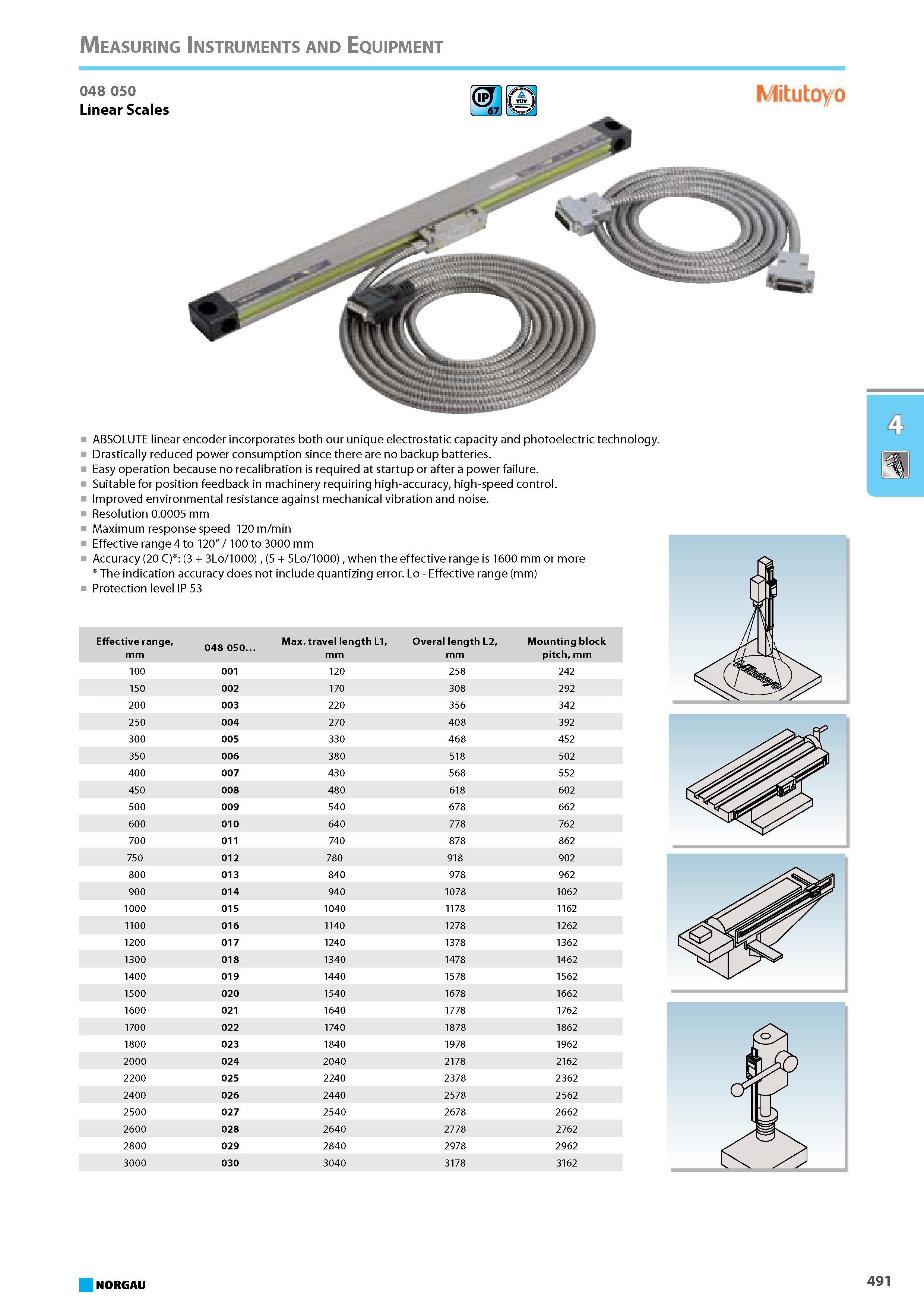

Linear Scales ABSOLUTE linear encoder incorporates both our unique electrostatic capacity and photoelectric technology. Drastically reduced power consumption since there are no backup batteries. Easy operation because no recalibration is required at startup or after a power failure. Suitable for position feedback in machinery requiring high-accuracy high-speed control. Improved environmental resistance against mechanical vibration and noise. Resolution 0.0005 mm Maximum response speed 120 m/min Effective range 4 to 120 100 to 3000 mm Accuracy (20 C) (3 3Lo 1000) (5 5Lo 1000) when the effective range is 1600 mm or more The indication accuracy does not include quantizing error. Lo - Effective range (mm) Protection level IP 53 Effective range mm 048 050. Max. travel length L1 mm Overal length L2 mm Mounting block pitch mm 100 001 120 258 242 150 002 170 308 292 200 003 220 356 342 250 004 270 408 392 300 005 330 468 452 350 006 380 518 502 400 007 430 568 552 450 008 480 618 602 500 009 540 678 662 600 010 640 778 762 700 011 740 878 862 750 012 780 918 902 800 013 840 978 962 900 014 940 1078 1062 1000 015 1040 1178 1162 1100 016 1140 1278 1262 1200 017 1240 1378 1362 1300 018 1340 1478 1462 1400 019 1440 1578 1562 1500 020 1540 1678 1662 1600 021 1640 1778 1762 1700 022 1740 1878 1862 1800 023 1840 1978 1962 2000 024 2040 2178 2162 2200 025 2240 2378 2362 2400 026 2440 2578 2562 2500 027 2540 2678 2662 2600 028 2640 2778 2762 2800 029 2840 2978 2962 3000 030 3040 3178 3162 491 Measuring Instruments and Equipment 048 050
